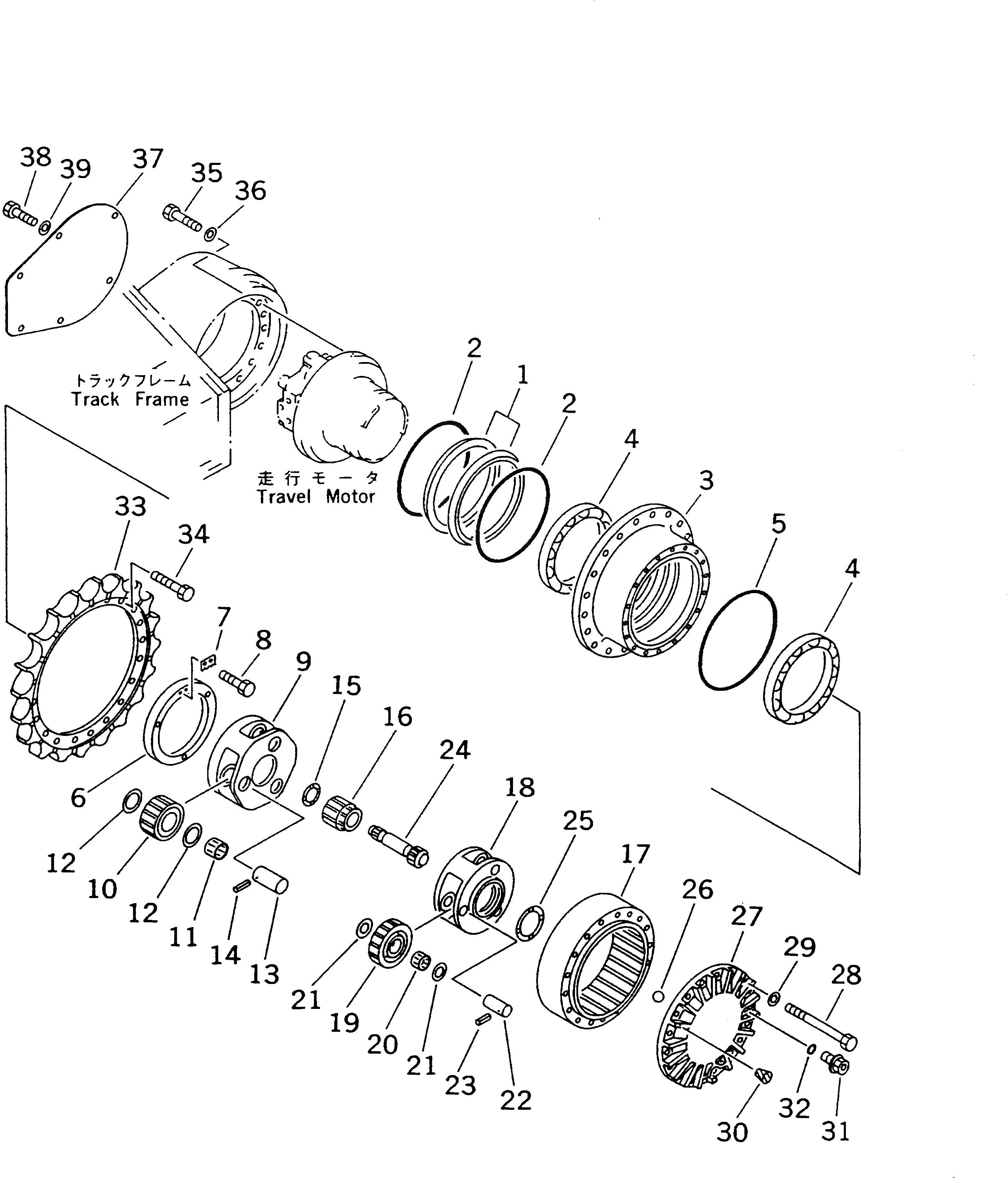

Запчасти Komatsu PC200-6 КОНЕЧНАЯ ПЕРЕДАЧА (СКОРОСТЬ ДВИЖЕНИЯ 3)(№8-98) НИЖНЯЯ ГИДРОЛИНИЯ И ЛИНИЯ ХОДА

|$4

150-27-00029

FLOATING SEAL ASS'Y

|$5

150-27-00028

FLOATING SEAL ASS'Y

1

RING

1

RING

2

O-RING

3

20Y-27-21120

HUB

4

20Y-27-11570

BEARING

5

20Y-27-21350

O-RING

6

20Y-27-21330

LOCK

7

20Y-27-21341

LOCK

8

01010-51020

BOLT

9

20Y-27-21153

CARRIER

9

20Y-27-21152

CARRIER

10

20Y-27-21210

GEAR

11

20Y-27-21270

BEARING

12

20Y-27-21250

WASHER

13

20Y-27-21230

PIN

14

20Y-27-21290

PIN

15

20Y-27-13310

WASHER

16

20Y-27-21190

GEAR

17

20Y-27-21180

GEAR

18

20Y-27-21140

CARRIER

19

20Y-27-21170

GEAR

20

20Y-27-21260

BEARING

21

20Y-27-21240

WASHER

22

20Y-27-21220

PIN

23

20Y-27-21280

PIN

24

20Y-27-21161

SHAFT

25

20Y-27-21310

WASHER

26

04260-01905

BALL

27

20Y-27-21110

COVER

28

20Y-27-21360

BOLT

29

01643-31645

WASHER

30

07049-01215

PLUG

31

07044-12412

PLUG

32

07002-02434

O-RING

33

20Y-27-11581

SPROCKET

34

20Y-27-11561

BOLT

35

01010-51670

BOLT

36

01643-31645

WASHER

37

20Y-30-21180

COVER

37

20Y-30-11420

COVER

38

01010-51230

BOLT

39

01643-31232

WASHER
