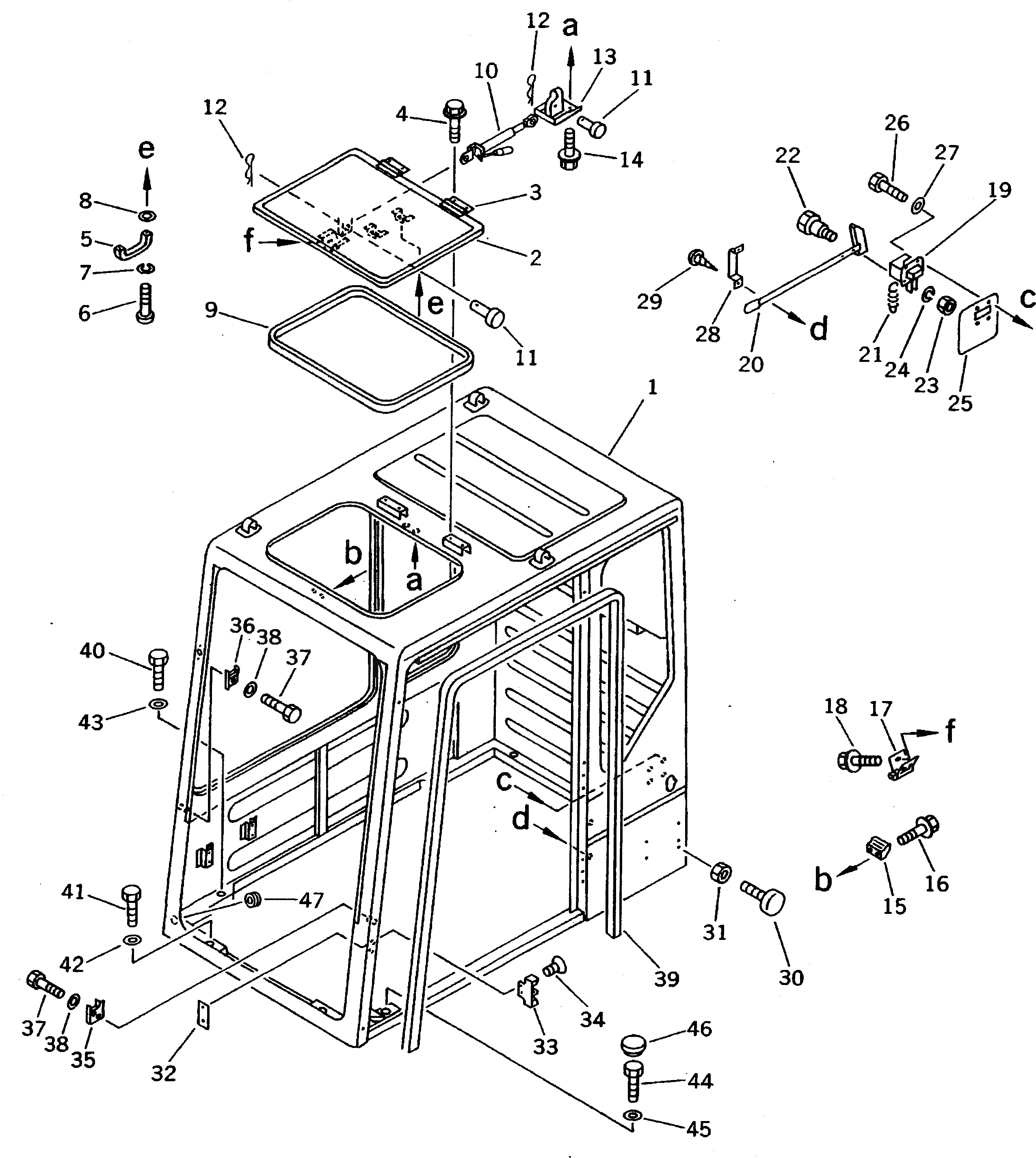

Запчасти Komatsu PC200-5X КАБИНА (/7) (КАБИНА) ЧАСТИ КОРПУСА

G-1

20Y-54-X1660

OPERATOR'S CAB GROUP

|1

20Y-54-00111

OPERATOR'S CAB ASS'Y

|1

20Y-54-00110

OPERATOR'S CAB ASS'Y

1

CAB

|1

CAB

2

20Y-54-17920

COVER

3

20Y-54-11282

HINGE

4

01435-00616

BOLT

5

20Y-54-14590

HANDLE

6

01220-40610

SCREW

7

01602-20619

WASHER,SPRING

8

01641-20608

WASHER

9

20Y-54-14630

SEAL

10

20Y-54-18760

GAS SPRING ASS'Y

11

04205-10825

PIN

12

04052-10833

PIN,SNAP

13

20Y-54-17930

BRACKET

14

20Y-54-14370

BOLT

15

20Y-54-17960

BRACKET

16

20Y-54-14370

BOLT

17

20Y-54-14321

LOCK ASS'Y

18

20Y-54-14370

BOLT

|19

20Y-54-11890

LOCK ASS'Y

19

20Y-54-13530

LOCK

20

20Y-54-13540

LEVER

21

20Y-54-13550

SPRING

22

20Y-54-13560

PIN

23

01580-10605

NUT

24

01602-20619

WASHER,SPRING

25

20Y-54-17860

PLATE

26

01010-50825

BOLT

27

01643-30823

WASHER

28

20Y-54-17850

BRACKET

29

01370-00412

SCREW

30

20Y-54-11611

STOPPER

31

01580-11008

NUT

32

20Y-54-11750

SEAT

33

205-54-71731

STRIKER

34

20Y-54-11740

SCREW

35

20Y-54-17870

BRACKET,L.H.

36

20Y-54-17880

BRACKET,R.H.

37

195-54-43260

BOLT

38

01643-70823

WASHER

39

205-54-71560

TRIM

40

01010-51255

BOLT

41

20Y-54-14890

BOLT

42

01643-71232

WASHER

43

01643-31232

WASHER

44

01010-51225

BOLT

45

01643-31232

WASHER

46

20Y-54-13480

PLUG

47

20Y-54-18980

GROMMET
