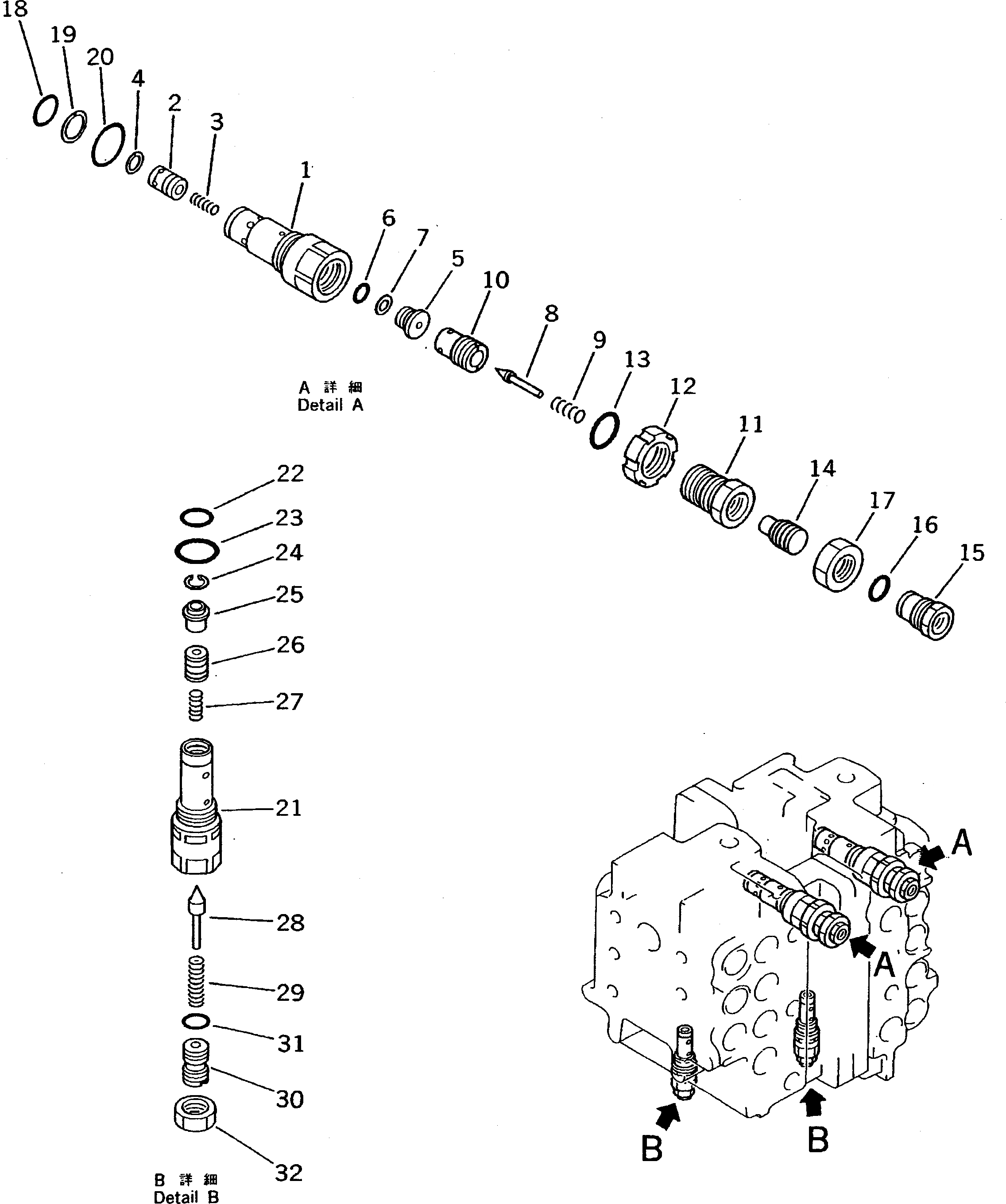

Запчасти Komatsu PC200-5X ГИДРАВЛ УПРАВЛЯЮЩ. КЛАПАН (/7) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

709-79-22303

CONTROL VALVE ASS'Y

|1

709-79-22302

CONTROL VALVE ASS'Y

|1

709-79-22301

CONTROL VALVE ASS'Y

|1

709-79-22203

CONTROL VALVE ASS'Y

|1

709-79-22202

CONTROL VALVE ASS'Y

|1

709-70-51401

VALVE ASS'Y

1

SLEEVE

2

VALVE

3

700-80-51390

SPRING

4

700-80-51350

RING,SNAP

5

SEAT

6

O-RING

7

RING,BACK-UP

8

700-80-61190

POPPET

9

709-20-51231

SPRING

10

SLEEVE

11

HOLDER

12

01530-03010

NUT

13

07002-03034

O-RING

14

RETAINER

15

709-70-51150

PLUG

16

07000-02018

O-RING

17

07239-12410

NUT

18

700-13-31161

O-RING

19

700-80-51190

RING,BACK-UP

20

07002-03334

O-RING

|21

709-70-55200

VALVE ASS'Y

21

SLEEVE

22

700-22-11410

O-RING

23

07002-02434

O-RING

24

700-20-51550

RING,SNAP

25

700-20-51540

RETAINER

26

VALVE

27

709-70-51210

SPRING

28

709-70-51420

POPPET

29

700-20-51620

SPRING

30

700-20-51340

SCREW

31

07000-02011

O-RING

32

01582-11411

NUT
