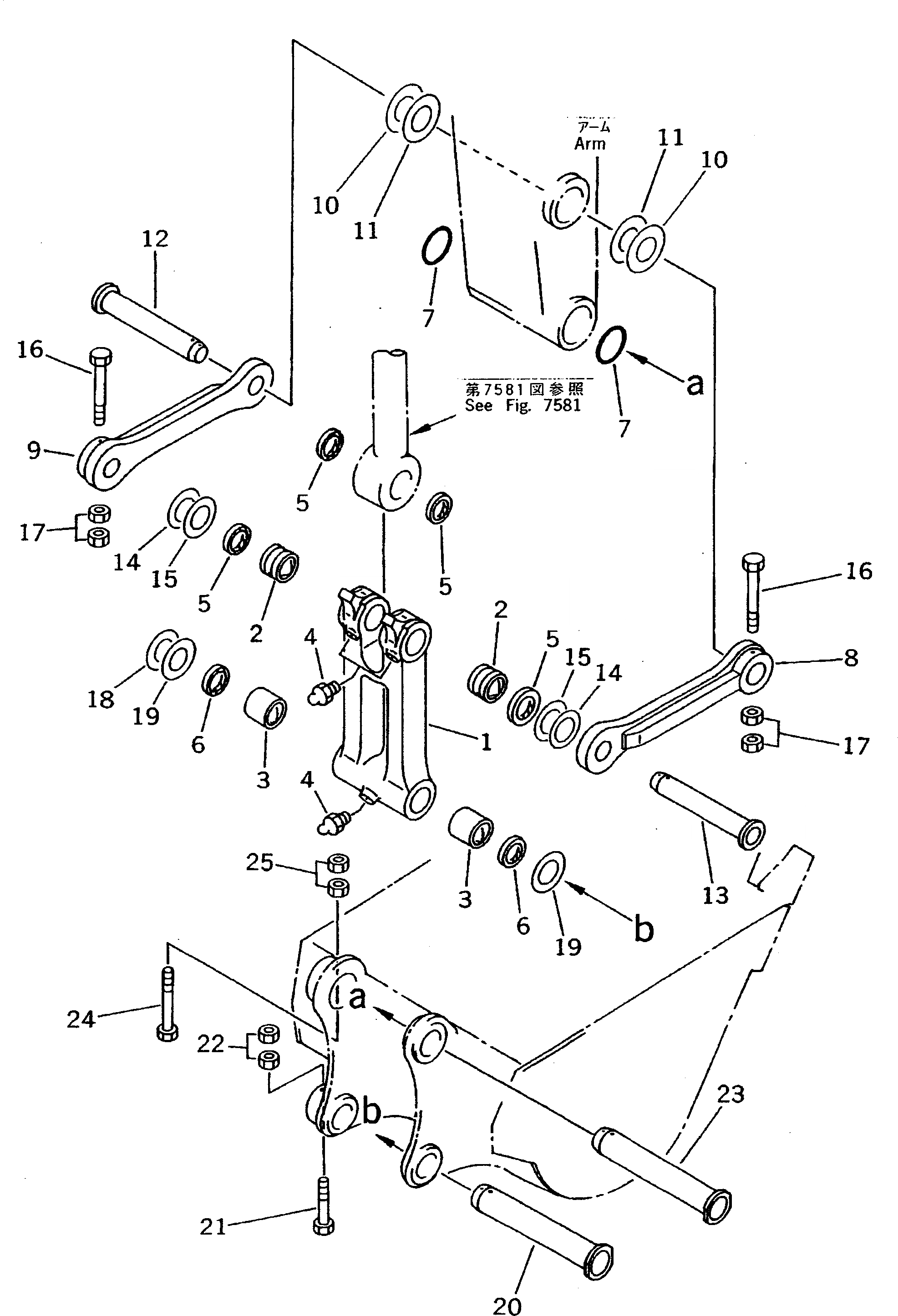

Запчасти Komatsu PC200-5T СОЕДИНИТЕЛЬН. ЗВЕНО (УСИЛ.) РАБОЧЕЕ ОБОРУДОВАНИЕ (ЭКСКАВАТ.)

G-1

20Y-973-X151

LINK GROUP

|$2

20Y-973-0010

LINK ASS'Y

1

LINK

2

206-70-53150

BUSHING

3

205-70-67150

BUSHING

4

07020-00000

FITTING,GREASE

5

205-70-62140

SEAL

6

205-70-62140

SEAL

7

205-70-73280

O-RING

8

20Y-973-1281

LINK

9

20Y-973-1291

LINK

10

20Y-70-11320

SPACER, 0.8MM

11

20Y-70-11330

SPACER, 1.5MM

12

205-70-73160

PIN

13

20Y-973-1270

PIN

14

20Y-70-11340

SPACER, 0.8MM

15

205-70-51530

SPACER, 1.5MM

16

205-70-73190

BOLT

17

01580-12016

NUT

18

20Y-70-11340

SPACER, 0.8MM

19

205-70-51530

SPACER, 1.5MM

20

205-70-73270

PIN

21

205-70-73190

BOLT

22

01580-12016

NUT

23

205-70-73270

PIN

24

362-46-11210

BOLT

25

01580-12016

NUT
