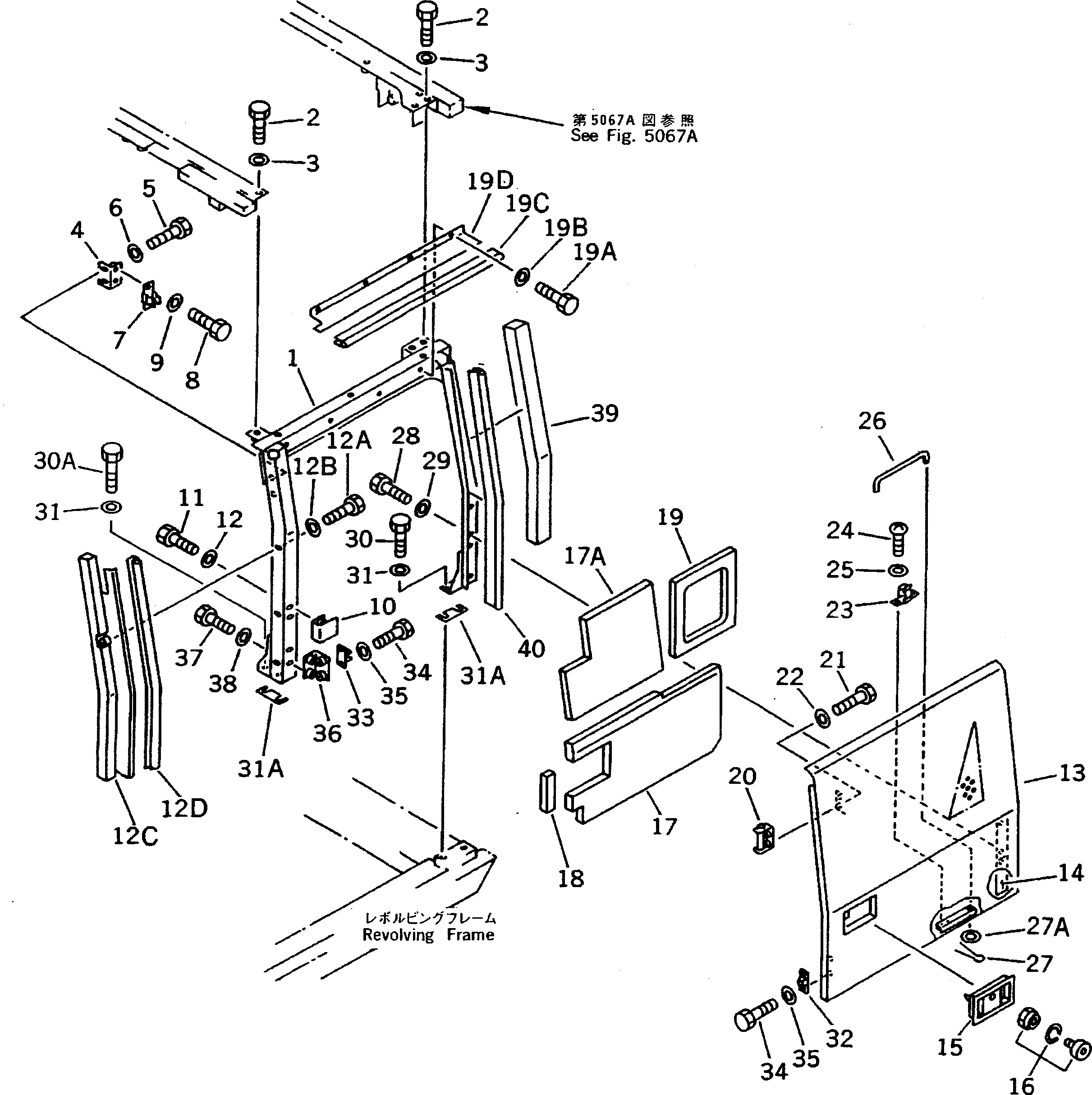

Запчасти Komatsu PC200-5S ЛЕВ. COVER(№79-) ЧАСТИ КОРПУСА

1

20Y-54-21990

FRAME

2

01010-51230

BOLT

3

01643-31232

WASHER

4

20Y-54-12941

PLATE

5

01010-51225

BOLT

6

01643-31232

WASHER

7

20Y-54-12920

CLAMP

8

01010-51020

BOLT

9

01643-31032

WASHER

10

20Y-54-12380

PLATE

11

01010-51025

BOLT

12

01643-31032

WASHER

12A

01010-51020

BOLT

12B

01643-31032

WASHER

12C

20Y-54-21610

BRACKET

12D

20Y-54-22240

SEAL

13

20Y-54-22350

DOOR

14

20Y-54-12750

HINGE (WELDED)

15

421-54-11372

LOCK ASS'Y (WELDED)

16

421-54-11381

LOCK

17

20Y-54-22410

SHEET

17A

20Y-54-22390

SHEET

18

20Y-54-12760

SEAL

19

20Y-54-16190

SEAL

19A

01010-50616

BOLT

19B

01643-30623

WASHER

19C

20Y-54-22260

SEAL

19D

20Y-54-22150

BRACKET

20

207-54-31870

BRACKET

21

01010-51020

BOLT

22

01643-31032

WASHER

23

20B-54-12210

SPRING

24

01220-40408

SCREW

25

01641-20405

WASHER

26

205-54-64140

BAR

27

04050-13018

PIN,COTTER

27A

01641-21016

WASHER

28

01010-51225

BOLT

29

01643-31232

WASHER

30

01010-51230

BOLT

30A

01010-51240

BOLT

31

01643-31232

WASHER

31A

20Y-54-12690

PLATE¤ 1.0MM

32

205-54-53550

DOVE TAIL

33

205-54-51970

DOVE TAIL

34

01010-50616

BOLT

35

01643-30623

WASHER

36

20Y-54-12980

BRACKET

37

01010-51025

BOLT

38

01643-31032

WASHER

39

20Y-54-21710

SHEET

40

20Y-54-22230

SEAL
