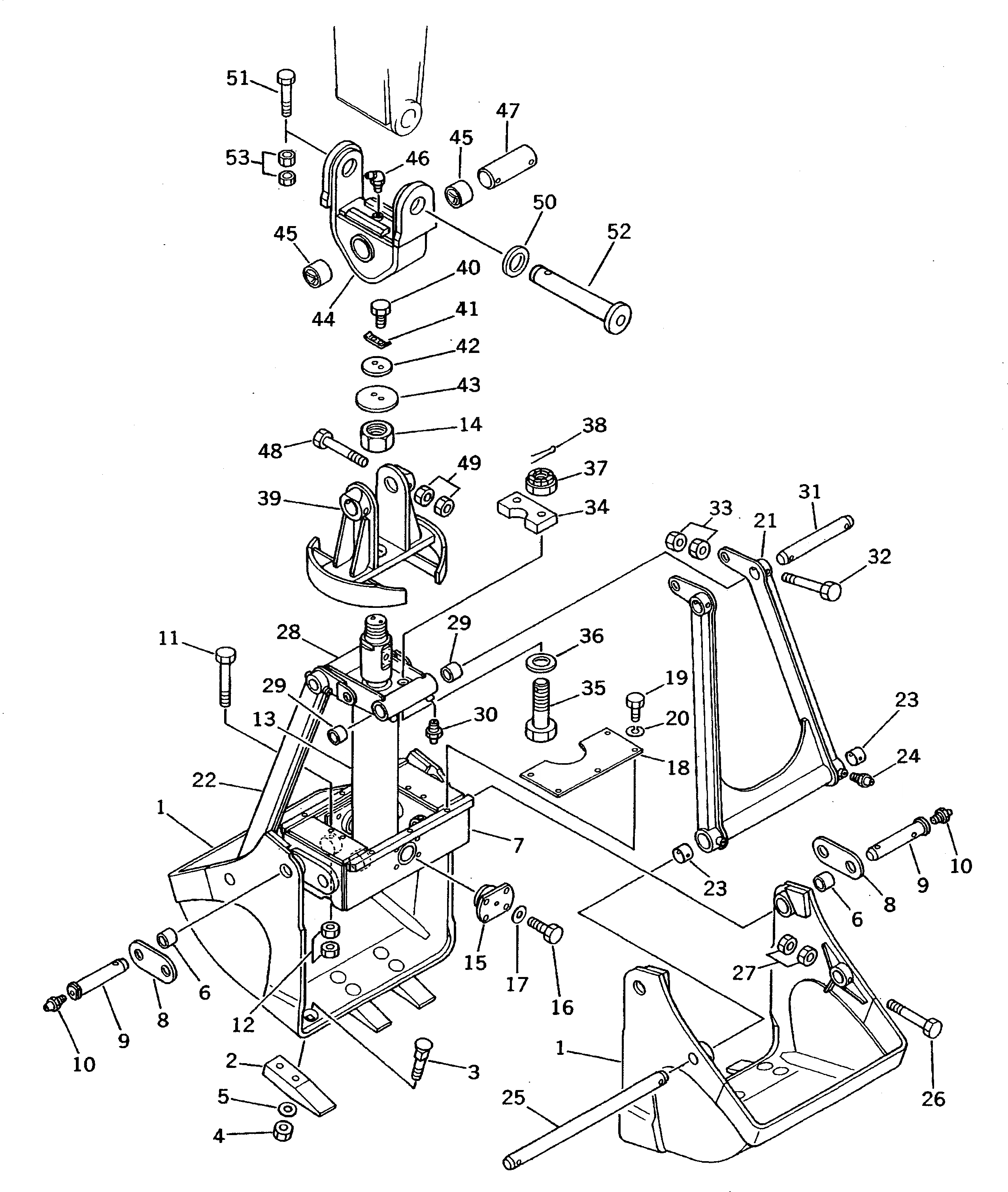

Запчасти Komatsu PC200-5C ГРЕЙФЕРН. КОВШ¤ .M¤ ПОГРУЗ.ING ТИП РАБОЧЕЕ ОБОРУДОВАНИЕ (ЭКСКАВАТ.)

G-1

20Y-931-X101

CLAMSHELL GROUP

|$$2

====================

1

205-931-1161

SHELL,CLAMSHELL

2

202-931-1180

TOOTH

3

02090-11285

BOLT

4

02290-11219

NUT

5

01643-32060

WASHER

6

07143-10505

BUSHING

7

205-931-1230

FRAME

8

205-931-1240

PLATE

9

205-931-1250

PIN

10

07020-00000

FITTING,GREASE

11

01011-31610

BOLT

12

01580-01613

NUT

13

205-63-94100

CYLINDER ASS'Y

14

205-931-2140

NUT

15

205-931-1260

CAP

16

01010-31450

BOLT

17

01643-31445

WASHER

18

205-931-1270

COVER

19

01010-31020

BOLT

20

01602-01030

WASHER,SPRING

21

205-931-1192

ARM

22

205-931-1212

ARM

23

07144-10505

BUSHING

24

07020-00000

FITTING,GREASE

25

205-931-1220

PIN

26

01011-31630

BOLT

27

01580-01613

NUT

28

205-931-1281

FRAME

29

07144-10505

BUSHING

30

07020-00000

FITTING,GREASE

31

205-931-1290

PIN

32

01011-31610

BOLT

33

01580-01613

NUT

34

205-931-1310

PLATE

35

01013-63010

BOLT

36

01643-33080

WASHER

37

01590-03033

NUT

38

04050-06055

PIN,COTTER

39

205-931-1122

HANGER

40

01010-31230

BOLT

41

04081-06012

LOCK

42

205-931-1330

HOLDER

43

205-931-1320

PLATE

44

205-931-6110

BRACKET

45

205-931-6150

BUSHING

46

07020-00675

FITTING,GREASE

47

205-931-1130

PIN

48

01011-31650

BOLT

49

01580-01613

NUT

50

205-70-74410

COLLAR

51

205-70-73190

BOLT

52

205-70-73270

PIN

53

01580-12016

NUT

|$$56

====================
