Артикул
Название
Примечание
Количество
|$0
709-79-24102
CONTROL VALVE ASS'Y
|$$2

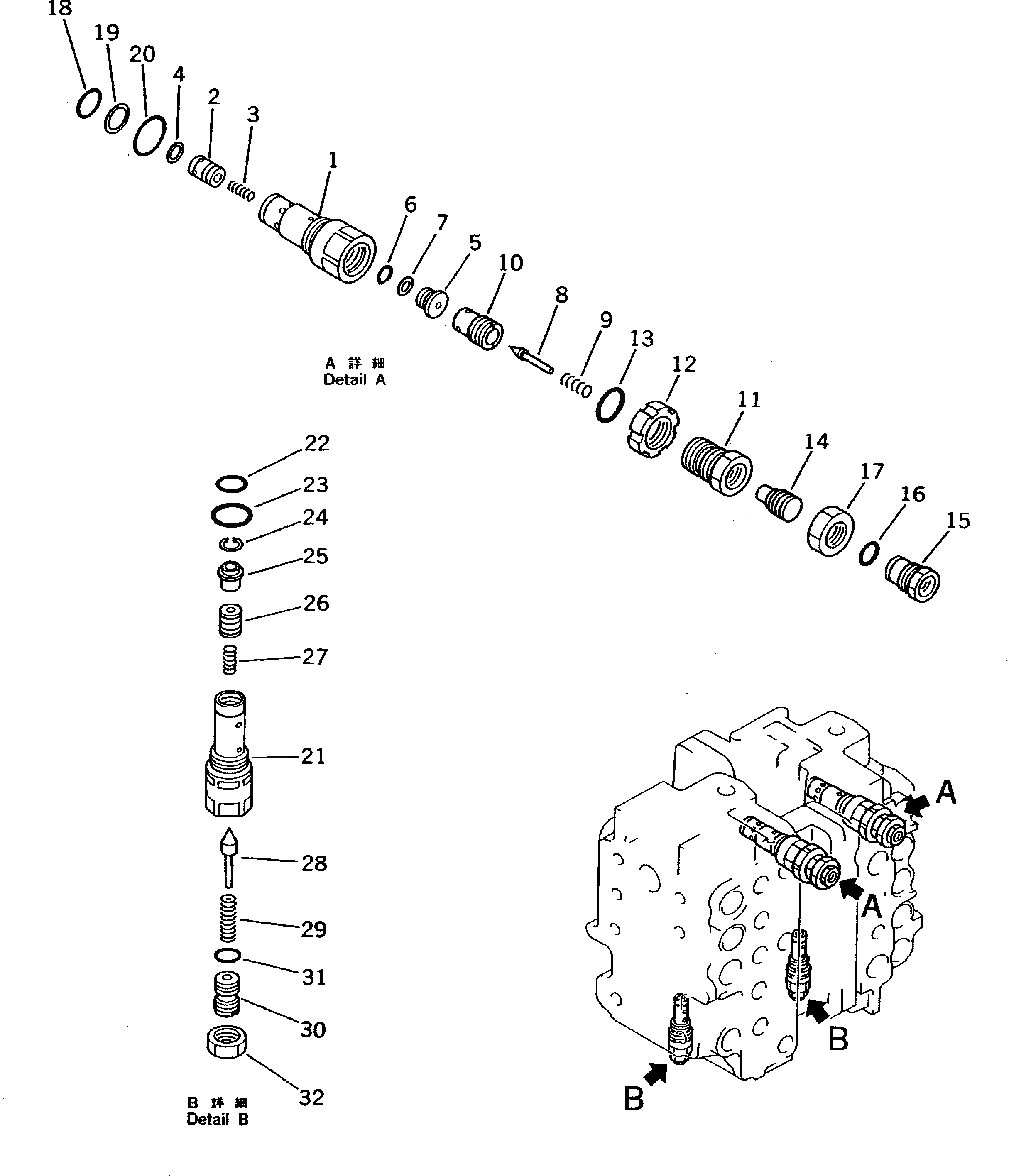

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.6211 TO 6217.
|$2
709-70-51401
VALVE ASS'Y
1
SLEEVE
2
VALVE
3
700-80-51390
SPRING
4
700-80-51350
RING,SNAP
5
SEAT
6
O-RING
7
RING,BACK-UP
8
700-80-61190
POPPET
9
709-20-51231
SPRING
10
SLEEVE
11
HOLDER
12
01530-03010
NUT
13
07002-03034
O-RING
14
RETAINER
15
709-70-51150
PLUG
16
07000-02018
O-RING
17
07239-12410
NUT
18
700-13-31161
O-RING
19
700-80-51190
RING,BACK-UP
20
07002-03334
O-RING
|$23
709-70-55200
VALVE ASS'Y
21
SLEEVE
22
700-22-11410
O-RING
23
07002-02434
O-RING
24
700-20-51550
RING,SNAP
25
700-20-51540
RETAINER
26
VALVE
27
709-70-51210
SPRING
28
709-70-51420
POPPET
29
700-20-51620
SPRING
30
700-20-51340
SCREW
31
07000-02011
O-RING
32
01582-11411
NUT
Выбрано товаров: 36
