Артикул
Название
Примечание
Количество
|$0
709-79-24102
CONTROL VALVE ASS'Y
|$$2

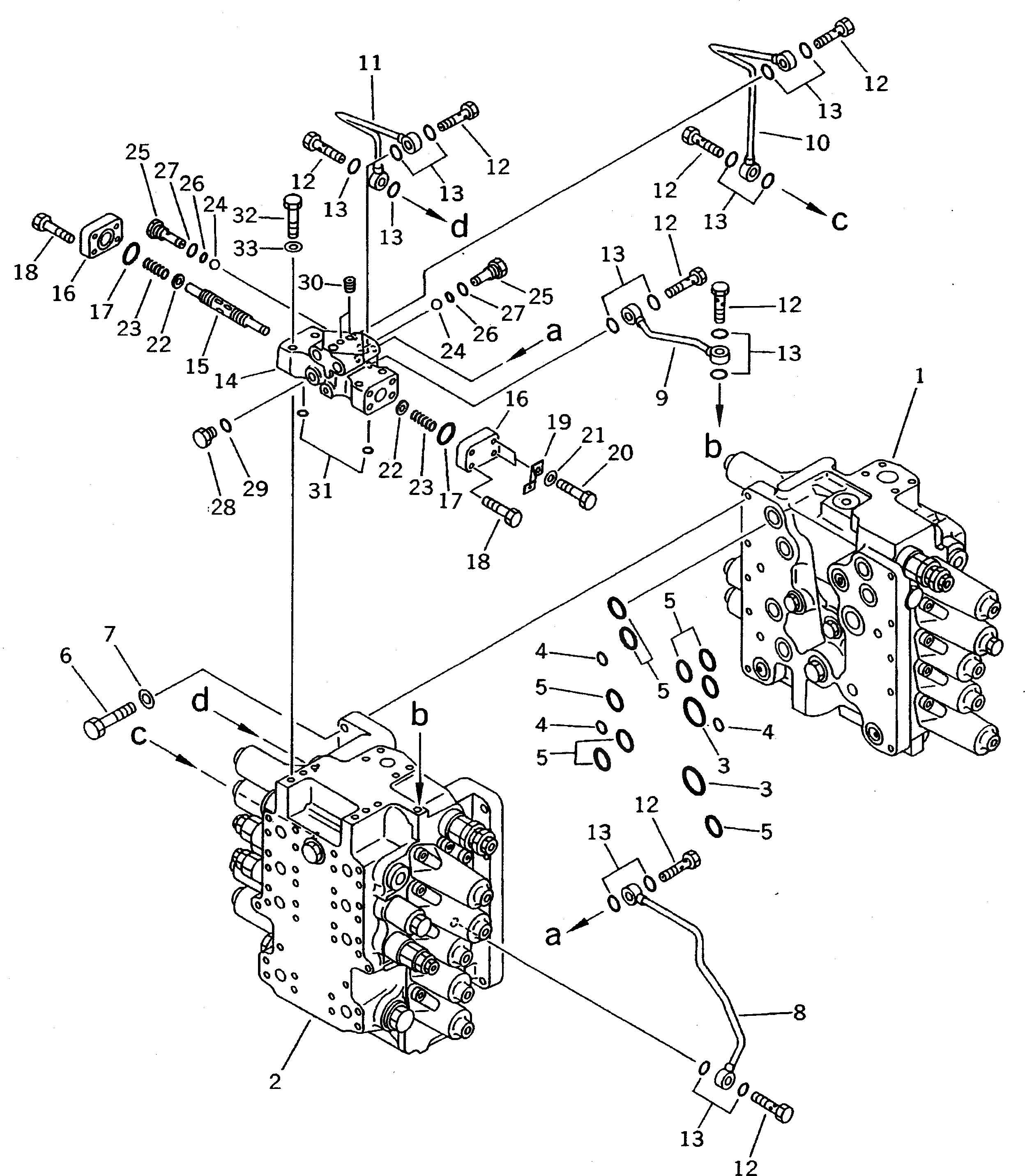

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.6211 TO 6217.
1
709-75-92600
VALVE ASS'Y
2
709-75-94102
VALVE ASS'Y
3
07000-13038
O-RING
4
07000-02010
O-RING
5
07000-13028
O-RING
6
01010-51040
BOLT
7
01643-31032
WASHER
8
709-79-11132
TUBE
9
709-79-11112
TUBE
10
709-79-11143
TUBE
11
709-79-11122
TUBE
12
709-79-11190
BOLT
13
07000-02011
O-RING
|$15
709-70-91800
SHUTTLE VALVE ASS'Y
14
BODY
15
SPOOL
16
709-70-91150
PLATE
17
07000-13025
O-RING
18
01010-50825
BOLT
19
08053-01512
CLIP
20
01010-50830
BOLT
21
01643-30823
WASHER
22
706-73-77140
PLATE
23
709-70-91130
SPRING
24
04260-00952
BALL
25
709-70-91220
PLUG
26
07000-01007
O-RING
27
07002-01423
O-RING
28
07040-11409
PLUG
29
07002-01423
O-RING
30
07043-70108
PLUG
31
07000-11009
O-RING
32
01010-50855
BOLT
33
01643-30823
WASHER
Выбрано товаров: 36
