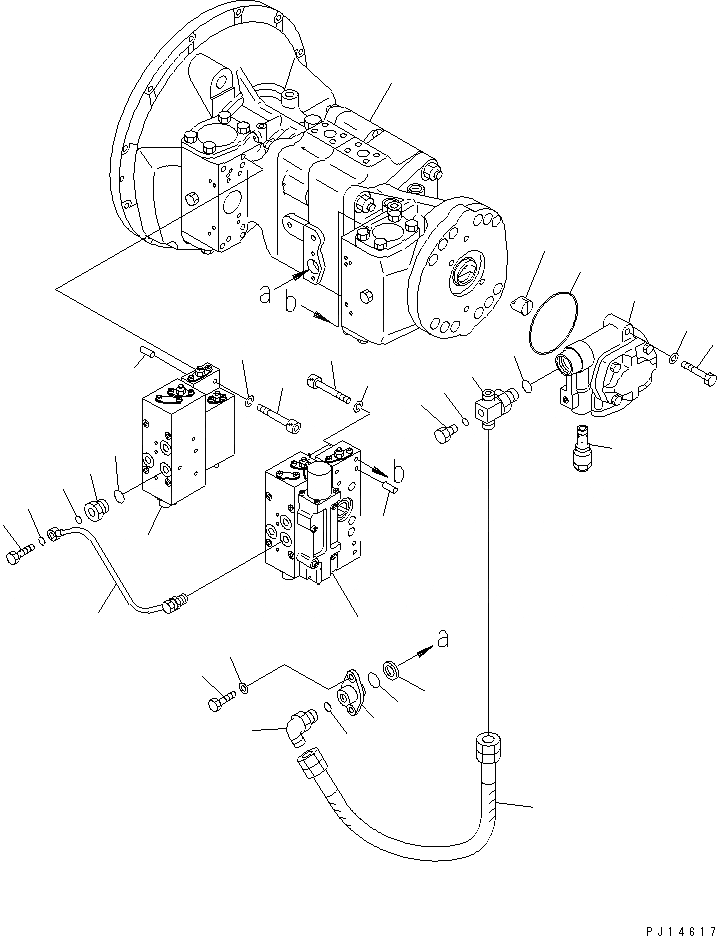

Запчасти Komatsu PC200-5C ГИДР. НАСОС. (/) (БЛОК) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

G-1

20Y-60-X1261

PUMP GROUP

|$$2

====================

|$2

708-25-04051

PUMP ASS'Y

|$3

708-25-04014

PUMP ASS'Y

|$4

708-25-04013

PUMP ASS'Y

|$5

708-25-04012

PUMP ASS'Y

|$$7

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.6101 TO 6151.

1

708-25-04151

PUMP SUB ASS'Y

1

708-25-04112

PUMP SUB ASS'Y

1

708-25-04111

PUMP SUB ASS'Y

2

704-24-28230

PUMP ASS'Y

3

708-25-04311

RELIEF VALVE ASS'Y

4

01010-31260

BOLT

5

01643-31232

WASHER

6

708-25-19220

TEE

7

07040-11007

PLUG

8

07002-01023

O-RING

9

07002-02434

O-RING

10

07002-02034

O-RING

11

07102-20404

HOSE

12

07235-10422

ELBOW

13

708-25-19120

FLANGE

14

720-68-15240

FILTER

15

07000-02021

O-RING

16

01010-30820

BOLT

17

01643-50823

WASHER

18

708-25-04521

SERVO VALVE ASS'Y,FRONT

18

708-25-04520

SERVO VALVE ASS'Y,FRONT

|$$29

(708-25-04521,708-25-04613)

19

708-25-04613

SERVO VALVE ASS'Y,REAR

19

708-25-04612

SERVO VALVE ASS'Y,REAR

|$$32

(708-25-04613,708-25-04521)

20

706-46-53260

PLUG

21

07002-01423

O-RING

22

708-25-19140

TUBE

23

706-46-53180

BOLT,EYE

24

07000-02012

O-RING

25

708-25-19130

BOLT

26

01602-00825

WASHER,SPRING

27

04020-00616

PIN,DOWEL

28

708-25-32730

COUPLING

29

704-28-02710

O-RING

|$$43

====================
