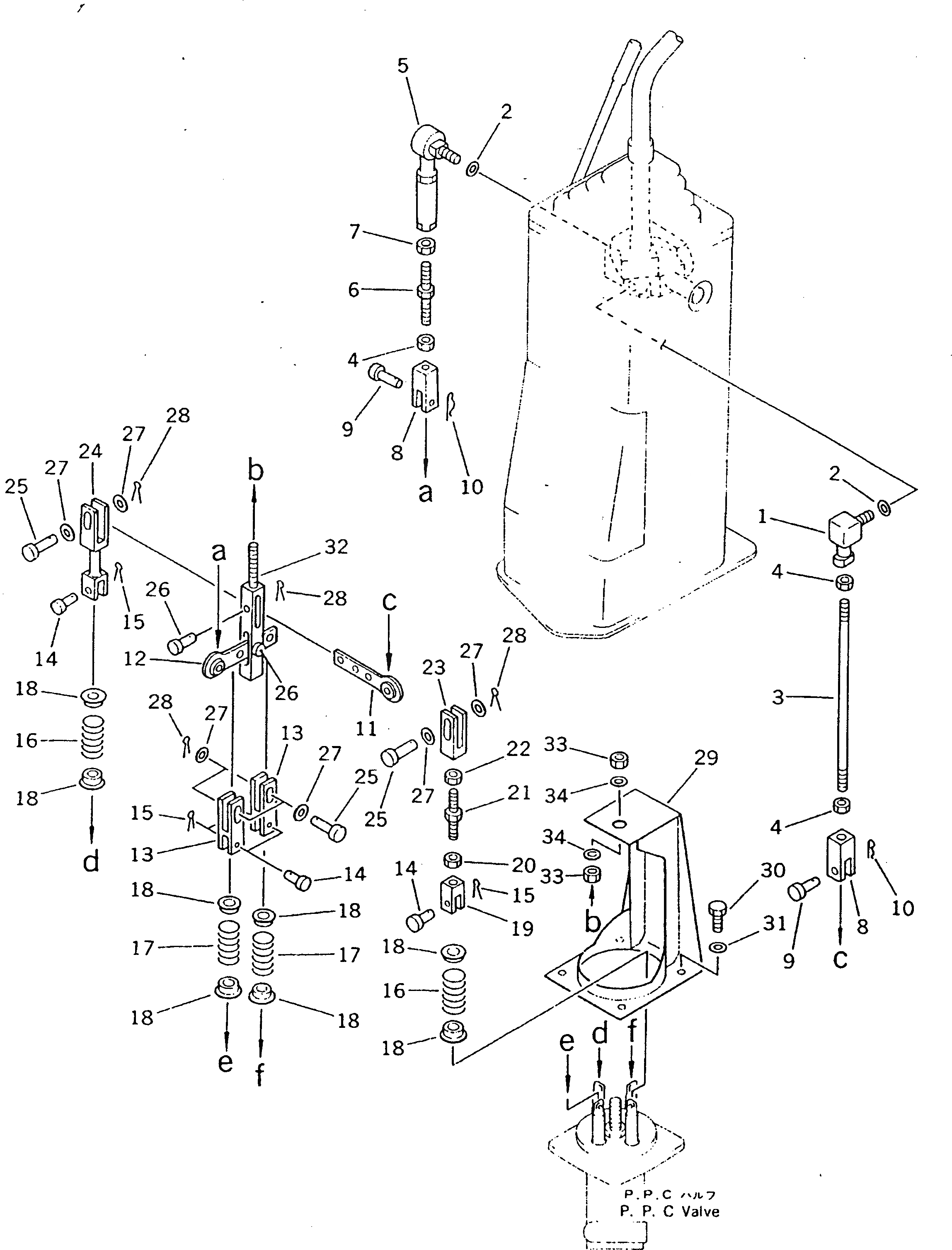

Запчасти Komatsu PC200-3 УДЛИНН. РЫЧАГ УПРАВЛ-Е И СТОЙКА¤ ПРАВ. (/)(№8-) ПОВОРОТН. И СИСТЕМА УПРАВЛЕНИЯ

1

04256-01018

JOINT

2

01643-31032

WASHER

3

04245-41017

ROD

4

01582-11008

NUT

5

205-43-73320

JOINT

6

135-43-35450

ROD

7

01508-21006

NUT

8

04210-21040

YOKE

9

04205-31028

PIN

|9

04205-11028

PIN

10

04052-01038

PIN,SNAP

11

205-43-72751

LEVER

12

205-43-72751

LEVER

13

205-43-72741

YOKE

14

04205-10622

PIN

15

04050-11612

PIN,COTTER

16

205-43-73360

SPRING

|16

205-43-73350

SPRING

17

205-43-72810

SPRING

|17

205-43-72820

SPRING

18

205-43-74270

SPACER

19

205-43-72890

YOKE

20

01580-10806

NUT

21

205-43-72920

BOLT

22

01508-20805

NUT

23

205-43-72910

YOKE

24

205-43-72720

YOKE

25

04205-10825

PIN

26

04205-10822

PIN

|26

04205-30822

PIN

|26

04205-10822

PIN

27

01641-20812

WASHER

28

04050-12015

PIN,COTTER

29

205-43-72710

BRACKET

30

01010-50830

BOLT

31

01643-30823

WASHER

32

205-43-72731

YOKE

33

01582-11008

NUT

34

01643-31032

WASHER
