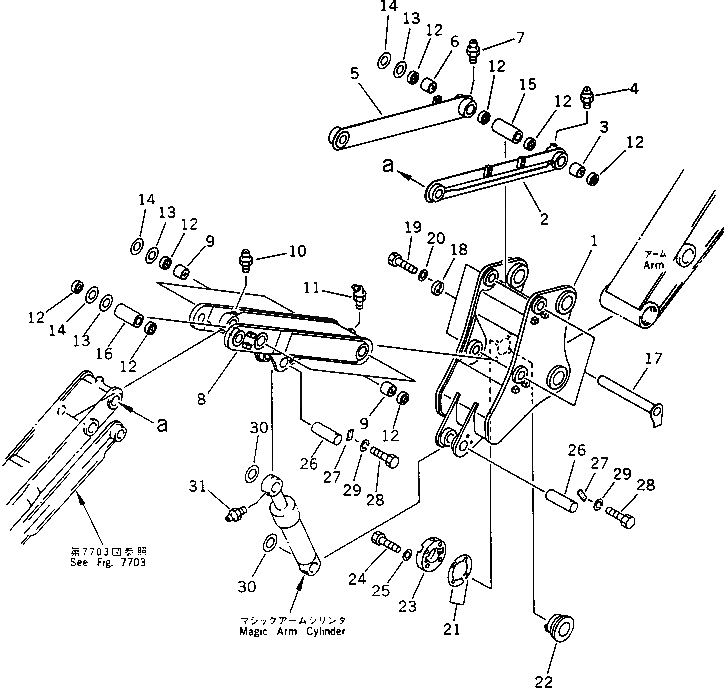

Запчасти Komatsu PC200-3 MAGIC РУКОЯТЬ (/) РАБОЧЕЕ ОБОРУДОВАНИЕ

1

205-917-1110

BRACKET

|2

205-917-0010

LINK ASS'Y,L.H.

2

LINK,L.H.

3

205-917-1320

BUSHING

4

07020-00000

FITTING,GREASE

|5

205-917-0020

LINK ASS'Y,R.H.

5

LINK,R.H.

6

205-917-1320

BUSHING

7

07020-00000

FITTING,GREASE

|8

205-917-0030

FRAME ASS'Y

8

FRAME

9

205-917-1320

BUSHING

10

07020-00000

FITTING,GREASE

11

07020-00675

FITTING,GREASE

12

07145-00050

SEAL,DUST

13

205-917-1380

SHIM¤ 0.5MM

14

201-70-22150

SPACER¤ 1.0MM

15

205-917-1330

COLLAR

16

205-917-1560

COLLAR

17

205-917-1310

PIN

18

205-917-1340

PLATE

19

01010-51025

BOLT

20

01643-31032

WASHER

21

205-70-00101

SHIM ASS'Y

|21

SHIM¤ 0.5MM

|21

SHIM¤ 1.0MM

22

205-70-74381

SPACER

23

205-70-74391

PLATE

24

01010-52055

BOLT

25

01643-32060

WASHER

26

205-917-1520

PIN

27

04082-00212

LOCK

28

01010-51230

BOLT

29

01602-21236

WASHER,SPRING

30

203-70-24150

SPACER¤ 1.0MM

31

07020-00000

FITTING,GREASE
