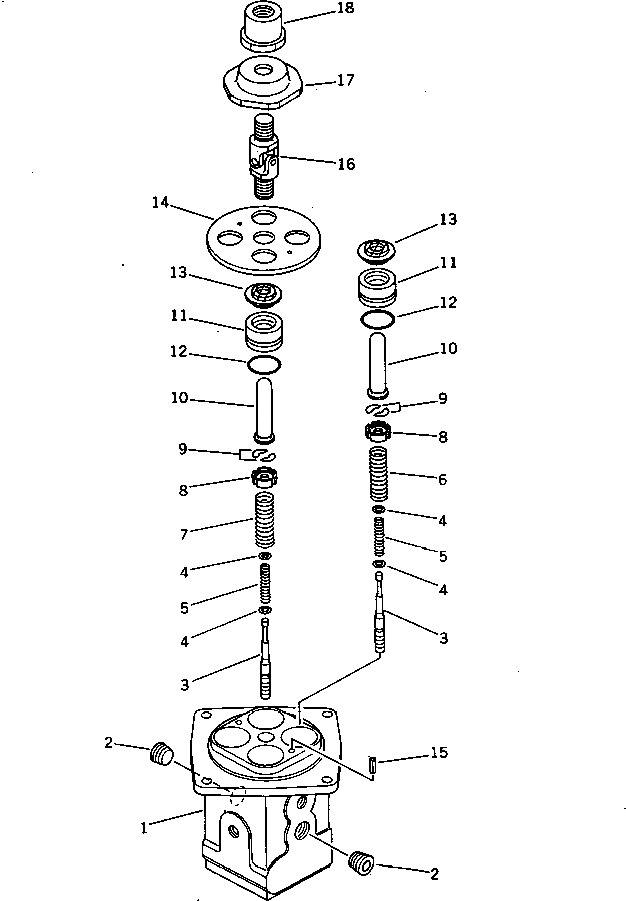

Запчасти Komatsu PC200-3 P.P.C. КЛАПАН (ДЛЯ WRIST УПРАВЛ-Е) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

702-16-53001

VALVE ASS'Y

|1

702-16-53000

VALVE ASS'Y,L.H.

|1

702-16-59000

VALVE ASS'Y,R.H.

|1

702-16-51000

VALVE ASS'Y

1

BODY,VALVE

|1

BODY,VALVE

2

07043-50312

PLUG

3

VALVE

|3

VALVE

4

702-16-51140

SHIM¤ 0.30MM

|4

702-16-51140

SHIM¤ 0.30MM

5

702-16-51510

SPRING,INNER

|5

702-16-51150

SPRING,INNER

6

702-16-51180

SPRING,OUTER

7

702-16-51190

SPRING,OUTER

8

702-16-51161

RETAINER

|8

702-16-51160

RETAINER

9

702-16-51170

COLLAR

10

702-16-51210

PISTON

11

702-16-51220

COLLAR

12

07000-02020

O-RING

13

702-16-51270

SEAL

14

702-16-51231

PLATE

|14

702-16-51230

PLATE

15

04025-00312

PIN,SPRING

16

702-16-51240

JOINT

17

702-16-51250

DISK

18

702-16-51260

NUT
