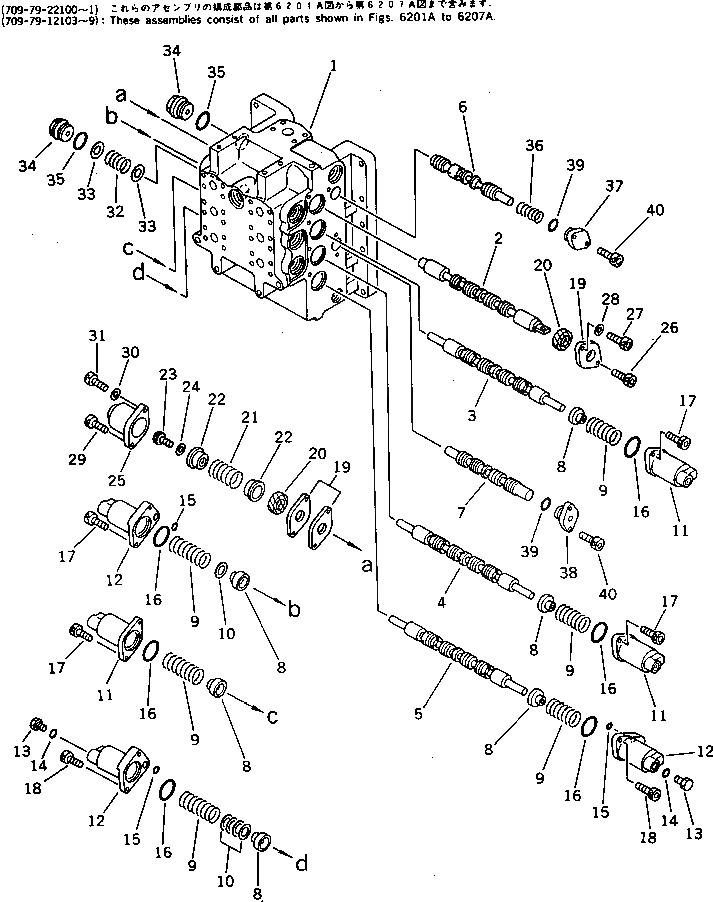

Запчасти Komatsu PC200-3 УПРАВЛЯЮЩ. КЛАПАН (/7) (ДЛЯ WRIST УПРАВЛ-Е)(№-) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

709-79-22101

CONTROL VALVE ASS'Y

|1

709-79-22100

CONTROL VALVE ASS'Y

|1

709-79-12109

CONTROL VALVE ASS'Y

|1

709-79-12108

CONTROL VALVE ASS'Y

|1

709-79-12107

CONTROL VALVE ASS'Y

|1

709-79-12106

CONTROL VALVE ASS'Y

|1

709-79-12105

CONTROL VALVE ASS'Y

|1

709-79-12104

CONTROL VALVE ASS'Y

|1

709-79-12103

CONTROL VALVE ASS'Y

|1

709-74-92105

VALVE ASS'Y

|1

709-74-92104

VALVE ASS'Y

|1

709-74-00020

VALVE ASS'Y

|1

709-74-92101

VALVE ASS'Y

1

BODY,VALVE

|1

BODY,VALVE

2

SPOOL,R.H. TRAVEL

3

SPOOL,BOOM

4

SPOOL,BUCKET

5

SPOOL,ARM HIGH

6

SPOOL

7

SPOOL

8

709-74-92110

RETAINER

9

709-74-92180

SPRING

10

709-74-92360

SHIM¤ 0.5MM

11

709-74-92120

CASE

12

709-74-92140

CASE

13

07040-11409

PLUG

14

07002-01423

O-RING

15

07000-02010

O-RING

16

709-74-92170

O-RING

17

01252-30820

BOLT

18

01252-30830

BOLT

19

709-75-92110

PLATE

20

709-75-92120

SEAL

21

709-75-92180

SPRING

22

709-75-92130

RETAINER

23

01252-30812

BOLT

24

01643-30823

WASHER

25

709-75-92140

CASE

26

01252-30812

BOLT

27

01252-30816

BOLT

28

01643-30823

WASHER

29

01252-30825

BOLT

30

01643-50823

WASHER

31

01252-30830

BOLT

32

700-23-13130

SPRING

33

709-74-92270

WASHER

34

709-74-92220

PLUG

35

07002-03034

O-RING

36

709-74-92190

SPRING

37

709-74-92250

PLATE

38

709-74-92240

PLATE

39

07000-02018

O-RING

40

01252-30820

BOLT
