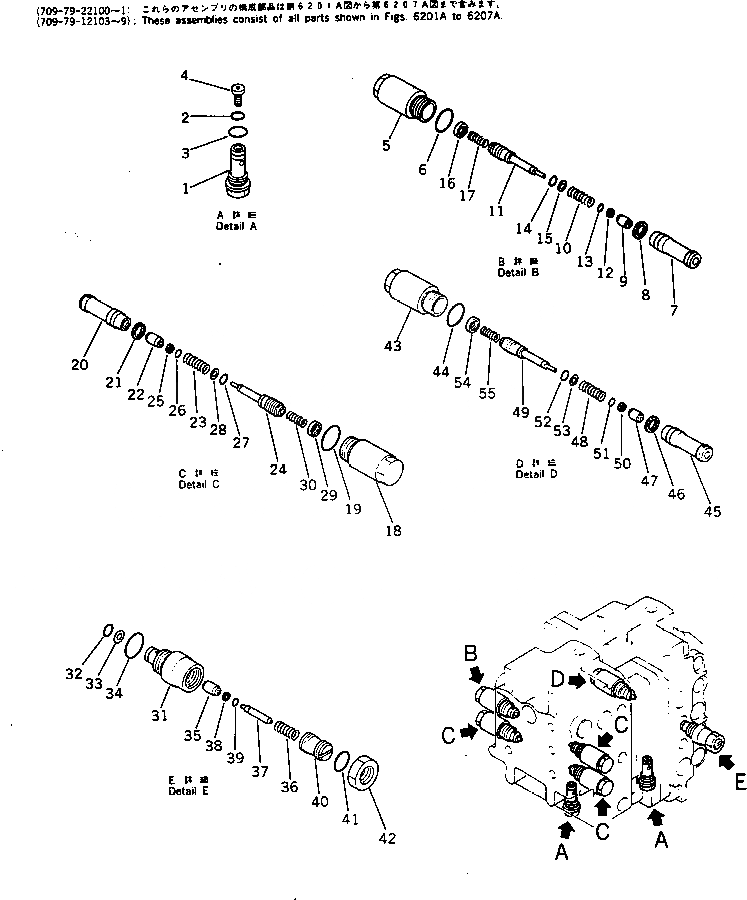

Запчасти Komatsu PC200-3 УПРАВЛЯЮЩ. КЛАПАН (7/7) (ДЛЯ УДЛИНН. РЫЧАГ УПРАВЛ-Е)(№-) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ
№
Артикул
Название
Примечание
Количество
|1
709-79-22101
CONTROL VALVE ASS'Y
|1
709-79-22100
CONTROL VALVE ASS'Y
|1
709-79-12109
CONTROL VALVE ASS'Y
|1
709-79-12108
CONTROL VALVE ASS'Y
|1
709-79-12107
CONTROL VALVE ASS'Y
|1
709-79-12106
CONTROL VALVE ASS'Y
|1
709-79-12105
CONTROL VALVE ASS'Y
|1
709-79-12104
CONTROL VALVE ASS'Y
|1
709-79-12103
CONTROL VALVE ASS'Y
|1
709-70-91300
ORIFICE ASS'Y
1
ORIFICE
2
07000-02014
O-RING
3
07002-02434
O-RING
4
SENSOR
|5
709-70-61101
VALVE ASS'Y,SUCTION AND SAFETY
|5
709-70-61100
VALVE ASS'Y,SUCTION AND SAFETY
5
700-80-62310
SLEEVE
6
07002-03034
O-RING
7
VALVE
8
SEAL
9
POPPET
10
SPRING
11
PISTON
12
SEAL
13
O-RING
14
O-RING
15
RING,BACK-UP
16
NUT
|16
NUT
17
700-80-62250
SPRING
|18
709-70-61201
VALVE ASS'Y,SUCTION AND SAFETY
|18
709-70-61200
VALVE ASS'Y,SUCTION AND SAFETY
18
700-80-62310
SLEEVE
19
07002-03034
O-RING
20
VALVE
21
SEAL
22
POPPET
23
SPRING
24
PISTON
25
SEAL
26
O-RING
27
O-RING
28
RING,BACK-UP
29
NUT
|29
NUT
30
700-80-62250
SPRING
|31
709-70-62200
VALVE ASS'Y
31
SLEEVE
32
700-22-11410
O-RING
33
700-80-64220
RING,BACK-UP
34
07002-03034
O-RING
35
POPPET
36
SPRING
37
PISTON
38
SEAL
39
O-RING
40
SCREW
41
O-RING
42
NUT
|43
709-70-61601
VALVE ASS'Y,SUCTION AND SAFETY
|43
709-70-61600
VALVE ASS'Y,SUCTION AND SAFETY
|43
709-70-61200
VALVE ASS'Y,SUCTION AND SAFETY
43
700-80-62310
SLEEVE
44
07002-03034
O-RING
45
VALVE
|45
VALVE
46
SEAL
47
POPPET
48
SPRING
49
PISTON
|49
PISTON
50
SEAL
51
O-RING
52
O-RING
53
RING,BACK-UP
54
NUT
|54
NUT
55
700-80-62250
SPRING
Выбрано товаров: 78
