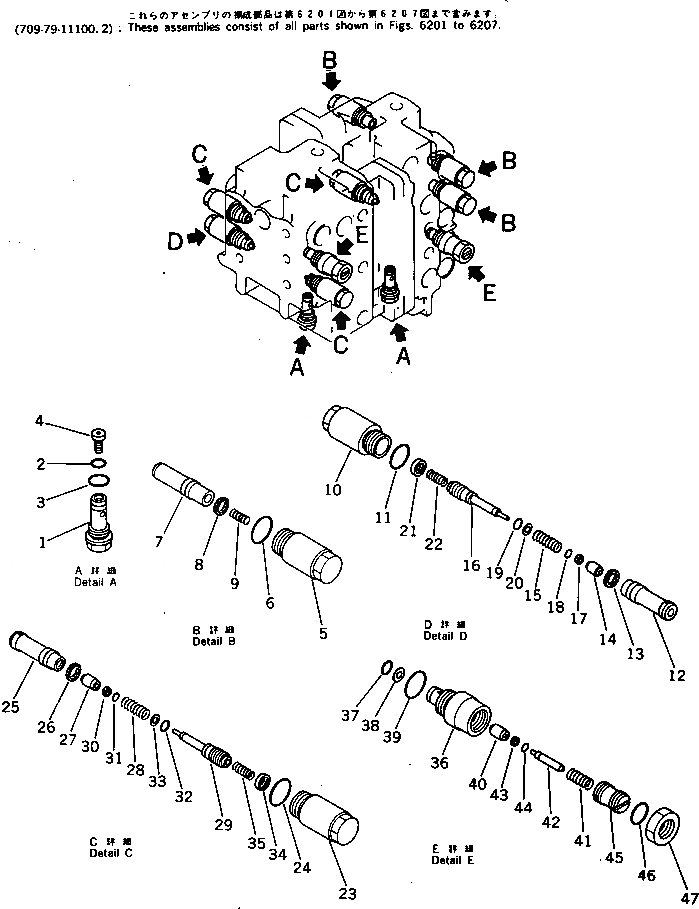

Запчасти Komatsu PC200-3 УПРАВЛЯЮЩ. КЛАПАН (7/7) (ДЛЯ УДЛИНН. РЫЧАГ УПРАВЛ-Е)(№-) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

709-79-11102

CONTROL VALVE ASS'Y

|1

709-79-11100

CONTROL VALVE ASS'Y

|1

709-70-91300

ORIFICE ASS'Y

1

ORIFICE

2

07000-02014

O-RING

3

07002-02434

O-RING

4

SENSOR

|5

700-81-81000

VALVE ASS'Y

5

700-80-62310

SLEEVE

6

07002-03034

O-RING

7

VALVE

8

SEAL

9

700-80-62250

SPRING

|10

709-70-61100

VALVE ASS'Y

10

700-80-62310

SLEEVE

11

07002-03034

O-RING

12

PISTON

13

SEAL

14

POPPET

15

SPRING

16

PISTON

17

SEAL

18

O-RING

19

07000-12012

O-RING

20

07001-02012

RING,BACK-UP

21

NUT

22

700-80-62250

SPRING

|23

709-70-61200

VALVE ASS'Y

23

700-80-62310

SLEEVE

24

07002-03034

O-RING

25

PISTON

26

SEAL

27

POPPET

28

SPRING

29

PISTON

30

SEAL

31

O-RING

32

O-RING

33

RING,BACK-UP

34

NUT

35

700-80-62250

SPRING

|36

709-70-62200

VALVE ASS'Y

|36

709-70-62100

VALVE ASS'Y

36

SLEEVE

37

700-22-11410

O-RING

38

700-80-64220

RING,BACK-UP

39

07002-03034

O-RING

40

POPPET

41

SPRING

42

PISTON

43

SEAL

44

O-RING

45

SCREW

46

O-RING

47

NUT
