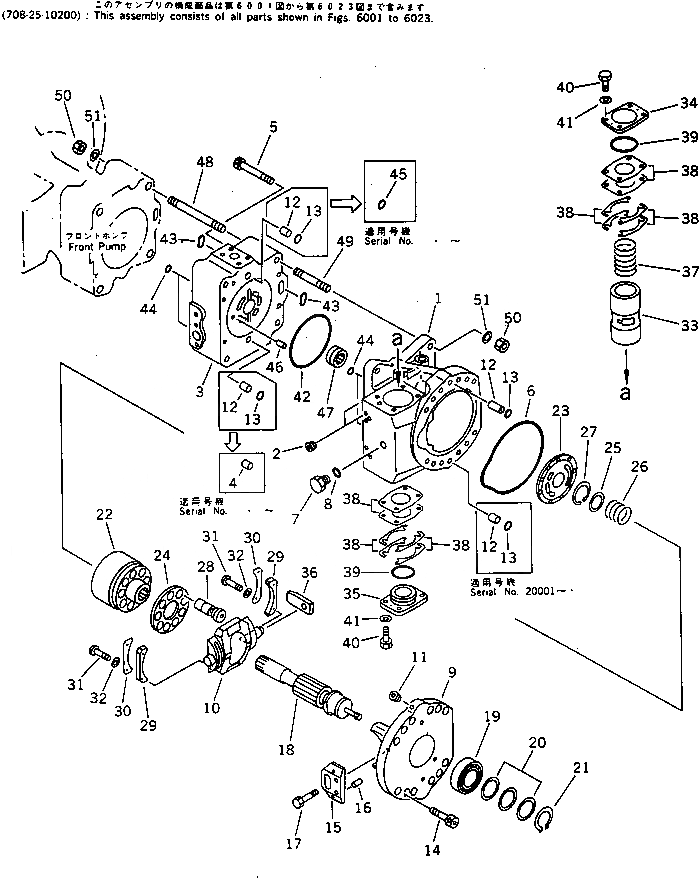

Запчасти Komatsu PC200-3 ГИДРАВЛ ПОРШЕНЬ НАСОС (/) (С -STAGE SELECTOR MODE OLSS)(№-987) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ
№
Артикул
Название
Примечание
Количество
|1
708-25-01064
PUMP ASS'Y
|1
708-25-10200
PUMP ASS'Y
|1
708-25-01250
PUMP SUB ASS'Y
|1
708-25-11100
PUMP SUB ASS'Y
|1
708-25-00100
CASE ASS'Y,REAR
1
CASE,REAR
2
PLUG
3
CAP,END¤ REAR
4
6130-21-1910
PIN
5
708-25-12530
BOLT
6
708-25-12340
O-RING
7
720-68-19870
PLUG
8
07002-01223
O-RING
|9
708-25-00040
CRADLE ASS'Y,REAR
|9
708-25-00550
CRADLE ASS'Y,REAR
9
708-25-12320
CRADLE,REAR
|9
708-25-12430
CRADLE,REAR
10
CAM,ROCKER
11
706-86-51180
PLUG
12
708-25-12330
JOINT
|12
708-25-12330
JOINT
13
07000-12015
O-RING
|13
07000-12015
O-RING
14
708-25-12350
BOLT
15
708-25-12360
PLATE
16
04020-00820
PIN,DOWEL
17
01010-30816
BOLT
18
708-25-12720
SHAFT
19
708-25-12731
BEARING
|19
708-25-12730
BEARING
20
708-25-05010
WASHER KIT
|20
WASHER¤ 2.0MM
|20
WASHER¤ 2.1MM
|20
WASHER¤ 2.2MM
21
708-25-12790
RING,SNAP
|22
708-25-00020
BLOCK ASS'Y
22
4708-25-13150
BLOCK,CYLINDER
23
708-25-13220
PLATE,VALVE
24
4708-25-13421
RETAINER,SHOE
25
708-25-13120
WASHER
26
708-25-13130
SPRING
27
708-25-13140
RING,SNAP
28
4708-25-13310
PISTON SUB ASS'Y
29
708-25-05100
SPACER KIT
|29
SPACER¤ 12.015MM
|29
SPACER¤ 12.040MM
|29
SPACER¤ 12.060MM
30
708-25-13441
RETAINER,BEARING
31
708-25-13470
SCREW
32
01643-30623
WASHER
|33
708-25-00220
PISTON GROUP
33
PISTON
34
CAP
35
CAP
36
708-25-14120
SLIDER
37
708-25-14130
SPRING
38
708-25-05050
SHIM KIT
|38
SHIM¤ 0.1MM
|38
SHIM¤ 0.1MM
|38
SHIM¤ 0.2MM
|38
SHIM¤ 0.5MM
39
07000-02065
O-RING
40
01010-51025
BOLT
41
01643-31032
WASHER
42
07000-02135
O-RING
43
07000-03032
O-RING
44
07000-11009
O-RING
45
07000-12015
O-RING
46
720-68-19610
PIN
47
708-25-12740
BEARING
48
01141-81620
STUD
49
01140-81645
STUD
50
01582-21613
NUT
51
01643-31645
WASHER
Выбрано товаров: 74
