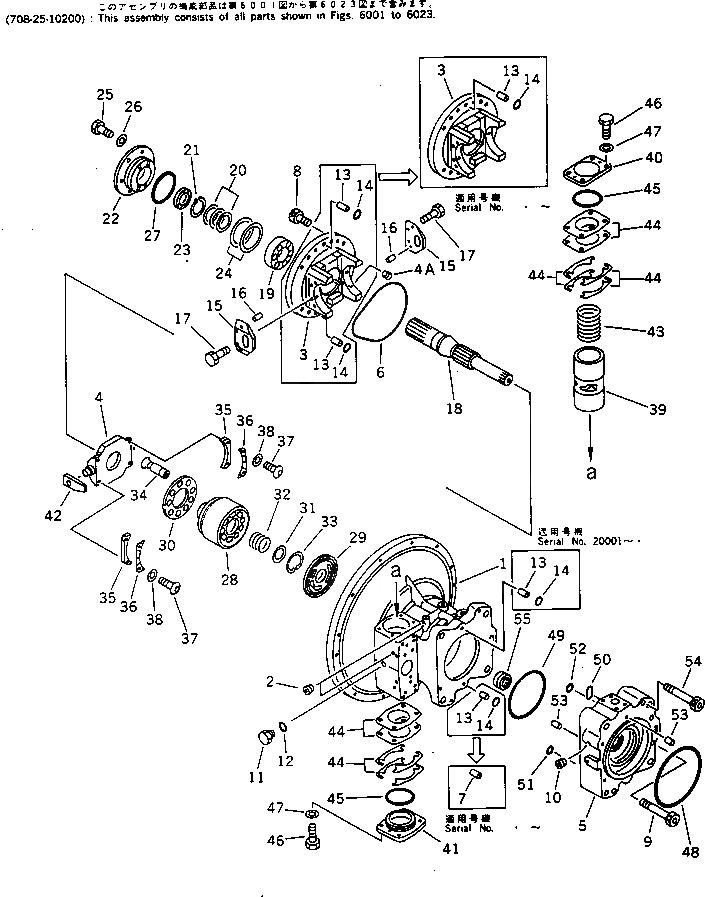

Запчасти Komatsu PC200-3 ГИДРАВЛ ПОРШЕНЬ НАСОС (/) (С -STAGE SELECTOR MODE OLSS)(№-987) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ
№
Артикул
Название
Примечание
Количество
|1
708-25-01064
PUMP ASS'Y
|1
708-25-10200
PUMP ASS'Y
|1
708-25-01250
PUMP SUB ASS'Y
|1
708-25-11100
PUMP SUB ASS'Y
|1
708-25-00090
CASE ASS'Y,FRONT
|1
708-25-00030
CRADLE ASS'Y,FRONT
|1
708-25-00540
CRADLE ASS'Y,FRONT
1
CASE,FRONT
2
PLUG
3
708-25-12310
CRADLE,FRONT
|3
708-25-12420
CRADLE,FRONT
4
CAM,ROCKER
4A
706-86-51180
PLUG
5
CAP,FRONT
6
708-25-12340
O-RING
7
6130-21-1910
PIN
8
708-25-12390
BOLT
9
708-25-12530
BOLT
10
PLUG
11
720-68-19870
PLUG
12
07002-01223
O-RING
13
708-25-12330
JOINT
|13
708-25-12330
JOINT
14
07000-12015
O-RING
|14
07000-12015
O-RING
15
708-25-12360
PLATE
16
04020-00820
PIN,DOWEL
17
01010-50816
BOLT
18
708-25-12710
SHAFT,FRONT
19
708-25-12731
BEARING
|19
708-25-12730
BEARING
20
708-25-05010
WASHER KIT
|20
WASHER¤ 2.0MM
|20
WASHER¤ 2.1MM
|20
WASHER¤ 2.2MM
21
708-25-12790
RING,SNAP
22
708-25-12810
HOUSING
23
708-25-52860
SEAL,OIL
|23
706-73-40920
SEAL,OIL
24
708-25-05030
SHIM KIT
|24
SHIM
|24
SHIM
|24
SHIM
25
01010-50820
BOLT
26
01643-30823
WASHER
27
07000-02080
O-RING
28
4708-25-13150
BLOCK,CYLINDER
29
PLATE,VALVE
30
4708-25-13421
RETAINER,SHOE
31
708-25-13120
WASHER
32
708-25-13130
SPRING
33
708-25-13140
RING,SNAP
34
4708-25-13310
PISTON SUB ASS'Y
35
SPACER¤ 12.015MM
|35
SPACER¤ 12.040MM
|35
SPACER¤ 12.060MM
36
708-25-13441
RETAINER,BEARING
37
708-25-13470
SCREW
38
01643-30623
WASHER
|39
708-25-00210
PISTON GROUP
39
PISTON
40
CAP
41
CAP
42
708-25-14120
SLIDER
43
708-25-14130
SPRING
44
708-25-05050
SHIM KIT
|44
SHIM¤ 0.1MM
|44
SHIM¤ 0.1MM
|44
SHIM¤ 0.2MM
|44
SHIM¤ 0.5MM
45
07000-02065
O-RING
46
01010-51035
BOLT
47
01643-31032
WASHER
48
07000-05165
O-RING
49
07000-02135
O-RING
50
07000-03032
O-RING
51
07000-11009
O-RING
52
07000-12015
O-RING
53
720-68-19610
PIN
54
708-25-12530
BOLT
55
708-25-12740
BEARING
Выбрано товаров: 81
