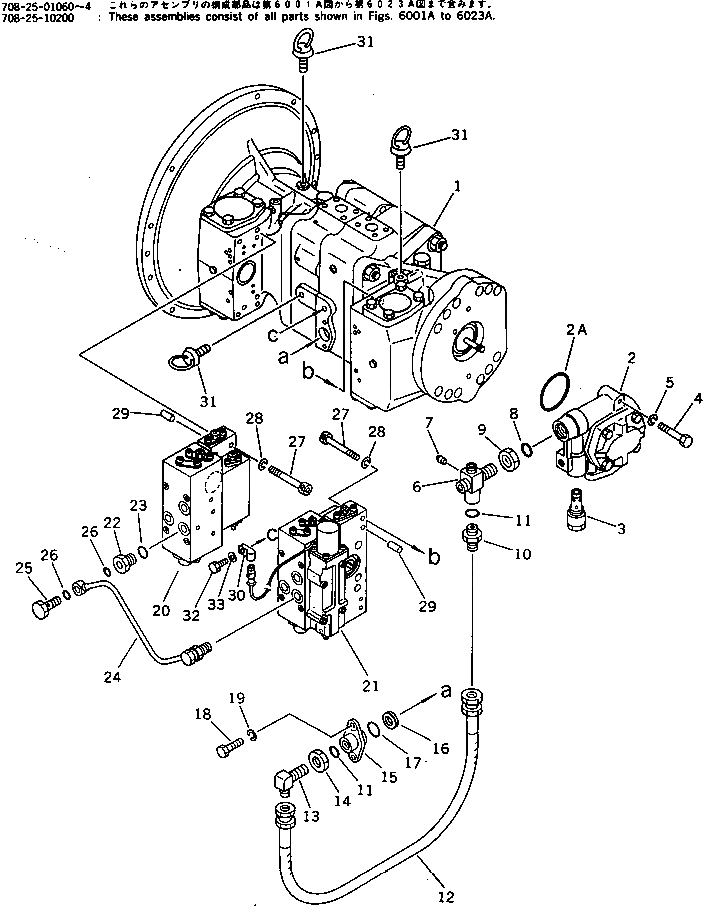

Запчасти Komatsu PC200-3 ГИДРАВЛ ПОРШЕНЬ НАСОС (/) (С -STAGE SELECTOR MODE OLSS)(№988-) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ
№
Артикул
Название
Примечание
Количество
|1
708-25-01064
PUMP ASS'Y
|1
708-25-01063
PUMP ASS'Y
|1
708-25-01062
PUMP ASS'Y
|1
708-25-01061
PUMP ASS'Y
|1
708-25-01060
PUMP ASS'Y
|1
708-25-10200
PUMP ASS'Y
1
708-25-01250
PUMP SUB ASS'Y
|1
708-25-11101
PUMP SUB ASS'Y
|1
708-25-11100
PUMP SUB ASS'Y
2
704-24-28203
PUMP ASS'Y
|2
704-24-28202
PUMP ASS'Y
|2
704-24-28201
PUMP ASS'Y
2A
704-28-02710
O-RING
3
708-23-14902
RELIEF VALVE ASS'Y
|3
708-25-14900
RELIEF VALVE ASS'Y
4
01010-31260
BOLT
5
01643-31232
WASHER
6
708-25-19111
JOINT
7
07042-20108
PLUG
8
07002-02434
O-RING
9
07239-12410
NUT
10
07230-20422
UNION
|10
07230-10422
UNION
11
07002-02034
O-RING
12
07102-20404
HOSE
13
07232-30422
ELBOW
|13
07232-20422
ELBOW
14
07239-12009
NUT
15
708-25-19120
FLANGE
16
720-68-15240
FILTER
17
07000-02021
O-RING
18
01010-30820
BOLT
19
01602-20825
WASHER,SPRING
20
708-25-07111
SERVO VALVE ASS'Y,FRONT
|20
708-25-07110
SERVO VALVE ASS'Y,FRONT
|20
708-25-15100
SERVO VALVE ASS'Y,FRONT
21
708-25-07212
SERVO VALVE ASS'Y,REAR
|21
708-25-07211
SERVO VALVE ASS'Y,REAR
|21
708-25-07210
SERVO VALVE ASS'Y,REAR
|21
708-25-16600
SERVO VALVE ASS'Y,REAR
22
706-46-53260
PLUG
23
07002-01423
O-RING
24
708-25-19140
TUBE
25
706-46-53180
BOLT,JOINT
26
07000-02012
O-RING
27
708-25-19130
BOLT
28
01602-00825
WASHER,SPRING
29
04020-00616
PIN,DOWEL
30
08036-21814
CLIP
31
04530-01018
BOLT,EYE
32
01010-31016
BOLT
33
01643-31032
WASHER
Выбрано товаров: 52
