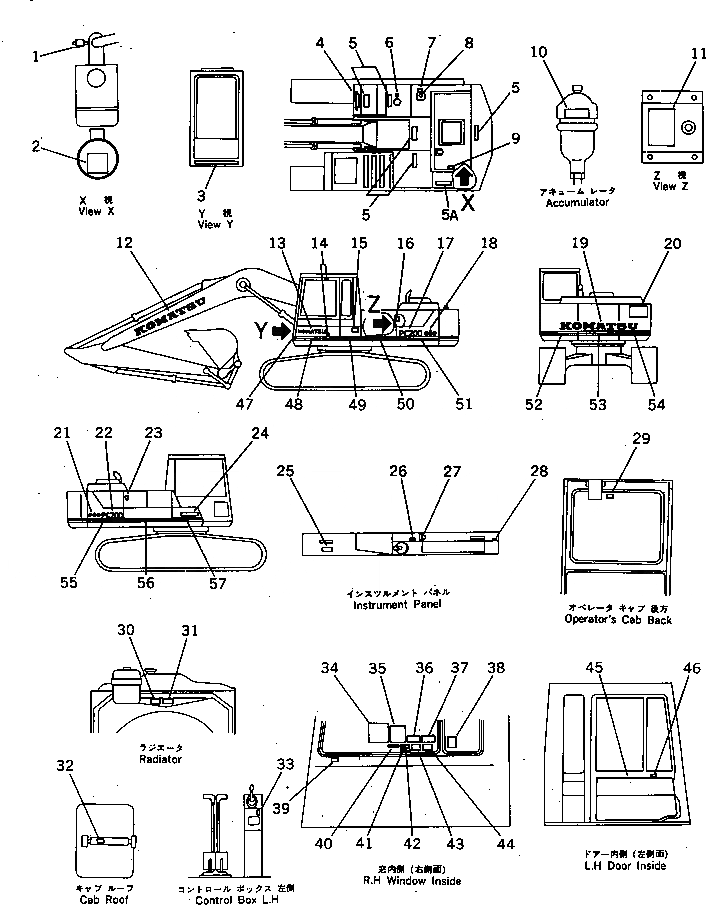

Запчасти Komatsu PC200-3 МАРКИРОВКА(АРАБСК.-АНГЛ.)(ДЛЯ WRIST УПРАВЛ-Е)(W/O АВТОМАТИЧ. DECEL.¤ПОВОРОТН. MECHA.ТОРМОЗ.)(W/-STAGE) СПЕЦ. APPLICATION ЧАСТИ¤ МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

08670-90640

INDICATOR,DUST

2

09637-02661

PLATE, INSTRUCTION

2

09637-02161

PLATE, INSTRUCTION

3

205-54-76480

PLATE

4

205-54-76511

SEAT,NONSKID

4

205-54-76510

SEAT,NONSKID

5

154-54-23260

SEAT,NONSKID

5A

205-54-76511

SEAT,NONSKID

5A

154-54-23260

SEAT,NONSKID

6

09669-00002

PLATE, CAUTION,FUEL

7

09653-00200

PLATE, SAFETY,HYDRAULIC TANK CAP

8

09669-00003

PLATE, CAUTION,HYDRAULIC OIL TANK

9

09667-00200

PLATE, SAFETY

10

205-00-75750

PLATE

11

205-00-75741

PLATE

11

205-00-75740

PLATE

12

205-00-63510

PLATE, MARK,KOMATSU

13

205-00-76220

PLATE, MARK,KOMATSU

14

205-00-63770

PLATE

15

205-00-63530

PLATE, NAME

15

205-00-72430

RIVET

15

205-00-71540

SCREW

16

205-00-76340

PLATE

17

205-00-71260

PLATE, MARK,PC200

18

205-00-71240

PLATE, MARK,SYMBOL

19

205-00-76210

PLATE, MARK

20

09133-00200

PLATE, SAFETY,KEEP OUT OF TURNING AREA

21

205-00-71240

PLATE, MARK,SYMBOL

22

205-00-71260

PLATE, MARK,PC200

23

205-00-73360

PLATE, OPERATING

23

203-00-31120

PLATE, INSTRUCTION

24

205-00-76220

PLATE, MARK,KOMATSU

25

09685-00002

PLATE, OPERATING,SWING LOCK LEVER

26

09685-00001

PLATE, OPERATING

27

09683-02060

PLATE, OPERATING,STARTING SWITCH

28

205-00-76120

PLATE

29

205-00-63440

PLATE

30

205-00-66270

PLATE, CAUTION

31

09668-00200

PLATE, SAFETY

32

205-00-63580

PLATE, SAFETY

33

09685-00002

PLATE, OPERATING,SAFETY LOCK LEVER

34

205-00-66110

PLATE, OPERATING

35

205-00-75760

PLATE

36

205-00-66320

PLATE

37

205-00-66180

PLATE, CAUTION

38

205-00-71580

PLATE, CAUTION

39

205-00-63450

PLATE, CAUTION

40

205-00-73250

PLATE

41

09651-00200

PLATE, SAFETY

42

09131-00200

PLATE, SAFETY,SWING LOCK LEVER

43

09173-00200

PLATE, SAFETY,INSPECTION AND MAINTENANCE

44

205-00-63480

PLATE, CAUTION

45

205-54-76471

COVER

45

205-54-76470

COVER

45

205-54-72350

CLIP ASS'Y

45

205-54-72350

CLIP ASS'Y

46

205-00-71340

PLATE, OPERATING

|$57

205-00-71530

LINE, STRIPE, 50M

47

205-00-73270

LINE, STRIPE, 46MM,(SERVICE PARTS)

48

205-00-71120

LINE, STRIPE, 1030MM,(SERVICE PARTS)

49

205-00-71130

LINE, STRIPE, 476MM,(SERVICE PARTS)

50

205-00-71140

LINE, STRIPE, 844MM,(SERVICE PARTS)

51

205-00-71150

LINE, STRIPE, 984MM,(SERVICE PARTS)

52

205-00-71160

LINE, STRIPE, 1093MM,(SERVICE PARTS)

53

205-00-71170

LINE, STRIPE, 955MM,(SERVICE PARTS)

54

205-00-71160

LINE, STRIPE, 1093MM,(SERVICE PARTS)

55

205-00-71190

LINE, STRIPE, 849MM,(SERVICE PARTS)

56

205-00-71210

LINE, STRIPE, 1104MM,(SERVICE PARTS)

57

205-00-71230

LINE, STRIPE, 757MM,(SERVICE PARTS)
