Запчасти Komatsu PC200-3 УПРАВЛЯЮЩ. КЛАПАН (7/7) (ДЛЯ WRIST УПРАВЛ-Е)(№-) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

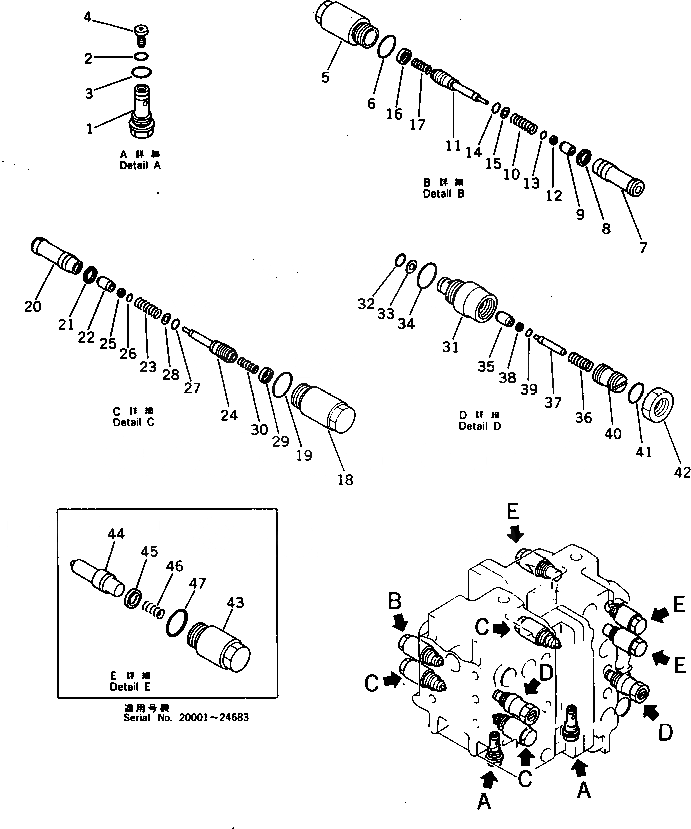

Схема запчастей Komatsu PC200-3 - УПРАВЛЯЮЩ. КЛАПАН (7/7) (ДЛЯ WRIST УПРАВЛ-Е)(№-) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

Артикул

Название

Примечание

Количество

|$0

709-79-12102

CONTROL VALVE ASS'Y

|$1

709-79-12101

CONTROL VALVE ASS'Y

|$2

709-79-12100

CONTROL VALVE ASS'Y

|$3

709-70-91300

ORIFICE ASS'Y

1

ORIFICE

2

07000-02014

O-RING

3

07002-02434

O-RING

4

SENSOR

|$8

709-70-61100

VALVE ASS'Y

5

700-80-62310

SLEEVE

6

07002-03034

O-RING

7

VALVE

8

SEAL

9

POPPET

10

SPRING

11

PISTON

12

SEAL

13

O-RING

14

O-RING

15

RING,BACK-UP

16

NUT

17

700-80-62250

SPRING

|$22

709-70-61200

VALVE ASS'Y

|$23

709-70-61200

VALVE ASS'Y

18

700-80-62310

SLEEVE

19

07002-03034

O-RING

20

VALVE

21

SEAL

22

POPPET

23

SPRING

24

PISTON

25

SEAL

26

O-RING

27

O-RING

28

RING,BACK-UP

29

NUT

30

700-80-62250

SPRING

|$37

709-70-62200

VALVE ASS'Y,SAFETY

|$38

709-70-62200

VALVE ASS'Y,SAFETY

|$39

709-70-62100

VALVE ASS'Y,SAFETY

31

SLEEVE

31

SLEEVE

32

700-22-11410

O-RING

33

700-30-64220

RING,BACK-UP

34

07002-03034

O-RING

35

POPPET

36

SPRING

37

PISTON

38

SEAL

39

O-RING

40

SCREW

41

O-RING

42

NUT

|$53

700-81-81000

VALVE ASS'Y

43

700-80-62310

SLEEVE

44

VALVE

45

SEAL

46

700-80-62250

SPRING

47

07002-03034

O-RING

Выбрано товаров: 59
