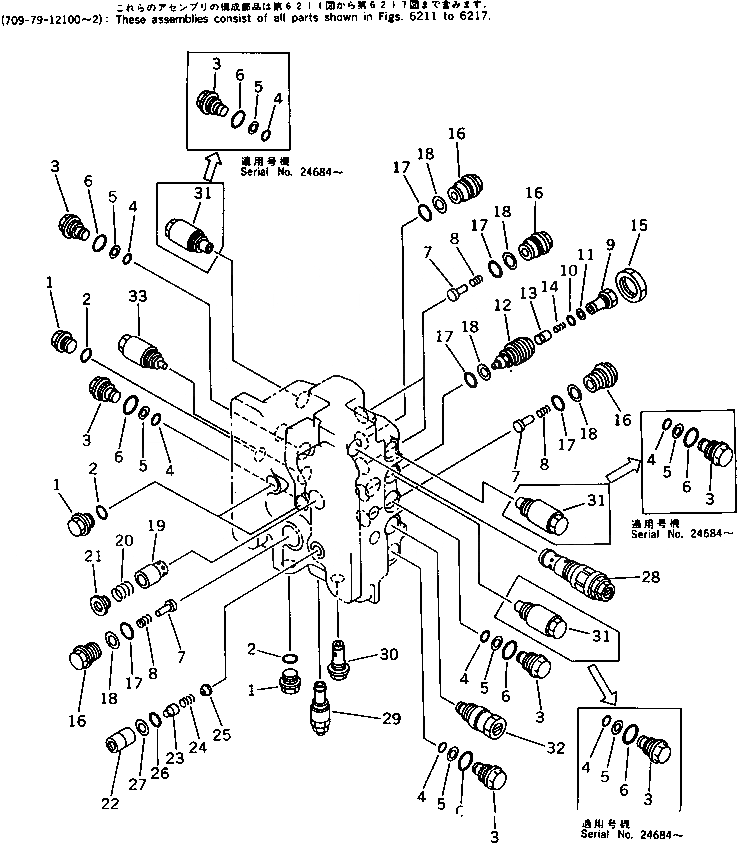

Запчасти Komatsu PC200-3 УПРАВЛЯЮЩ. КЛАПАН (/7) (ДЛЯ WRIST УПРАВЛ-Е)(№-) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ
№
Артикул
Название
Примечание
Количество
|$0
709-79-12102
CONTROL VALVE ASS'Y
|$1
709-79-12101
CONTROL VALVE ASS'Y
|$2
709-79-12100
CONTROL VALVE ASS'Y
|$3
709-75-00020
VALVE ASS'Y
|$4
709-75-92101
VALVE ASS'Y
|$5
709-75-92100
VALVE ASS'Y
1
700-22-11370
PLUG
2
07002-12434
O-RING
3
700-84-13960
PLUG
3
700-84-13960
PLUG
4
700-22-11410
O-RING
4
700-22-11410
O-RING
5
700-80-64220
RING,BACK-UP
5
700-80-64220
RING,BACK-UP
6
07002-03034
O-RING
6
07002-03034
O-RING
7
709-75-92210
VALVE,CHECK
8
709-75-92220
SPRING
9
709-74-92450
PLUG
10
07000-12010
O-RING
11
07001-02010
RING,BACK-UP
12
709-74-92440
PLUG
13
706-73-70140
VALVE,CHECK
14
706-73-70150
SPRING
15
709-74-92460
NUT
16
709-75-92230
PLUG
17
700-93-11320
O-RING
18
700-93-11330
RING,BACK-UP
19
709-74-92280
VALVE
20
709-74-92290
SPRING
21
709-74-92310
SEAT
22
709-74-92320
SLEEVE
23
709-74-92330
VALVE
24
709-74-92340
SPRING
25
709-74-92350
SEAT
26
07000-12021
O-RING
27
07001-02021
RING,BACK-UP
28
709-70-51200
RELIEF VALVE ASS'Y
29
709-70-55100
RELIEF VALVE ASS'Y
30
709-70-91300
ORIFICE ASS'Y
31
700-81-81000
VALVE ASS'Y,SUCTION
32
709-70-62200
VALVE ASS'Y,SAFETY
32
709-70-62100
VALVE ASS'Y
33
709-70-61200
VALVE ASS'Y,SUCTION AND SAFETY
Выбрано товаров: 44
