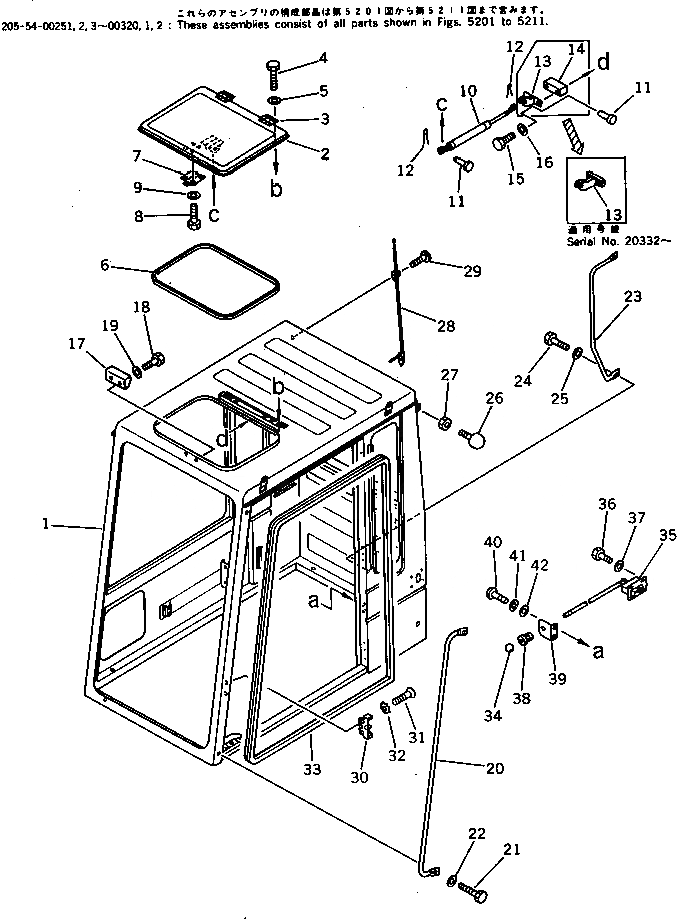

Запчасти Komatsu PC200-3 КАБИНА (ТИП ) (/) ОСНОВНАЯ РАМА И КАБИНА

|$0

205-54-00322

OPERATOR'S CAB ASS'Y

|$1

205-54-00321

OPERATOR'S CAB ASS'Y

|$2

205-54-00320

OPERATOR'S CAB ASS'Y

|$3

205-54-00253

OPERATOR'S CAB ASS'Y

|$4

205-54-00252

OPERATOR'S CAB ASS'Y

|$5

205-54-00251

OPERATOR'S CAB ASS'Y

1

205-54-71114

CAB

1

205-54-71113

CAB

1

205-54-71112

CAB

1

205-54-71111

CAB

2

205-54-71142

COVER

2

205-54-71141

COVER

3

205-54-72680

HINGE (WELDED)

4

01010-50612

BOLT

5

01643-30623

WASHER

6

205-54-71551

SEAL

7

205-54-72470

LOCK ASS'Y

8

01010-50616

BOLT

9

01643-30623

WASHER

10

205-54-63650

GAS SPRING ASS'Y

11

04205-10825

PIN

12

04050-12012

PIN,COTTER

13

205-54-72511

BRACKET

13

205-54-72510

BRACKET

14

205-54-72880

SEAT

15

01010-50635

BOLT

16

01643-30623

WASHER

17

205-54-72520

BRACKET

18

01010-50616

BOLT

19

01643-30623

WASHER

20

205-54-72531

GRIP

21

01010-51025

BOLT

22

01643-31032

WASHER

23

205-54-72541

GRIP

23

205-54-72540

GRIP

24

01010-51025

BOLT

25

01643-31032

WASHER

26

09453-00002

STOPPER

27

01580-11210

NUT

28

205-06-62350

ANTENNA ASS'Y

29

01220-40420

SCREW

30

205-54-71731

STRIKER

31

205-54-72770

SCREW

32

205-54-72780

WASHER

33

205-54-71560

TRIM

34

205-54-72840

KNOB

35

205-54-72810

LOCK ASS'Y

36

01010-50620

BOLT

37

01643-30623

WASHER

38

205-54-72830

GROMMET

39

205-54-72820

BRACKET

40

01220-40620

SCREW

41

01602-20619

WASHER,SPRING

42

01641-20608

WASHER
