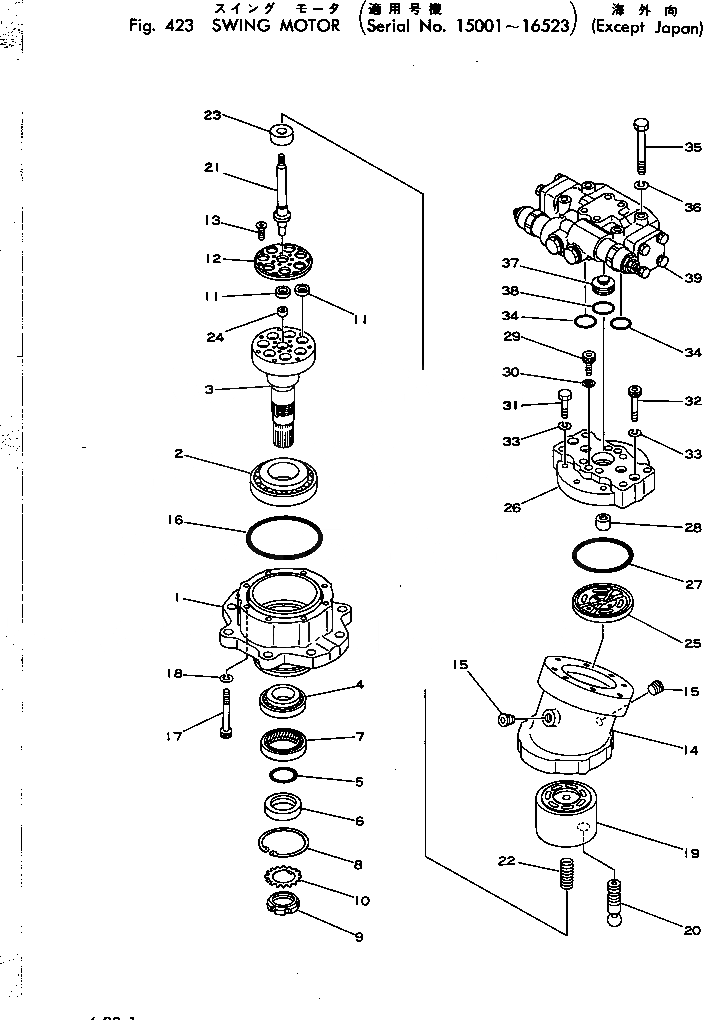

Запчасти Komatsu PC200-2 МОТОР ПОВОРОТА (E.J.)(№-) ПОВОРОТН. И СИСТЕМА УПРАВЛЕНИЯS

|$0

706-75-04700

SWING MOTOR ASS'Y

|$1

706-75-42003

MOTOR ASS'Y

1

COVER

2

BEARING (KIT)

3

SHAFT (KIT)

4

BEARING

5

O-RING (KIT)

6

RING

7

SEAL (KIT)

9

01530-03912

NUT

10

WASHER (KIT)

11

HOLDER (KIT)

12

RETAINER (KIT)

13

SCREW (KIT)

14

PLATE

15

706-73-40360

PLUG

16

O-RING (KIT)

17

BOLT

18

WASHER

19

BLOCK (KIT)

20

PISTON ASS'Y (KIT)

21

SHAFT (KIT)

22

SPRING (KIT)

23

RING (KIT)

24

BALL (KIT)

25

PLATE

26

COVER

27

O-RING (KIT)

28

BEARING

29

BOLT (KIT)

30

GASKET (KIT)

31

BOLT

32

BOLT

33

WASHER

34

07000-13032

O-RING

35

01011-51205

BOLT

36

01602-21236

WASHER

37

706-75-40730

CAP

38

07000-03035

O-RING

39

706-75-72201

BRAKE VALVE ASS'Y

|$40

706-98-00211

DRIVE SHAFT KIT

2

BEARING

3

SHAFT

5

07000-03040

O-RING

7

SEAL

10

WASHER

11

HOLDER

12

RETAINER

13

SCREW

16

07000-02130

O-RING

19

BLOCK

20

PISTON ASS'Y

21

SHAFT

22

SPRING

23

RING

24

BALL

27

07000-02110

O-RING

29

BOLT

30

07002-00612

WASHER
