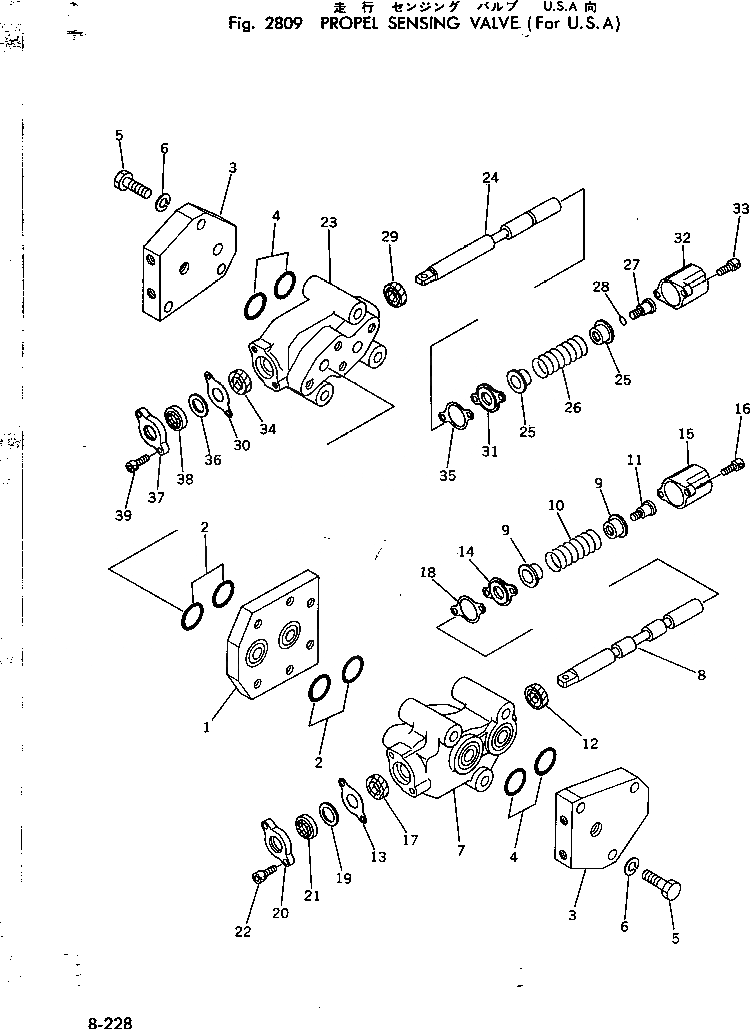

Запчасти Komatsu PC200-2 ХОД СЕНСОР. КЛАПАН (ДЛЯ США) ОПЦИОННЫЕ КОМПОНЕНТЫ (СПЕЦ. APPLICATION ЧАСТИ)

|$0

702-15-45000

VALVE ASS'Y

1

702-15-45120

BLOCK

2

07000-03022

O-RING

3

702-15-45130

BLOCK

4

07000-03022

O-RING

5

01011-51000

BOLT

6

01602-21030

WASHER

|$7

702-15-45100

VALVE ASS'Y

7

BODY

8

SPOOL

9

700-22-11290

RETAINER

10

702-15-17130

SPRING

11

700-22-11320

PLUG

12

700-22-11252

U-PACKING

13

700-22-11420

GASKET

14

700-22-11281

PLATE

15

700-22-11331

COVER

16

01252-40616

BOLT

17

700-22-11252

U-PACKING

18

700-22-11420

GASKET

19

700-22-11430

COLLAR

20

700-22-11270

PLATE

21

700-22-11261

SEAL

22

01252-40616

BOLT

|$24

702-15-45200

VALVE ASS'Y

23

BODY

24

SPOOL

25

700-22-11290

RETAINER

26

702-15-17130

SPRING

27

700-22-11320

PLUG

28

07000-01006

O-RING

29

700-22-11252

U-PACKING

30

700-22-11420

GASKET

31

700-22-11281

PLATE

32

700-22-11331

COVER

33

01252-40616

BOLT

34

700-22-11252

U-PACKING

35

700-22-11420

GASKET

36

700-22-11430

COLLAR

37

700-22-11270

PLATE

38

700-22-11261

SEAL

39

01252-40616

BOLT
