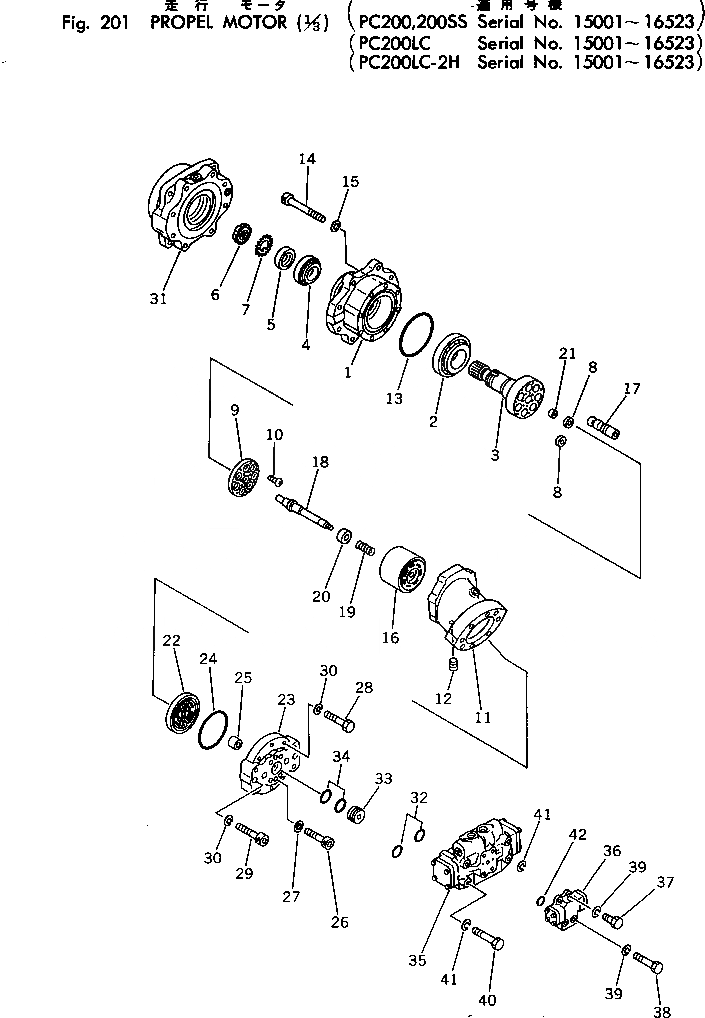

Запчасти Komatsu PC200-2 МОТОР ХОДА (/)(№-) ХОД И КОНЕЧНАЯ ПЕРЕДАЧА

|$0

706-75-36901

PROPEL MOTOR ASS'Y

|$1

706-75-43004

MOTOR ASS'Y

1

COVER

2

BEARING (KIT)

3

SHAFT (KIT)

4

BEARING

5

RING

6

NUT

7

WASHER (KIT)

8

HOLDER (KIT)

9

RETAINER (KIT)

10

SCREW (KIT)

11

PLATE

12

706-73-40360

PLUG

13

O-RING (KIT)

14

BOLT

15

WASHER

16

BLOCK (KIT)

17

PISTON ASS'Y (KIT)

18

SHAFT (KIT)

19

SPRING (KIT)

20

RING (KIT)

21

BALL (KIT)

22

PLATE

23

COVER

24

O-RING (KIT)

25

BEARING

26

BOLT (KIT)

27

GASKET (KIT)

28

BOLT

29

BOLT

30

WASHER

31

706-75-92001

PARKING BRAKE A.

32

07000-13032

O-RING

33

706-75-90190

RING

34

07000-03035

O-RING

35

706-75-72901

BRAKE VALVE ASS'Y

36

706-75-77400

SHUTTLE VALVE ASS'Y

37

01010-50825

BOLT

38

01010-50850

BOLT

39

01602-20825

WASHER

40

01011-51215

BOLT

41

01643-31232

WASHER

42

07000-12010

O-RING

|$44

706-98-05030

DRIVE SHAFT KIT,(EXCEPT JAPAN)

|$45

BEARING

|$46

SHAFT

|$47

WASHER

|$48

HOLDER

|$49

RETAINER

|$50

SCREW

|$51

O-RING

|$52

BLOCK

|$53

PISTON ASS'Y

|$54

SPRING

|$55

RING

|$56

BALL

|$57

O-RING

|$58

BOLT

|$59

GASKET

|$60

O-RING

|$61

SEAL,OIL
