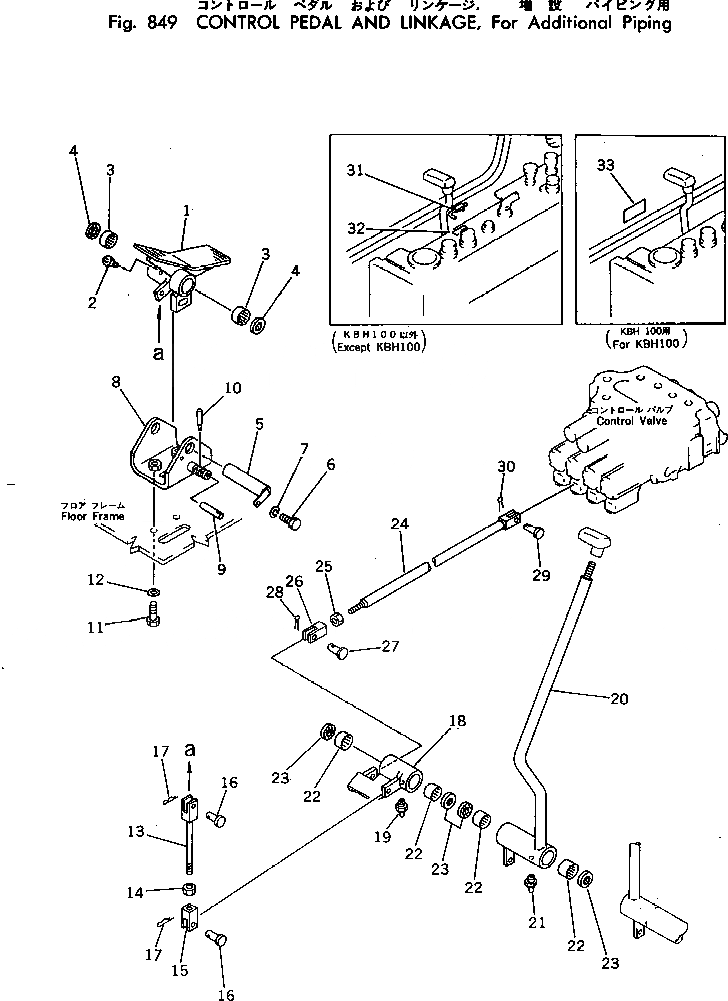

Запчасти Komatsu PC200-2 ПЕДАЛЬ УПРАВЛ-Я И МЕХАНИЗМ (С ДОПОЛН. ГИДРОЛИНИЕЙ) ОПЦИОННЫЕ КОМПОНЕНТЫ

1

205-970-5430

PEDAL

2

07020-00000

FITTING

3

06120-03020

BEARING

4

06122-03004

SEAL

5

205-970-5420

SHAFT

6

01010-50816

BOLT

7

01602-20825

WASHER

8

205-970-5380

BRACKET

9

205-970-5460

PIN

10

202-970-2320

PIN

11

01010-51230

BOLT

12

01643-31232

WASHER

13

04244-41015

ROD

14

01582-11008

NUT

15

04210-21040

YOKE

16

04205-11028

PIN

17

04052-01038

PIN

18

205-970-5370

LEVER

19

07020-00000

FITTING

20

205-970-5360

LEVER

21

07020-00000

FITTING

22

06120-03020

BEARING

23

06122-03004

SEAL

24

205-970-5390

ROD

25

01582-11008

NUT

26

04210-21040

YOKE

27

04205-11028

PIN

28

04050-13018

PIN

29

04205-10628

PIN

30

04050-11610

PIN

31

205-970-5830

LOCK,(EXCEPT KBH100-1)

32

205-970-5820

PLATE, CAUTION,(JAPANESE) (EXCEPT KBH100-1)

32

205-00-66820

PLATE, CAUTION,(ENGLISH) (EXCEPT KBH100-1)

32

205-00-66830

PLATE, CAUTION,(INDONESIAN) (EXCEPT KBH100-1)

32

205-00-66840

PLATE, CAUTION,(GERMAN) (EXCEPT KBH100-1)

32

205-00-66850

PLATE, CAUTION,(ARABIC) (EXCEPT KBH100-1)

33

205-00-66860

PLATE, CAUTION,(ENGLISH) (FOR KBH100-1)

33

205-00-66870

PLATE, CAUTION,(INDONESIAN) (FOR KBH100-1)

33

205-00-66880

PLATE, CAUTION,(GERMAN) (FOR KBH100-1)

33

205-00-66890

PLATE, CAUTION,(ARABIC) (FOR KBH100-1)
