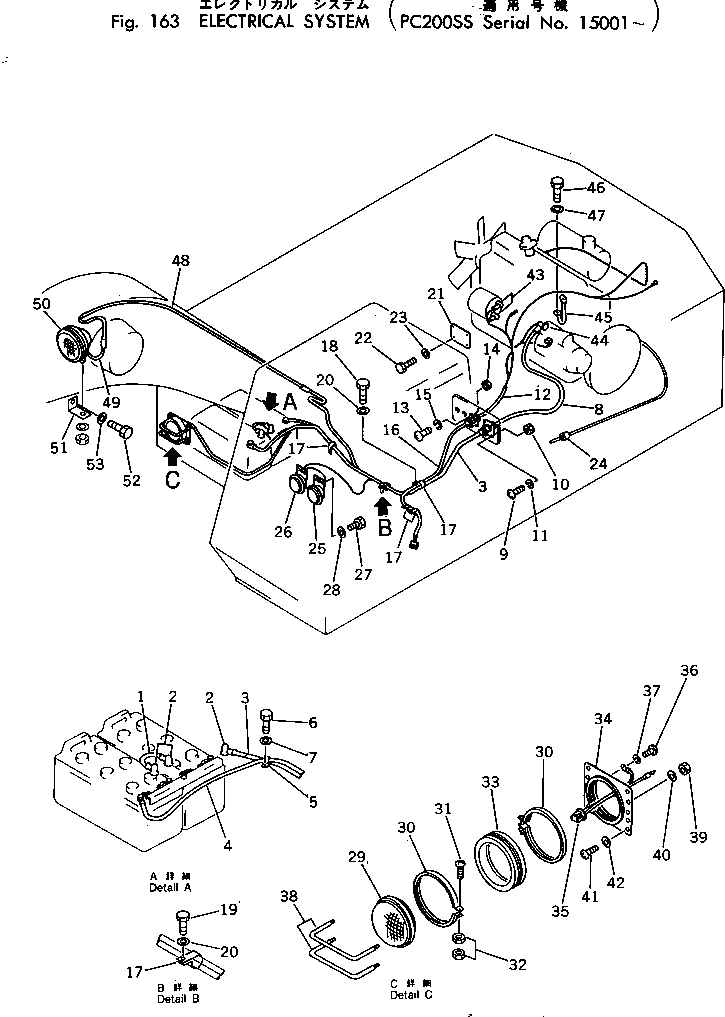

Запчасти Komatsu PC200-2 ЭЛЕКТРИКА (PCSS) КОМПОНЕНТЫ ДВИГАТЕЛЯ И ЭЛЕКТРИКА

1

08028-14011

WIRE, 110MM

2

08038-00035

CAP

3

205-06-81340

WIRE

4

08028-14375

WIRE, 3750MM

4

08028-14350

WIRE, 3500MM,(P.O.C. MODEL) (EXCEPT JAPAN)

5

08036-03014

CLIP

6

01010-51025

BOLT

7

01643-31032

WASHER

8

205-06-81350

WIRE

9

01220-40416

SCREW

10

01580-10403

NUT

11

01601-20410

WASHER

12

205-06-81270

WIRE ASS'Y

13

01220-40316

SCREW

14

01580-10302

NUT

15

01601-20307

WASHER

16

205-06-81280

WIRE ASS'Y

17

08036-03014

CLIP

18

01010-51020

BOLT

19

01010-51025

BOLT

20

01643-31032

WASHER

21

205-06-81360

PLATE

22

01010-51025

BOLT

23

01643-31032

WASHER

24

175-54-33470

PLUG

25

175-06-39170

HORN

26

205-06-64430

HORN

26

175-06-39170

HORN

27

01010-30816

BOLT

28

01643-30823

WASHER

|$30

205-06-62500

LAMP ASS'Y

29

08113-02480

BULB, 80W

30

08128-00004

BAND

31

01220-40420

SCREW

32

01580-10403

NUT

33

08128-00003

HOLDER

34

144-06-13221

BASE

35

175-06-23230

SOCKET

36

01220-40408

SCREW

37

01601-20410

WASHER

38

144-06-13120

GUARD

39

01580-10605

NUT

40

01643-30623

WASHER

41

01220-40816

SCREW

42

01643-30823

WASHER

43

08038-00519

CAP

44

08038-00035

CAP

45

08028-14035

WIRE, 350MM

46

01010-51025

BOLT

47

01643-31032

WASHER

48

205-06-51370

WIRE

49

205-06-51390

CABLE

50

08128-32400

LAMP

50

08113-02480

BULB, 80W

51

203-06-21290

PLATE

52

01010-51430

BOLT

53

01643-31445

WASHER
