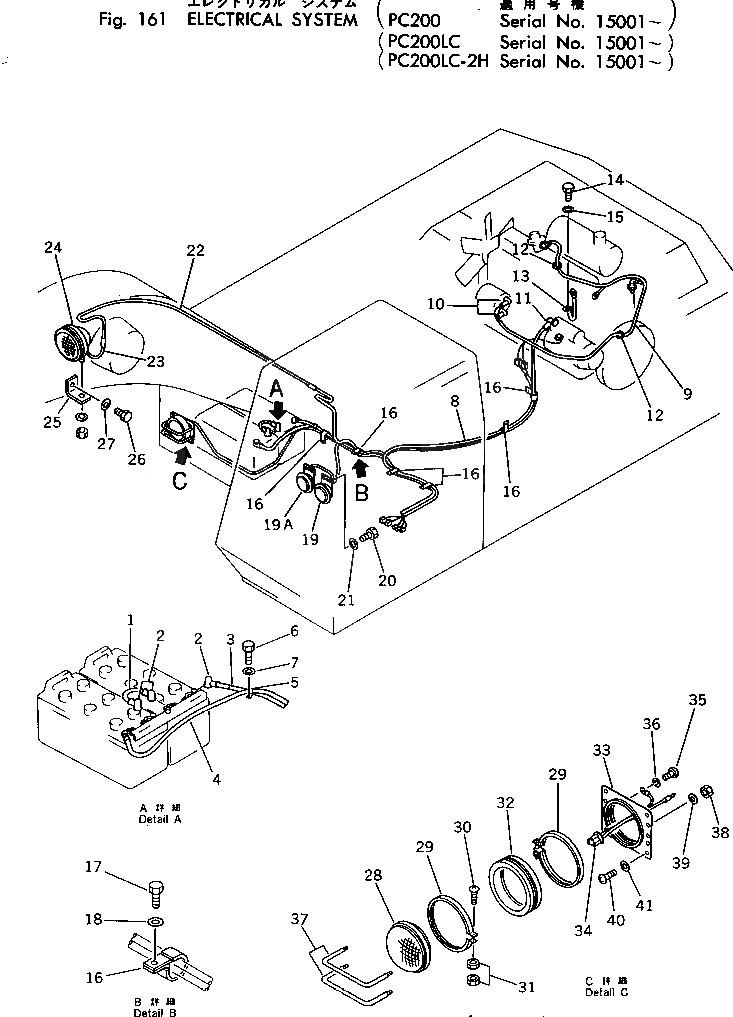

Запчасти Komatsu PC200-2 ЭЛЕКТРИКА (PC) КОМПОНЕНТЫ ДВИГАТЕЛЯ И ЭЛЕКТРИКА

1

08028-14011

WIRE, 110MM

2

08038-00035

CAP

3

08028-14300

WIRE, 3000MM

3

08028-14275

WIRE, 2750MM

4

08028-14375

WIRE, 3750MM

4

08028-14350

WIRE, 3500MM,(P.O.C. MODEL) (EXCEPT JAPAN)

5

08036-03014

CLIP

6

01010-51025

BOLT

7

01643-31032

WASHER

8

205-06-62511

WIRING HARNESS

9

205-06-62551

WIRING HARNESS

10

08038-00519

CAP

11

08038-00035

CAP

12

08034-00414

BAND

13

08028-14035

WIRE, 350MM

14

01010-51025

BOLT

15

01643-31032

WASHER

16

08036-03014

CLIP

17

01010-51025

BOLT

18

01643-31032

WASHER

19

175-06-39170

HORN

19A

205-06-64430

HORN

19A

175-06-39170

HORN

20

01010-30816

BOLT

21

01643-30823

WASHER

22

205-06-51370

WIRE

23

205-06-51390

CABLE

24

08128-32400

LAMP

24

08113-02480

BULB, 80W

25

203-06-21290

PLATE

26

01010-51430

BOLT

27

01643-31445

WASHER

|$32

205-06-62500

LAMP ASS'Y

28

08113-02480

BULB, 80W

29

08128-00004

BAND

30

01220-40420

SCREW

31

01580-10403

NUT

32

08128-00003

HOLDER

33

144-06-13221

BASE

34

175-06-23230

SOCKET

35

01220-40408

SCREW

36

01601-20410

WASHER

37

144-06-13120

GUARD

38

01580-10605

NUT

39

01643-30623

WASHER

40

01220-40816

SCREW

41

01643-30823

WASHER
