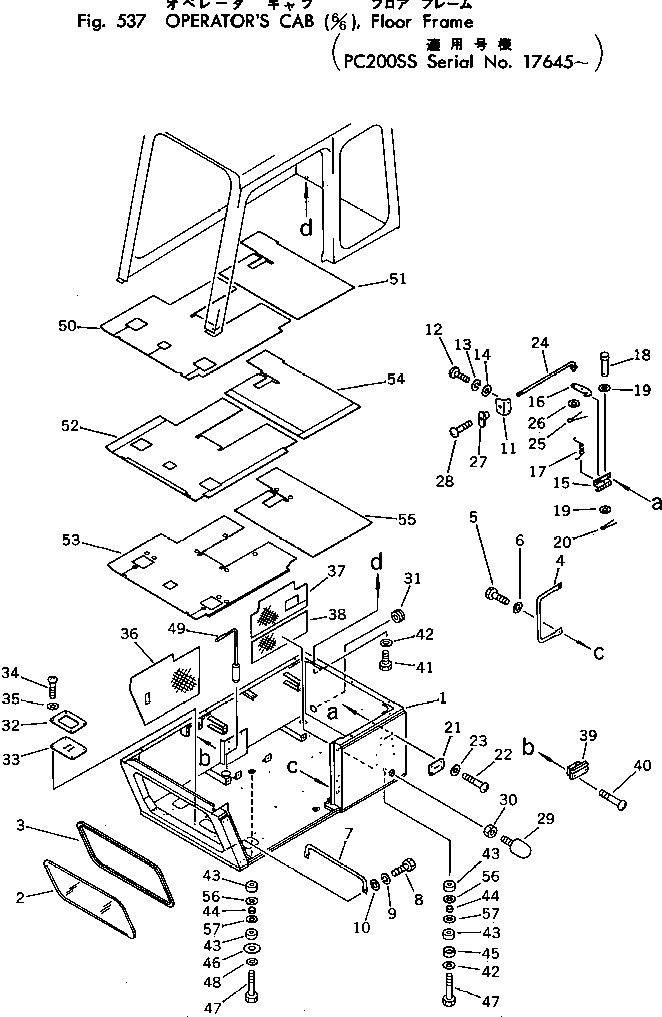

Запчасти Komatsu PC200-2 КАБИНА (/) (ОСНОВН. КОНСТРУКЦИЯ) (PCSS)(№7-) ОСНОВНАЯ РАМА И КАБИНА

|$0

205-54-01020

FLOOR FRAME ASS'Y

1

205-54-88790

FRAME

2

205-54-66610

GLASS

3

205-54-66620

STRIP,WEATHER

4

205-54-66490

HANDLE

5

01010-51030

BOLT

6

01643-31032

WASHER

7

205-54-63370

REST,FOOT

8

01010-50825

BOLT

9

01602-20825

WASHER

10

01641-20812

WASHER

11

205-54-66450

GUIDE

12

01220-40620

SCREW

13

01602-20619

WASHER

14

01641-20608

WASHER

|$15

205-54-65400

CATCHER ASS'Y

15

205-54-63410

BRACKET

16

205-54-63420

HOOK

17

205-54-53580

SPRING

18

178-57-11250

PIN

19

01641-21016

WASHER

20

04050-12018

PIN

21

205-54-66460

COVER

22

01220-40630

SCREW

23

01643-30623

WASHER

24

205-54-66440

ROD

25

04050-12012

PIN

26

01641-20812

WASHER

27

130-43-63320

KNOB

28

01220-40416

SCREW

29

205-54-67960

STOPPER

30

01580-11008

NUT

31

205-54-65980

GROMMET

32

203-54-31260

PLATE

33

203-54-31270

COVER

34

01220-40616

SCREW

35

01643-30623

WASHER

36

205-54-85520

SHEET

37

205-54-85530

SHEET

38

205-54-88770

SHEET

39

205-54-15540

TRAY,ASH

40

01220-40416

SCREW

41

01010-51030

BOLT

42

01643-31032

WASHER

43

203-54-21110

CUSHION

44

205-54-85510

CUSHION

45

201-54-21860

COLLAR

46

205-54-51950

PLATE

47

01010-51675

BOLT

48

01643-31645

WASHER

49

205-54-66161

PIN

50

205-54-88610

MAT

51

205-54-88640

MAT

52

205-54-88620

MAT

53

205-54-88630

MAT

54

205-54-88650

MAT

55

205-54-88660

MAT

56

205-54-67420

SPACER, 3.2MM

56

205-54-67430

SPACER, 2.3MM

57

205-54-67440

SPACER, 3.2MM

57

205-54-67450

SPACER, 2.3MM
