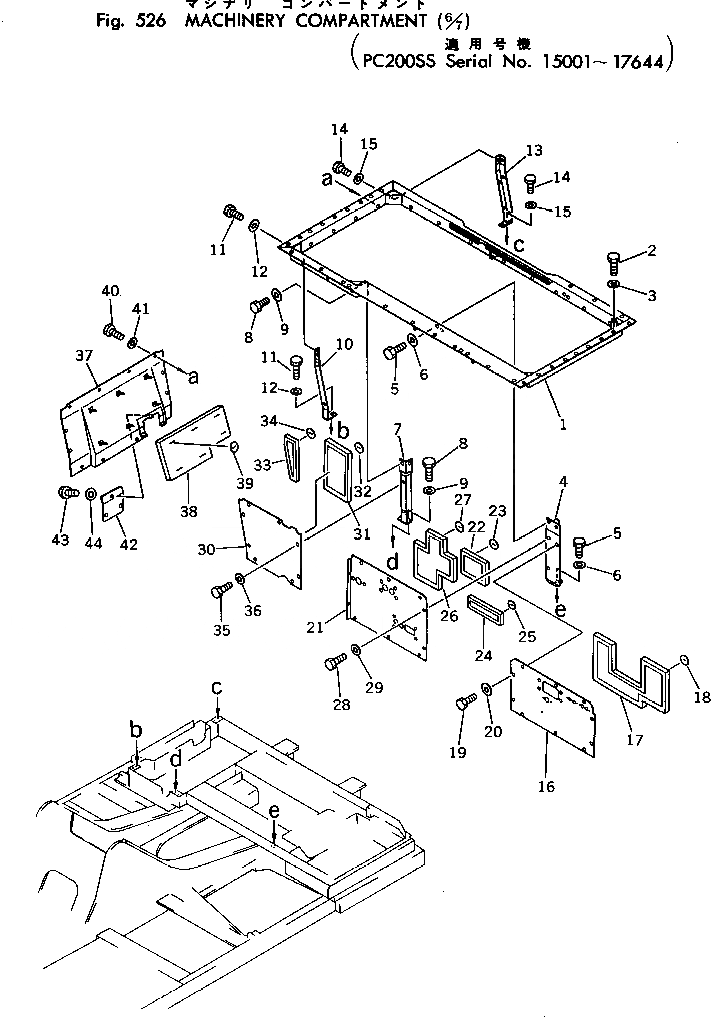

Запчасти Komatsu PC200-2 MACHINERY ОБСТАНОВКА (/7) (PCSS)(№-7) ОСНОВНАЯ РАМА И КАБИНА
№
Артикул
Название
Примечание
Количество
1
205-54-85480
FRAME
2
01010-51230
BOLT
3
01643-31232
WASHER
4
205-54-84660
BRACKET
5
01010-51230
BOLT
6
01643-31232
WASHER
7
205-54-84680
BRACKET
8
01010-51230
BOLT
9
01643-31232
WASHER
10
205-54-84690
BRACKET
11
01010-51230
BOLT
12
01643-31232
WASHER
13
205-54-84710
BRACKET
14
01010-51230
BOLT
15
01643-31232
WASHER
|$15
205-54-85500
COVER ASS'Y
16
205-54-84740
COVER
17
205-54-84820
WOOL,GLASS
18
04431-30000
PLATE
19
01010-51230
BOLT
20
01643-31232
WASHER
|$21
205-54-85600
COVER ASS'Y
21
205-54-84630
COVER
22
205-54-84810
WOOL,GLASS
23
04431-30000
PLATE
24
205-54-84840
WOOL,GLASS
25
04431-30000
PLATE
26
205-54-84870
WOOL,GLASS
27
04431-30000
PLATE
28
01010-51230
BOLT
29
01643-31232
WASHER
|$31
205-54-85700
COVER ASS'Y
30
205-54-84720
DUCT
31
205-54-84790
WOOL,GLASS
32
04431-30000
PLATE
33
205-54-84850
WOOL,GLASS
34
04431-30000
PLATE
35
01010-51230
BOLT
36
01643-31232
WASHER
|$39
205-54-86200
COVER ASS'Y
37
205-54-84650
COVER
38
205-54-84860
WOOL,GLASS
39
04431-30000
PLATE
40
01010-51230
BOLT
41
01643-31232
WASHER
42
205-54-84940
COVER
43
01010-51230
BOLT
44
01643-31232
WASHER
Выбрано товаров: 48
