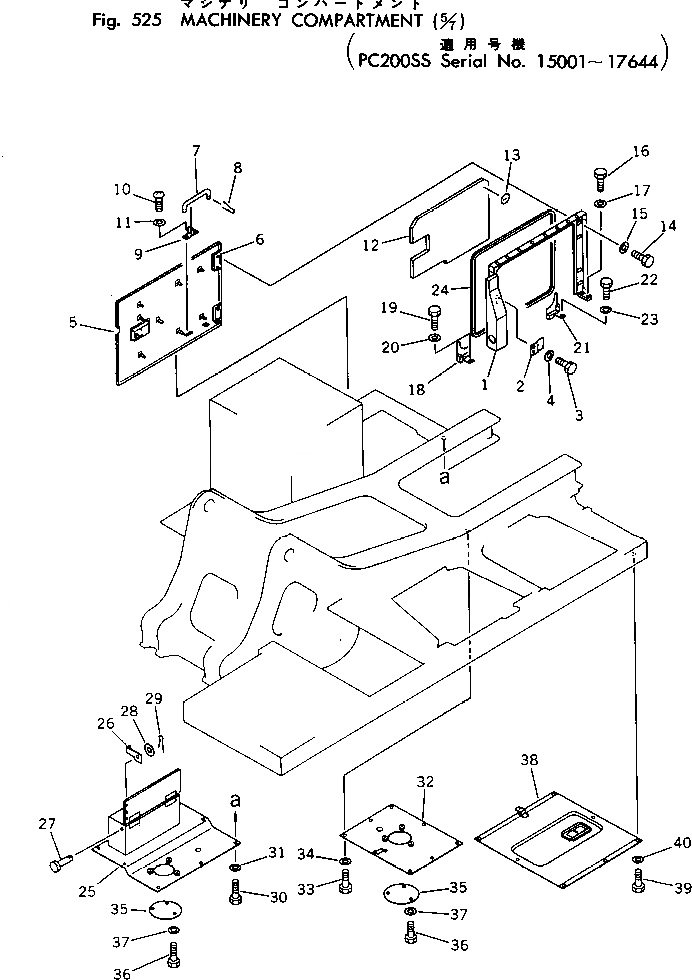

Запчасти Komatsu PC200-2 MACHINERY ОБСТАНОВКА (/7) (PCSS)(№-7) ОСНОВНАЯ РАМА И КАБИНА

|$0

205-54-00140

DOOR ASS'Y

1

205-54-85670

FRAME

2

205-54-88470

PLATE

3

01010-51225

BOLT

4

01643-31232

WASHER

5

205-54-85660

DOOR

6

205-54-64160

HINGE (WELDED)

7

205-54-64140

BAR

8

04050-13018

PIN,COTTER

9

20B-54-12210

SPRING

10

01220-40408

SCREW

11

01641-20405

WASHER

12

205-54-87890

GLASS WOOL

13

04431-30000

PLATE

14

01010-51225

BOLT

15

01643-31232

WASHER

16

01010-51230

BOLT

17

01643-31232

WASHER

18

205-54-85880

COVER

19

01010-51230

BOLT

20

01643-31232

WASHER

21

205-54-85850

COVER

22

01010-51230

BOLT

23

01643-31232

WASHER

24

205-54-87360

SEAL

25

205-54-85540

CASE

26

205-54-88540

PLATE

27

04205-10412

PIN

28

01641-20405

WASHER

29

04050-11008

PIN

30

01010-51230

BOLT

31

01643-31232

WASHER

32

205-54-85840

COVER

33

01010-51230

BOLT

34

01643-31232

WASHER

35

205-54-83760

COVER

36

01010-51025

BOLT

37

01643-31032

WASHER

38

205-54-85740

COVER

39

01010-51230

BOLT

40

01643-31232

WASHER
