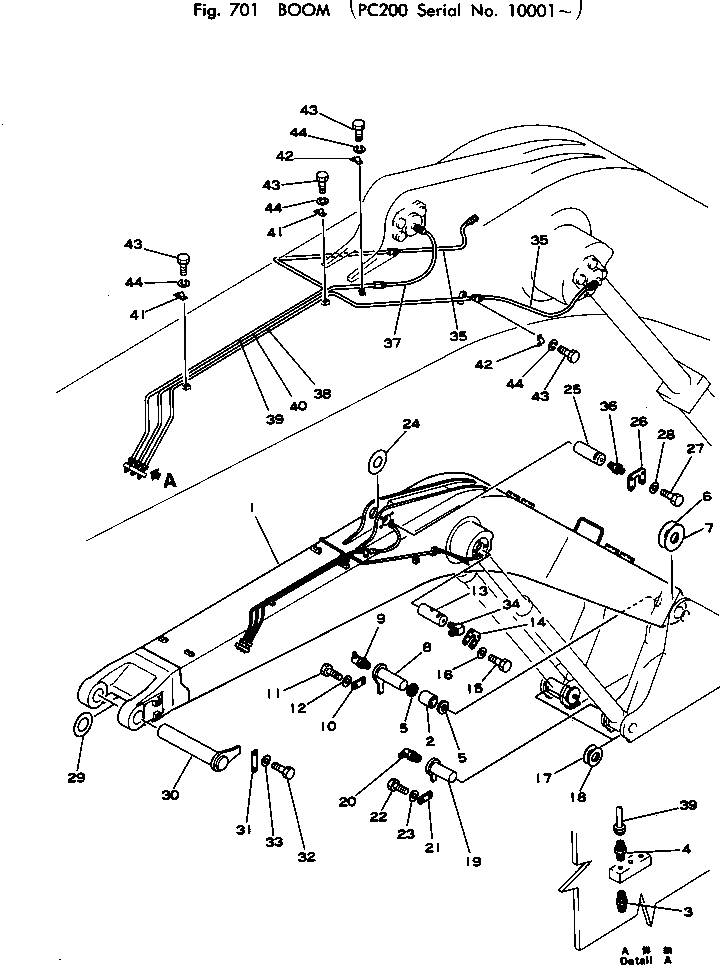

Запчасти Komatsu PC200-1 СТРЕЛА РАБОЧЕЕ ОБОРУДОВАНИЕ

|$0

205-70-00041

BOOM ASS'Y

|$1

205-70-00040

BOOM ASS'Y

1

BOOM

1

BOOM

2

205-70-65221

BUSHING

3

07020-00000

FITTING

4

07213-50813

CONNECTOR

5

07145-00080

SEAL

6

205-70-51490

SPACER, 1.0MM

7

205-70-51510

SPACER, 1.5MM

8

205-70-65190

PIN

9

07020-00675

FITTING

10

176-72-41230

PLATE

11

01010-31435

BOLT

12

01643-31445

WASHER

13

206-70-45170

PIN

14

206-70-45260

LOCK

15

01010-32045

BOLT

16

01643-32060

WASHER

17

205-70-51520

SPACER, 1.0MM

18

205-70-51530

SPACER, 1.5MM

19

206-70-45181

PIN

19

206-70-45180

PIN

20

07020-00675

FITTING

21

176-72-41230

PLATE

22

01010-31435

BOLT

23

01643-31445

WASHER

24

205-70-51450

SPACER, 1.0MM

25

205-70-65160

PIN

26

09256-08014

LOCK

27

01010-32045

BOLT

28

01643-32060

WASHER

29

207-70-11340

SPACER, 0.8MM

30

205-70-65180

PIN

31

205-70-61560

PLATE

32

01010-32045

BOLT

33

01643-32060

WASHER

34

205-70-51380

ELBOW

35

205-70-51360

HOSE, 540MM

36

205-70-51390

NIPPLE

37

205-70-51370

HOSE

38

205-70-65230

TUBE

39

205-70-65250

TUBE

40

205-70-65240

TUBE

41

205-70-51410

CLIP

42

205-70-51420

CLIP

43

01010-30612

BOLT

44

01602-00619

WASHER
