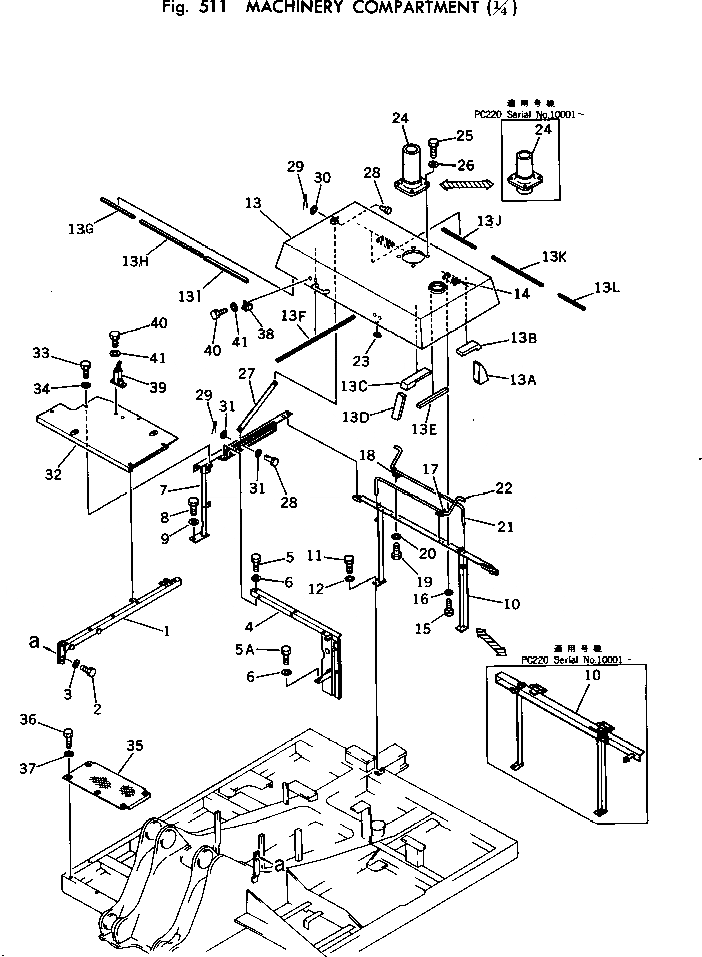

Запчасти Komatsu PC200-1 MACHINERY ОБСТАНОВКА (/) ОСНОВНАЯ РАМА И КАБИНА

1

205-54-64191

FRAME

2

01010-31230

BOLT

3

01643-31232

WASHER

4

205-54-64232

FRAME

5

01010-31230

BOLT

5A

01010-31240

BOLT

5A

01010-31230

BOLT

6

01643-31232

WASHER

7

205-54-64243

FRAME

8

01010-31230

BOLT

9

01643-31232

WASHER

10

205-54-64252

FRAME

10

206-54-44240

FRAME

11

01010-31230

BOLT

12

01643-31232

WASHER

13

205-54-64293

HOOD

13

206-54-44112

HOOD

13A

205-54-64660

SEAT

13A

206-54-44290

SEAT

13B

205-54-64670

SEAT

13B

206-54-44310

SEAT

13C

205-54-64680

SEAT

13C

206-54-44320

SEAT

13D

205-54-64690

SEAT

13D

206-54-44330

SEAT

13E

205-54-64710

SEAT

13F

205-54-64720

SEAT

13F

206-54-44340

SEAT

13G

205-54-64730

SEAT

13G

206-54-44350

SEAT

13H

205-54-64740

SEAT

13H

206-54-44360

SEAT

13I

205-54-64750

SEAT

13I

206-54-44370

SEAT

13J

205-54-64760

SEAT

13J

206-54-44380

SEAT

13K

205-54-64770

SEAT

13K

206-54-64760

SEAT

13L

205-54-64780

SEAT

14

205-54-64160

HINGE (WELDED)

15

01010-31230

BOLT

16

01643-31232

WASHER

17

205-54-64370

BRACKET

18

205-54-64380

BRACKET

19

01010-31230

BOLT

20

01643-31232

WASHER

21

205-54-64342

BAR

21

206-54-44131

BAR

22

205-54-64352

BAR

22

206-54-44141

BAR

23

205-54-63250

DAMPER

24

205-01-68110

PIPE

24

206-01-42210

PIPE

25

01010-31230

BOLT

26

124-54-26540

WASHER

27

205-54-64331

STAY

27

206-54-44181

STAY

28

04205-01035

PIN

29

04050-03018

PIN

30

01641-21016

WASHER

31

175-54-88110

WASHER

32

205-54-64261

COVER

32

206-54-44121

COVER

33

01010-31230

BOLT

34

01643-31232

WASHER

35

205-54-64390

COVER

36

01010-31230

BOLT

37

01643-31232

WASHER

38

581-22-12420

SUPPORT

39

205-54-12860

CATCHER

40

01010-30820

BOLT

41

01605-00818

WASHER
