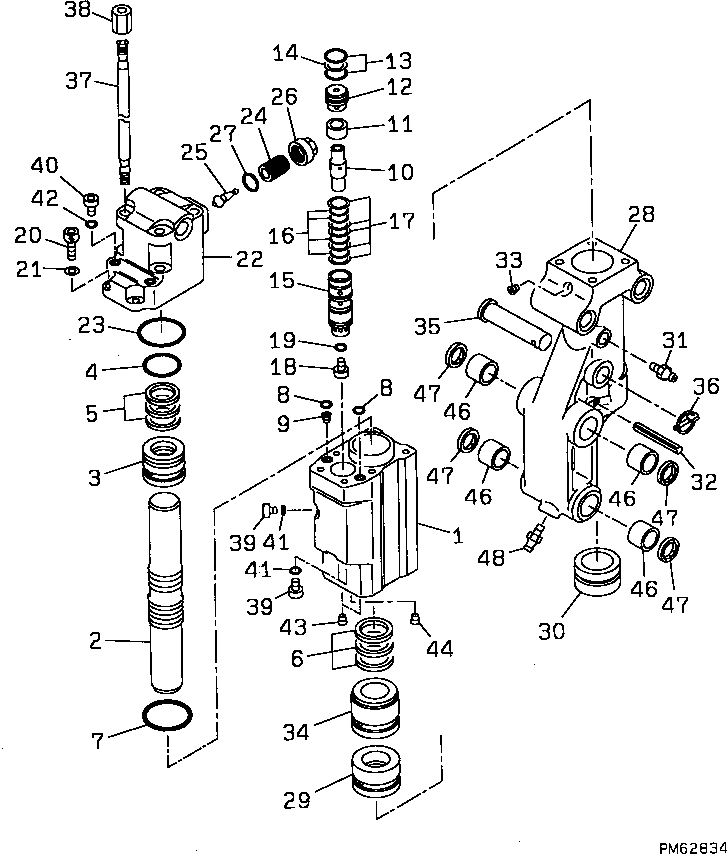

Запчасти Komatsu PC20-7 ГИДРОМОЛОТ (ВНУТР. ЧАСТИ)(№-) РАБОЧЕЕ ОБОРУДОВАНИЕ
№
Артикул
Название
Примечание
Количество
1
20P-971-7110
CYLINDER
2
20P-971-7120
PISTON
3
20P-971-7130
SLEEVE
4
20P-971-7140
O-RING (KIT)
5
20P-971-7150
U-PACKING (KIT)
6
20P-971-7160
U-PACKING (KIT)
7
20P-971-7170
O-RING (KIT)
8
20P-971-7180
O-RING (KIT)
9
20P-971-7190
PLUG
10
20P-971-7210
VALVE
11
20P-971-7220
SLEEVE
12
20P-971-7230
PLUG
13
20P-971-7240
O-RING (KIT)
14
20P-971-7250
RING,BACK-UP (KIT)
15
20P-971-7260
LINER
16
20P-971-7270
O-RING (KIT)
17
20P-971-7280
RING,BACK-UP (KIT)
18
20P-971-7290
PLUG,LINER
19
20P-971-7310
O-RING (KIT)
20
20P-971-7320
BOLT
21
20P-971-7330
WASHER,SPRING
22
20P-971-7340
CAP,BACK
23
20P-971-7350
O-RING (KIT)
24
20P-971-7360
BODY,VALVE
25
20P-971-7370
VALVE (KIT)
26
20P-971-7380
CAP
27
20P-971-7390
O-RING (KIT)
28
20P-970-7260
CAP,FRONT
29
20P-971-7410
BUSHING
30
20P-971-7420
BUSHING
31
20P-971-7430
FITTING,GREASE
32
20P-971-7470
PIN,SPRING
33
20P-971-7480
PLUG
34
20P-971-7440
SLEEVE
35
20P-971-7450
PIN
36
20P-971-7460
PIN,RING
37
20P-971-7490
ROD,SIDE
38
20P-971-7510
NUT
39
20P-971-7520
PLUG
40
20P-971-7530
PLUG
41
20P-971-7540
O-RING
42
20P-971-7550
O-RING
43
20P-971-7560
PLUG
44
20P-971-7570
PLUG
45
20P-70-71230
BUSHING
46
07144-10304
BUSHING
47
07145-00035
SEAL
48
07020-00000
FITTING,GREASE
KIT
20P-970-7271
SERVICE KIT
Выбрано товаров: 49
