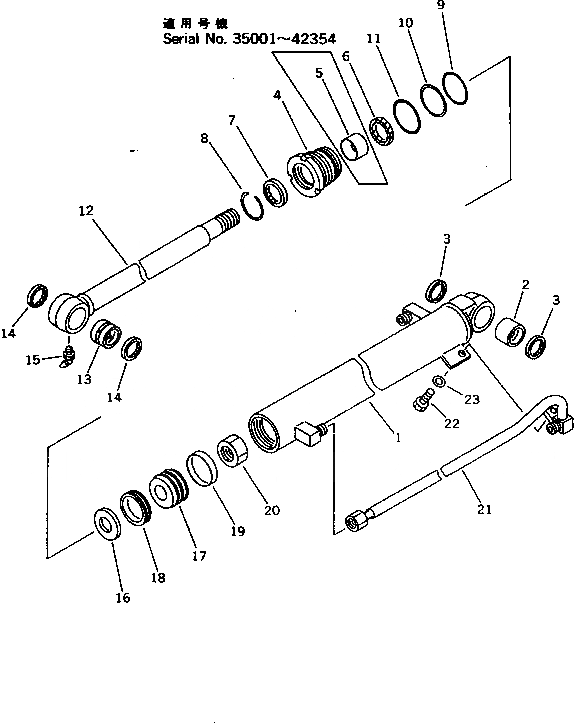

Запчасти Komatsu PC20-7 ЦИЛИНДР КОВША РАБОЧЕЕ ОБОРУДОВАНИЕ

G1

20P-63-X2131

CYLINDER GROUP

|1

20P-63-02131

CYLINDER ASS'Y

|1

20P-63-02130

CYLINDER ASS'Y

|1

20N-63-02231

CYLINDER ASS'Y

1

20P-63-72241

CYLINDER

|1

20P-63-72240

CYLINDER

|1

20N-63-77141

CYLINDER

2

07143-10304

BUSHING

|2

07143-10303

BUSHING

3

07145-00035

SEAL,DUST (K3)

|3

07145-00030

SEAL,DUST (K3)

4

707-29-60320

HEAD,CYLINDER

|4

707-29-60760

HEAD,CYLINDER

5

07177-03525

BUSHING

6

707-51-35210

PACKING,ROD (K3)

7

175-63-75190

SEAL,DUST (K3)

8

07179-12047

RING,SNAP

9

07000-12055

O-RING (K3)

10

07146-02056

RING,BACK-UP (K3)

11

07000-02060

O-RING (K3)

12

20P-63-72120

ROD,PISTON

|12

20N-63-77121

ROD,PISTON

13

07144-10304

BUSHING

|13

07143-10303

BUSHING

14

07145-00035

SEAL,DUST (K3)

|14

07145-00030

SEAL,DUST (K3)

15

07020-00675

FITTING,GREASE

16

707-40-90040

RETAINER

17

707-36-60150

PISTON

18

707-44-60180

RING,PISTON (K3)

19

707-39-60190

RING,WEAR (K3)

20

01580-02722

NUT

21

20P-63-72370

TUBE

|21

20P-63-72270

TUBE

|21

20N-63-77171

TUBE

22

01010-51020

BOLT

23

01643-31032

WASHER
