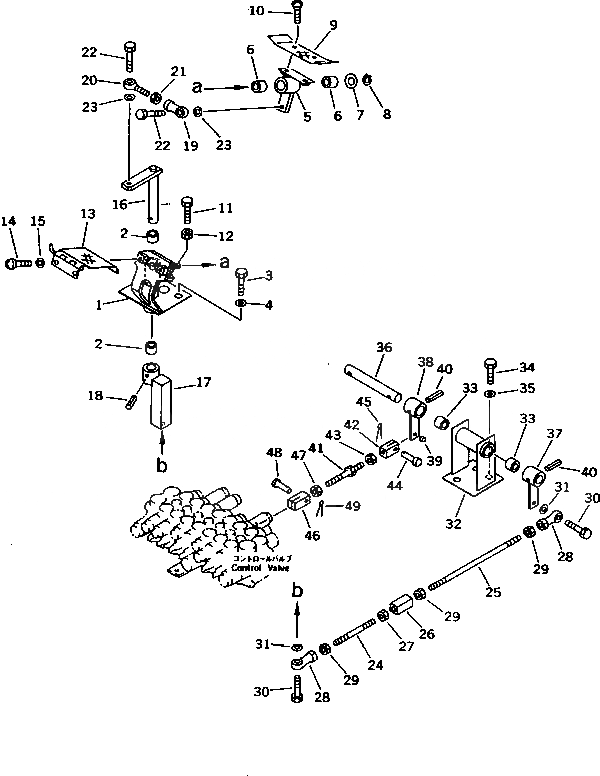

Запчасти Komatsu PC20-7 НАВЕСН. ОБОРУД ПЕДАЛЬ И МЕХАНИЗМ(№-) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

1

20N-973-7212

BRACKET

2

09350-02020

BUSHING

3

01010-51025

BOLT

4

01643-31032

WASHER

5

20N-43-73180

LEVER

6

09350-02020

BUSHING

7

01643-31445

WASHER

8

04064-01410

RING,SNAP

9

20N-43-73170

PLATE

10

01225-40816

SCREW

11

01016-50830

BOLT

12

01580-10806

NUT

13

20N-43-73191

PLATE,LOCK

|13

09455-13016

HINGE (WELDED)

14

01235-40816

SCREW

15

01643-30823

WASHER

16

20P-973-7410

LEVER

17

20P-973-7420

LEVER

18

04025-00632

PIN,SPRING

19

04250-80847

END,ROD

20

04252-20853

END,ROD

21

01580-10806

NUT

22

01010-50825

BOLT

23

01643-30823

WASHER

24

20P-973-7440

ROD

25

04245-40828

ROD

26

20C-43-12850

BACKLE,TURN

27

01508-40805

NUT,L.H. THREAD

28

04250-80847

END,ROD

29

01580-10806

NUT

30

01010-50825

BOLT

31

01643-30823

WASHER

32

20N-973-7233

BRACKET

33

09350-02020

BUSHING

34

01010-51020

BOLT

35

01643-31032

WASHER

36

20N-973-7242

SHAFT

37

20P-973-7430

LEVER

38

20N-973-7261

LEVER

39

06600-00805

BUSHING

40

04025-00632

PIN,SPRING

41

20N-43-42571

ROD

42

04210-20832

YOKE

43

01580-10806

NUT

44

04205-10822

PIN

45

04050-12015

PIN,COTTER

46

20N-43-41260

YOKE

47

01508-40805

NUT,L.H. THREAD

48

04205-10520

PIN

49

04050-11210

PIN,COTTER
