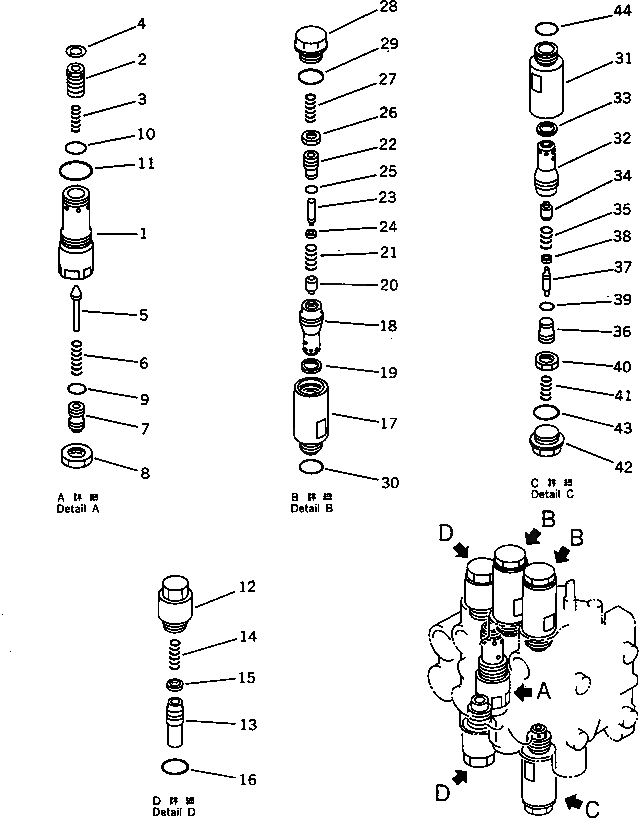

Запчасти Komatsu PC20-6 3-Х СЕКЦИОНН. КОНТРОЛЬН. КЛАПАН (/) (ДЛЯ НАКЛОНЯЕМ. МЕХАНИЧ. ANGLE DOZER)(№9-) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

709-33-12500

VALVE ASS'Y

|1

700-28-56000

RELIEF VALVE ASS'Y,MAIN RELIEF

1

SLEEVE

2

VALVE

3

700-20-51430

SPRING

4

700-20-51240

RING

5

700-80-61190

POPPET

6

700-20-51350

SPRING

7

700-20-51340

SCREW

8

01583-11408

NUT

9

07000-02011

O-RING

10

700-22-11410

O-RING

11

07002-02434

O-RING

|12

709-30-61100

VALVE ASS'Y,SUCTION

12

709-30-61110

SLEEVE

13

VALVE

14

700-20-62170

SPRING

15

SEAL

16

07002-02034

O-RING

|17

709-30-64101

VALVE ASS'Y,SUCTION AND SAFETY

17

709-30-62110

SLEEVE

18

VALVE

19

SEAL

20

POPPET

21

SPRING

22

SCREW

23

PISTON

24

SEAL

25

O-RING

26

NUT

27

700-20-62170

SPRING

28

709-30-62150

PLUG

29

07002-12034

O-RING

30

07002-02034

O-RING

|31

709-30-63702

VALVE ASS'Y,SUCTION AND SAFETY

31

709-30-62110

SLEEVE

32

VALVE

33

SEAL

34

POPPET

35

SPRING

36

SCREW

37

PISTON

38

SEAL

39

O-RING

40

NUT

41

700-20-62170

SPRING

42

709-30-62150

PLUG

43

07002-12034

O-RING

44

07002-02034

O-RING
