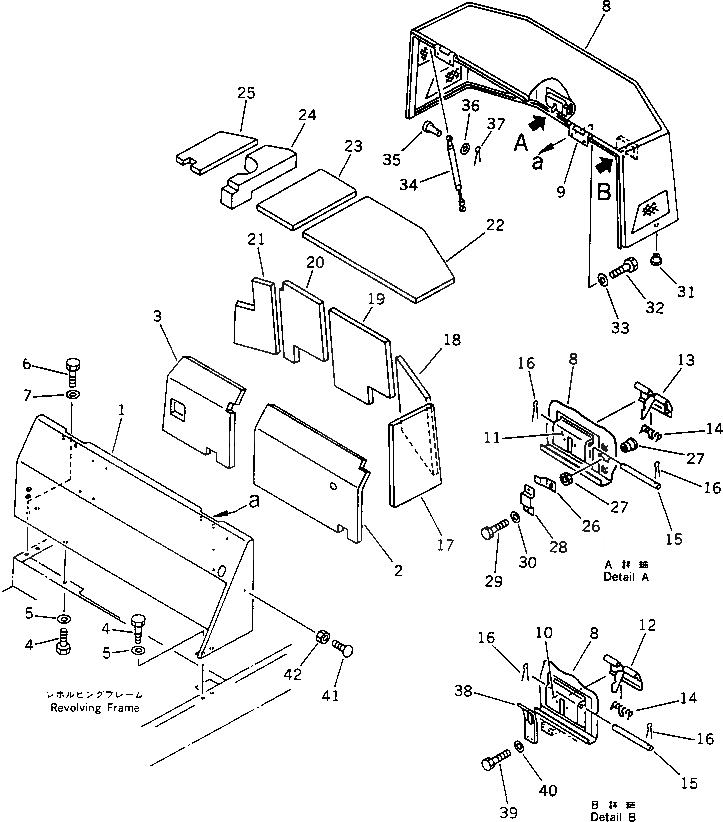

Запчасти Komatsu PC20-6 КАБИНА (/)(№9-) ЧАСТИ КОРПУСА

|1

20S-54-31302

COVER ASS'Y

1

COVER

2

20S-54-31321

SHEET

3

20S-54-31330

SHEET

4

01010-51030

BOLT

5

01643-31032

WASHER

6

01010-51435

BOLT

7

01643-31445

WASHER

|8

20S-54-31400

HOOD ASS'Y

8

HOOD

9

20S-54-31160

HINGE (WELDED)

10

20S-54-21440

COVER (WELDED)

11

20S-54-25140

COVER (WELDED)

12

20S-54-31120

LEVER

13

20S-54-34120

LEVER

14

20T-54-26430

SPRING

15

20S-54-21460

PIN

16

04050-13018

PIN,COTTER

17

20S-54-31232

SHEET

18

20S-54-31241

SHEET

19

20S-54-31261

SHEET

20

20S-54-36320

SHEET

21

20S-54-31272

SHEET

22

20S-54-31291

SHEET

23

20S-54-31221

SHEET

24

20S-54-31211

SHEET

25

20S-54-31350

SHEET

26

20R-54-23240

PLATE

27

20N-54-41830

LOCK ASS'Y

28

20T-54-28130

COVER

29

01010-50812

BOLT

30

01643-30823

WASHER

31

203-54-32260

STOPPER

32

01010-51025

BOLT

33

01643-31032

WASHER

34

20U-54-11631

SPRING,GAS

35

04205-10828

PIN

36

01641-20812

WASHER

37

04050-12015

PIN,COTTER

38

20S-54-31361

LOCK

39

01010-51025

BOLT

40

01643-31032

WASHER

41

20T-54-27591

STOPPER

42

01580-11210

NUT
