Запчасти Komatsu PC20-6 КАБИНА (/)(№-9) ЧАСТИ КОРПУСА

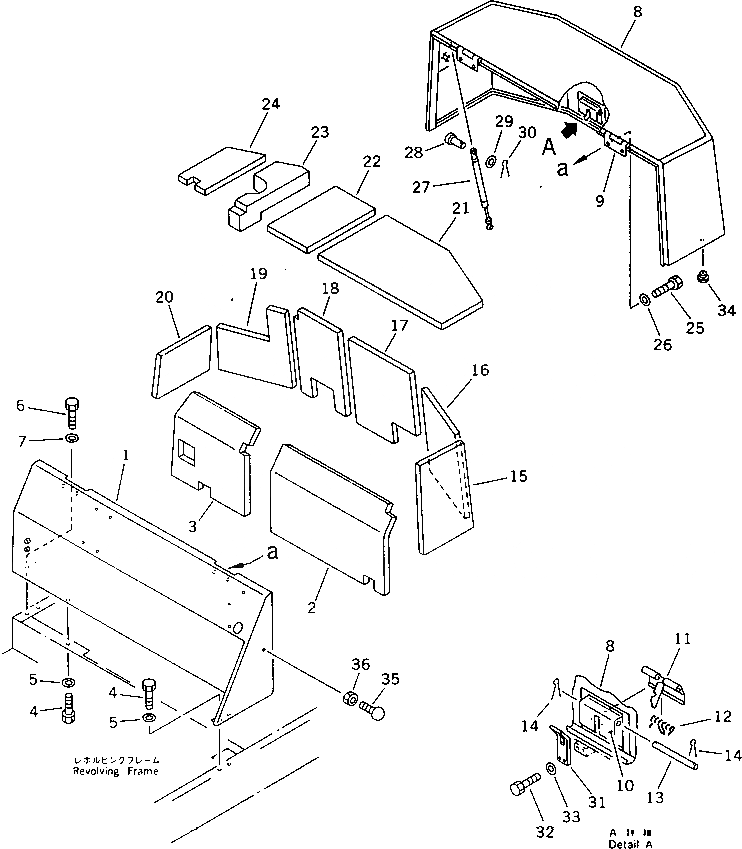

Схема запчастей Komatsu PC20-6 - КАБИНА (/)(№-9) ЧАСТИ КОРПУСА

Артикул

Название

Примечание

Количество

|1

20S-54-31302

COVER ASS'Y

|1

20S-54-31301

COVER ASS'Y

1

20S-54-31311

COVER

2

20S-54-31320

SHEET

3

20S-54-31330

SHEET

4

01010-51030

BOLT

5

01643-31032

WASHER

6

01010-51435

BOLT

7

01643-31445

WASHER

|8

20S-54-31101

HOOD ASS'Y

8

HOOD

9

20S-54-31160

HINGE (WELDED)

10

20S-54-21440

COVER (WELDED)

11

20S-54-31120

LEVER

12

20T-54-26430

SPRING

13

20S-54-21460

PIN

14

04050-13018

PIN,COTTER

15

20S-54-31231

SHEET

16

20S-54-31241

SHEET

17

20S-54-31261

SHEET

18

20S-54-31251

SHEET

19

20S-54-31271

SHEET

20

20S-54-31281

SHEET

21

20S-54-31291

SHEET

22

20S-54-31221

SHEET

23

20S-54-31211

SHEET

24

20S-54-31350

SHEET

25

01010-51025

BOLT

26

01643-31032

WASHER

27

20U-54-11631

SPRING,GAS

|27

20U-54-11630

SPRING,GAS

28

04205-10828

PIN

29

01641-20812

WASHER

30

04050-12015

PIN,COTTER

31

20S-54-31361

LOCK

32

01010-51025

BOLT

33

01643-31032

WASHER

34

203-54-32260

STOPPER

35

20T-54-27591

STOPPER,(FOR CAB)

36

01580-11210

NUT,(FOR CAB)

Выбрано товаров: 40
