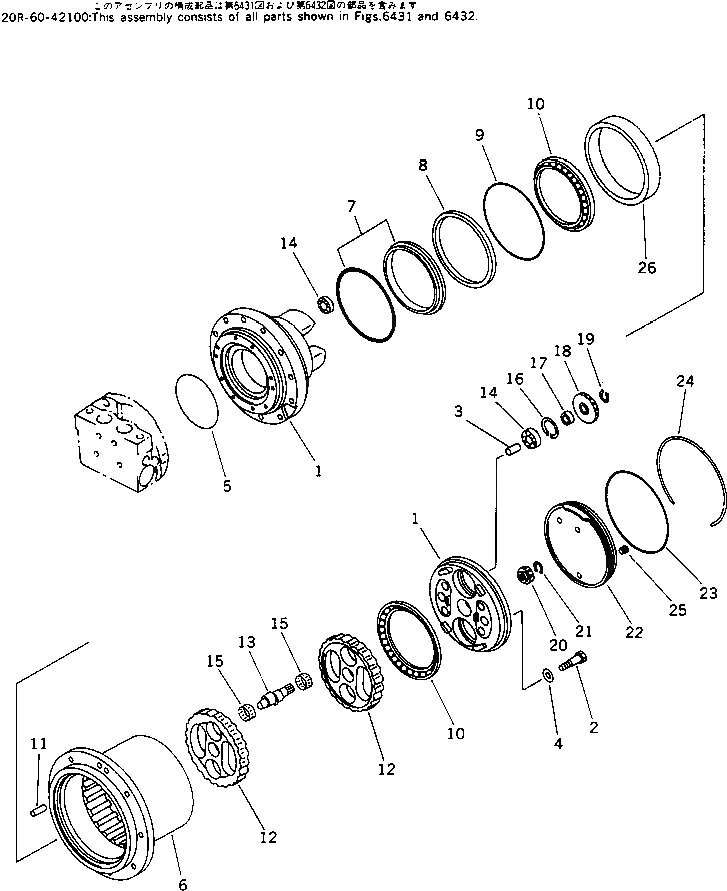

Запчасти Komatsu PC20-6 МОТОР ХОДА (/)(№-) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

20R-60-42100

TRAVEL MOTOR ASS'Y

|1

TZ352A1102-00

SPINDLE KIT

|1

TZ352A1132-00

SPINDLE ASS'Y

2

01252-31240

BOLT,REAMER

3

TZ700C1015-00

PIN

4

TZSW-M12

WASHER,LOCK

5

TZJW1516-G26-9

O-RING (KIT)

6

TZ310B1001-01

HUB

7

TZES100-154-A

SEAL,FLOATING (KIT)

8

TZ310B1027-00

PIECE,DISTANCE

9

07000-15185

O-RING (KIT)

10

TZ310B1021-00

BEARING,BALL

11

TZ310B1017-00

PIN

|12

TZ350A1104-00

RV GEAR ASS'Y

12

TZ350A1204-00

RV GEAR KIT,(2PIS)

13

TZ310B1009-00

SHAFT,CRANK

14

TZ310B1022-00

BEARING,ROLLER

15

TZ310B1023-00

BEARING,ROLLER

16

TZ310B1013-00

SNAP RING KIT,(12KINDS)

17

TZ550A1014-00

PIECE,DISTANCE

18

TZ350A1107-00

SPUR GEAR KIT,(2PIS)

19

04064-02212

RING,SNAP

20

TZ350A1006-00

GEAR,INPUT

21

04064-01410

RING,SNAP

22

TZ310B1008-00

COVER

23

07000-15170

O-RING (KIT)

24

TZ300A1018-00

RING

25

TZGM3-8

PLUG

26

TZ310B1020-00

COLLAR

|26

TZ352A9000-00

SEAL KIT

|26

TZJB2401-P22-9

O-RING

|26

07000-12012

O-RING

|26

TZ15Z-17-35-8

SEAL,OIL

|26

TZJW1516-G26-9

O-RING

|26

TZES100-154-A

SEAL,FLOATING

|26

07000-15185

O-RING

|26

07000-15170

O-RING
