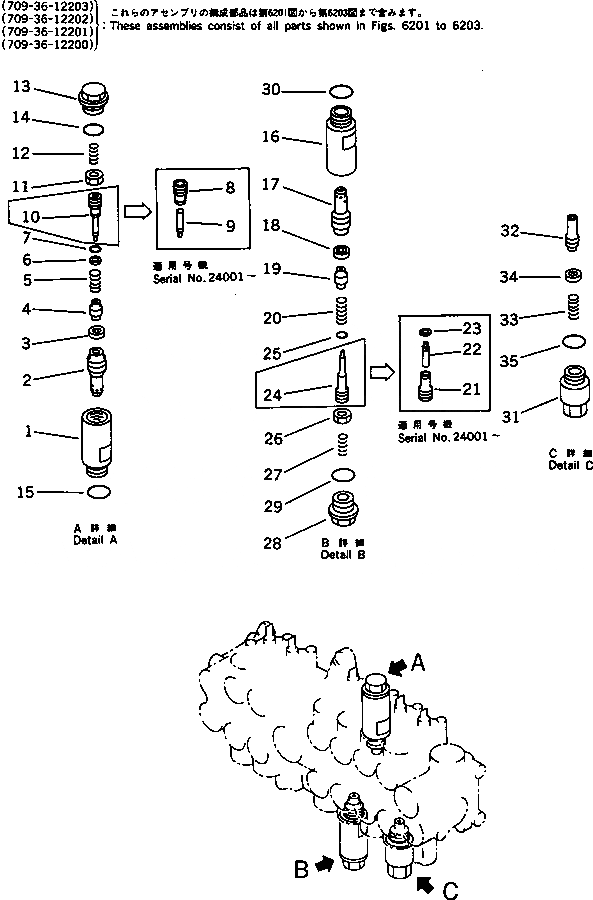

Запчасти Komatsu PC20-6 6-СЕКЦИОНН. УПРАВЛЯЮЩ. КЛАПАН (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

709-36-12203

VALVE ASS'Y

|$1

709-36-12202

VALVE ASS'Y

|$2

709-36-12201

VALVE ASS'Y

|$3

709-36-12200

VALVE ASS'Y

|$4

709-30-63702

VALVE ASS'Y

|$5

709-30-63701

VALVE ASS'Y

|$6

709-30-63700

VALVE ASS'Y

1

709-30-62110

SLEEVE

2

VALVE

2

VALVE

3

SEAL

4

POPPET

4

POPPET

5

SPRING

5

SPRING

6

SEAL

7

O-RING

8

SCREW

9

PISTON

10

PISTON

10

PISTON

11

NUT

12

700-20-62170

SPRING

13

709-30-62150

PLUG

14

07002-12034

O-RING

15

07002-02034

O-RING

|$26

709-30-64500

VALVE ASS'Y

|$27

709-30-62400

VALVE ASS'Y

16

709-30-62110

SLEEVE

17

VALVE

17

VALVE

18

SEAL

19

POPPET

19

POPPET

20

SPRING

21

SCREW

22

PISTON

23

SEAL

24

PISTON

24

PISTON

25

O-RING

26

NUT

27

700-20-62170

SPRING

28

709-30-62150

PLUG

29

07002-12034

O-RING

30

07002-02034

O-RING

|$46

709-30-61100

VALVE ASS'Y,SUCTION

31

709-30-61110

SLEEVE

32

VALVE

33

700-20-62170

SPRING

34

SEAL

35

07002-02034

O-RING
