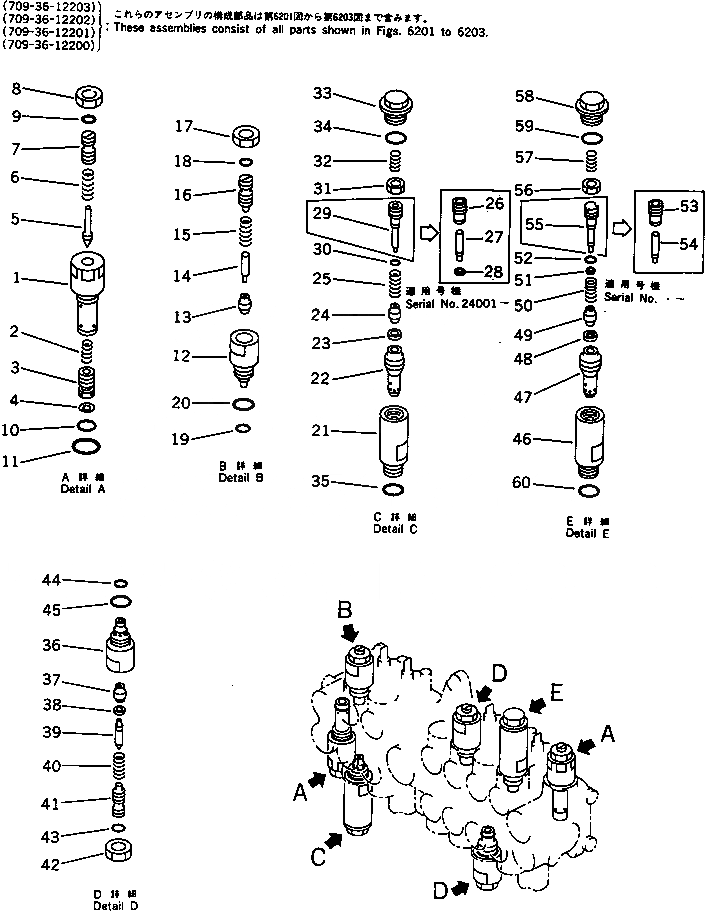

Запчасти Komatsu PC20-6 6-СЕКЦИОНН. УПРАВЛЯЮЩ. КЛАПАН (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

709-36-12203

VALVE ASS'Y

|$1

709-36-12202

VALVE ASS'Y

|$2

709-36-12201

VALVE ASS'Y

|$3

709-36-12200

VALVE ASS'Y

|$4

700-28-55000

VALVE ASS'Y,RELIEF

1

SLEEVE

2

700-20-51430

SPRING

3

VALVE

4

700-20-51240

RING

5

700-80-61190

POPPET

6

700-20-51350

SPRING

7

700-20-51340

SCREW

8

01583-11408

NUT

9

07000-02011

O-RING

10

700-22-11410

O-RING

11

07002-02434

O-RING

|$16

709-30-65800

VALVE ASS'Y,SAFETY

12

SLEEVE

13

POPPET

13

POPPET

14

PISTON

15

SPRING

16

SCREW

17

NUT

18

O-RING

19

709-32-11840

O-RING

20

07002-02034

O-RING

|$27

709-30-63602

VALVE ASS'Y,SUCTION AND SAFETY

|$28

709-30-63201

VALVE ASS'Y,SUCTION AND SAFETY

|$29

709-30-63200

VALVE ASS'Y,SUCTION AND SAFETY

21

709-30-62110

SLEEVE

22

VALVE

22

VALVE

23

SEAL

24

POPPET

24

POPPET

25

SPRING

25

SPRING

26

SCREW

27

PISTON

28

SEAL

29

PISTON

29

PISTON

30

O-RING

31

NUT

32

700-20-62170

SPRING

33

709-30-62150

PLUG

34

07002-12034

O-RING

35

07002-02034

O-RING

|$49

709-30-66200

VALVE ASS'Y,SAFETY

36

SLEEVE

37

POPPET

37

POPPET

38

SEAL

39

PISTON

40

SPRING

41

SCREW

42

NUT

43

O-RING

44

709-32-11840

O-RING

45

07002-02034

O-RING

|$61

709-30-63602

VALVE ASS'Y,SUCTION AND SAFETY

|$62

709-30-63601

VALVE ASS'Y,SUCTION AND SAFETY

|$63

709-30-63600

VALVE ASS'Y,SUCTION AND SAFETY

46

709-30-62110

SLEEVE

47

VALVE

47

VALVE

48

SEAL

49

POPPET

49

POPPET

50

SPRING

50

SPRING

51

SEAL

52

O-RING

53

SCREW

54

PISTON

55

PISTON

55

PISTON

56

NUT

57

700-20-62170

SPRING

58

709-30-62150

PLUG

59

07002-12034

O-RING

60

07002-02034

O-RING
