Запчасти Komatsu PC20-6 ПАНЕЛЬ ПРИБОРОВ КОМПОНЕНТЫ ДВИГАТЕЛЯ И ЭЛЕКТРИКА

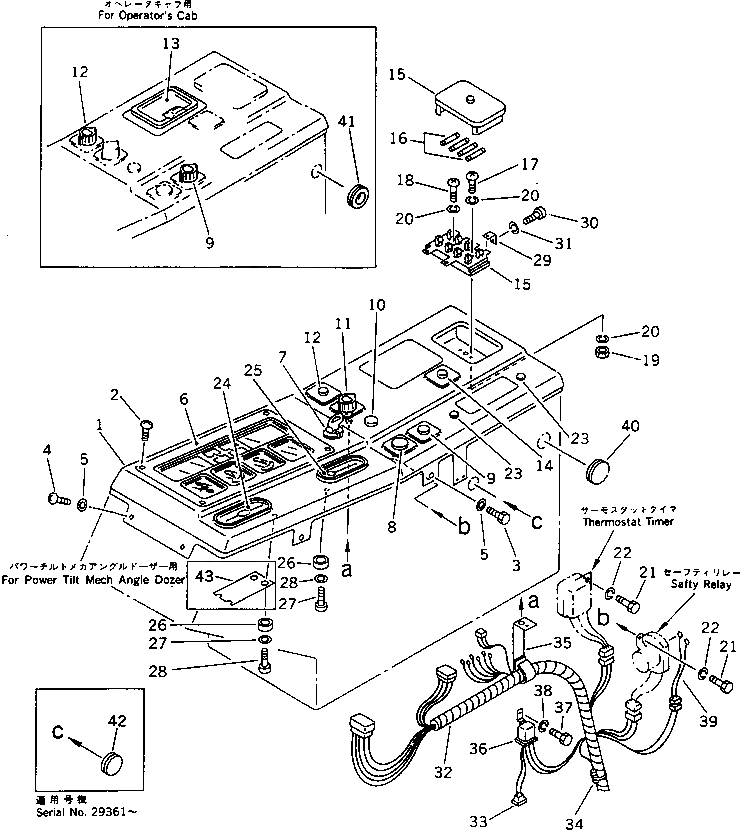

Схема запчастей Komatsu PC20-6 - ПАНЕЛЬ ПРИБОРОВ КОМПОНЕНТЫ ДВИГАТЕЛЯ И ЭЛЕКТРИКА

Артикул

Название

Примечание

Количество

1

20S-06-31270

PANEL,(FOR CAB)

1

20S-06-31260

PANEL,(FOR CANOPY)

2

01224-70520

SCREW

3

01010-50820

BOLT

4

01220-40820

SCREW

5

01643-30823

WASHER

6

20S-06-21240

GAUGE ASS'Y,(SEE FIG.1421)

7

20S-06-31130

STARTING SWITCH,STARTING

7

08086-20000

SWITCH,STARTING

8

09415-01008

CAP

9

09415-00706

CAP,(FOR CANOPY)

9

205-06-71321

SWITCH,HEATER (FOR CAB)

10

09415-00706

CAP

11

205-06-71331

SWITCH,LAMP

11

205-06-71650

KNOB,LAMP

12

09415-00706

CAP,(FOR CANOPY)

12

205-06-71341

SWITCH,WIPER (FOR CAB)

13

20S-06-21210

ASHTRAY,(FOR CAB)

14

09415-01610

CAP

15

20S-06-21130

BOX,FUSE

16

08040-02000

FUSE, 20A

17

01220-40525

SCREW

18

01220-40520

SCREW

19

01580-10504

NUT

20

01601-20513

WASHER,SPRING

21

01010-50610

BOLT

22

01602-20619

WASHER,SPRING

23

09415-00706

CAP

24

20S-06-21161

PLATE

25

20S-06-21171

PLATE

26

20S-06-21690

SPACER

27

01220-40510

SCREW

28

362-54-23680

WASHER

29

20S-06-21150

PLATE

30

01220-40406

SCREW

31

01601-20410

WASHER,SPRING

32

20S-06-31311

WIRE ASS'Y

33

22W-06-13590

DIODE

34

08040-01000

FUSE, 10A

35

20S-06-21180

CLIP

36

20S-06-31510

RELAY ASS'Y,(FOR ENGINE STOP MOTOR)

37

01010-50610

BOLT

38

01602-20619

WASHER,SPRING

39

20S-06-21380

WIRE

40

09415-02512

CAP,(FOR CANOPY)

41

08037-02512

GROMMET,(FOR CANOPY)

42

09415-01008

CAP,(FOR CANOPY)

43

20T-910-4280

PLATE,(FOR POWER TILT MECH ANGLE)

Выбрано товаров: 48
