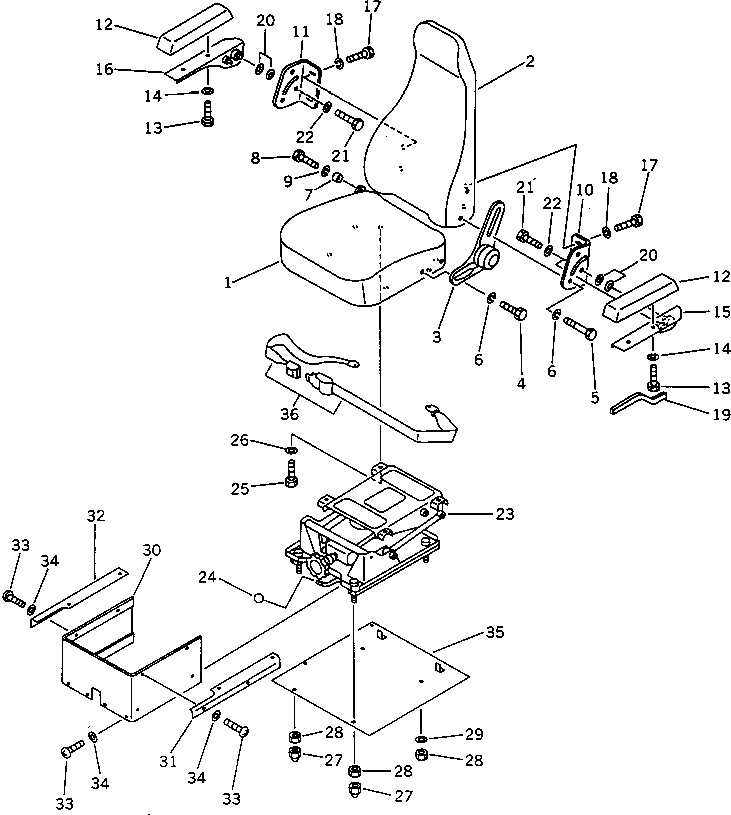

Запчасти Komatsu PC20-6 СИДЕНЬЕ ОПЕРАТОРА (С МАСЛ. АМОРТИЗАТОРАМИ) (OP) ЧАСТИ КОРПУСА

G-1

20T-57-X1101

SEAT GROUP

1

20B-57-21241

CUSHION

2

20T-57-23110

CUSHION,BACK

3

155-57-12181

LEVER

4

01010-51025

BOLT

5

01010-51050

BOLT

6

01602-21030

WASHER,SPRING

7

203-57-21330

SPACER

8

01010-51025

BOLT

9

01602-21030

WASHER,SPRING

10

20T-57-23130

BRACKET,L.H.

11

20T-57-23140

BRACKET,R.H.

12

20T-57-23120

CUSHION

13

01010-50835

BOLT

14

01602-20825

WASHER,SPRING

15

20T-57-23150

SUPPORT,L.H.

16

20T-57-23160

SUPPORT,R.H.

17

01010-51020

BOLT

18

01602-21030

WASHER,SPRING

19

205-57-72590

SEAL

20

175-54-27350

SPRING

21

01010-51220

BOLT

22

01643-31232

WASHER

23

20S-57-12310

SUSPENSION ASS'Y

24

20D-43-13570

KNOB

25

01010-51020

BOLT

26

01602-21030

WASHER,SPRING

27

20T-54-26130

NUT

28

01580-11210

NUT

29

01602-21236

WASHER,SPRING

30

20S-57-12320

COVER

31

20S-57-12330

PLATE,L.H.

32

20S-57-12340

PLATE,R.H.

33

01220-40610

SCREW

34

01641-20608

WASHER

35

20S-57-31140

COVER

G-2

20T-57-X2001

SEAT BELT GROUP

36

20N-57-49125

BELT
