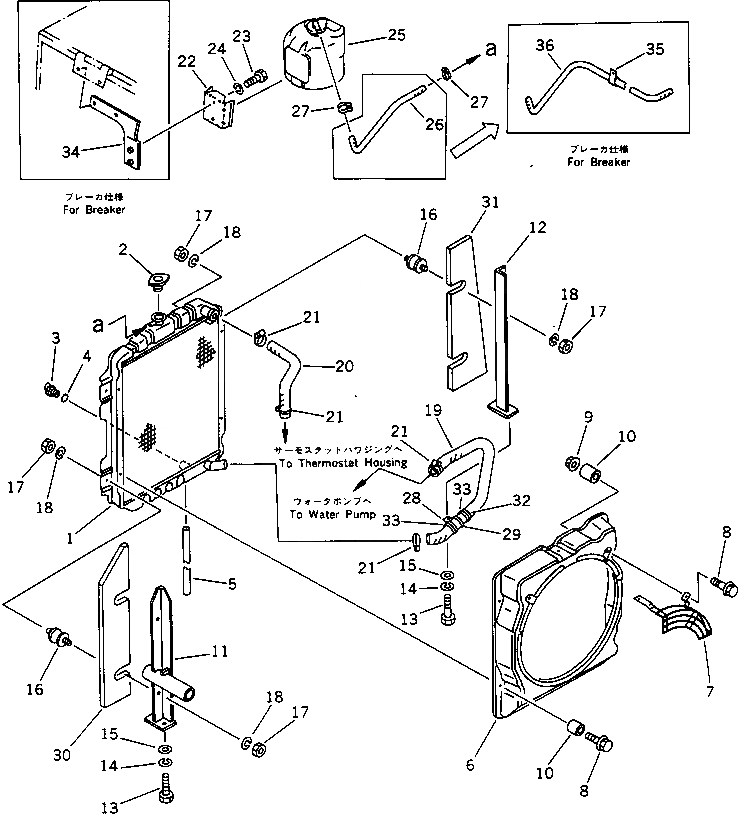

Запчасти Komatsu PC20-6 РАДИАТОР И ТРУБЫ КОМПОНЕНТЫ ДВИГАТЕЛЯ И ЭЛЕКТРИКА

1

20S-03-11212

CORE ASS'Y

2

20S-03-11250

CAP

3

20N-03-11181

PLUG

4

07000-01007

O-RING

5

07270-00821

TUBE

6

20S-03-21110

SHROUD

7

20S-03-21121

NET

8

01435-20814

BOLT

9

01584-00806

NUT

10

20S-03-11270

COLLAR

11

20S-03-31141

BRACKET,L.H.

12

20S-03-31151

BRACKET,R.H.

13

01010-51025

BOLT

14

01602-21030

WASHER,SPRING

15

01643-31032

WASHER

16

20S-03-11330

CUSHION

17

01580-11008

NUT

18

01602-21030

WASHER,SPRING

19

20S-03-31211

HOSE

20

20S-03-12121

HOSE

21

207-09-11110

CLAMP

22

362-03-14120

BRACKET

23

01010-50616

BOLT

24

01602-20619

WASHER,SPRING

25

362-03-14110

TANK

25

362-03-31160

CAP

26

20S-03-21130

HOSE

27

07281-00137

CLAMP

28

20S-03-31240

CLIP

29

20T-62-57690

BAND

30

20S-03-31170

SEAT

31

20S-03-31161

SEAT

32

20S-03-31180

SEAT

33

08034-00519

BAND

G-1

20S-970-X270

SUB TANK GROUP,(FOR BREAKER)

34

20S-970-3710

BRACKET

35

08036-01414

CLIP

36

21E-03-11250

HOSE
