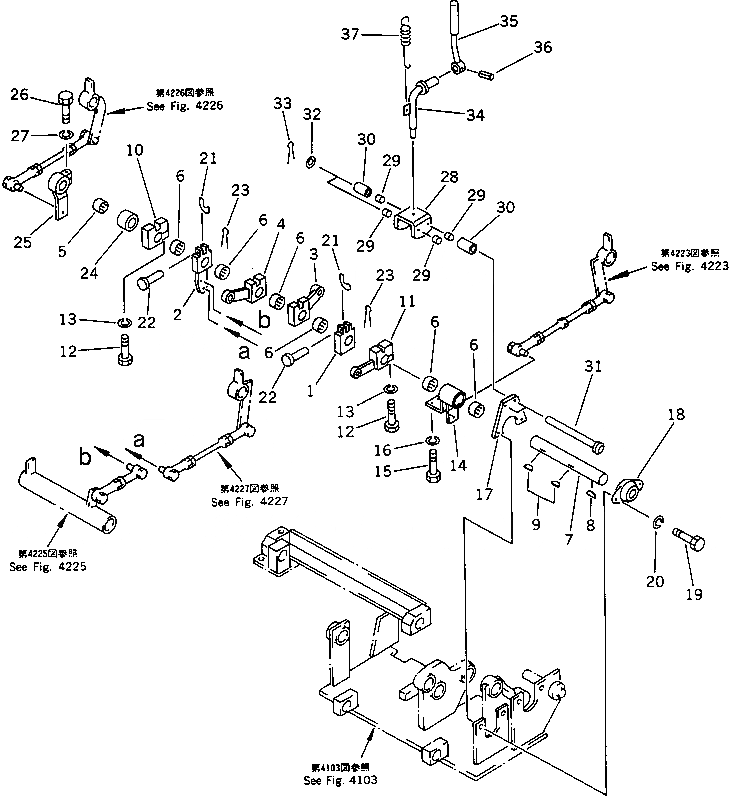

Запчасти Komatsu PC20-6 РЫЧАГ УПРАВЛ-Я ХОДОМ (/) ( WAY SHIFT PATTERN СПЕЦ-Я.)(№9-) СИСТЕМА УПРАВЛЕНИЯ И ОСНОВНАЯ РАМА

1

20S-43-31451

LEVER

2

20T-43-48751

LEVER

3

20S-43-31472

LEVER

4

20S-43-31482

LEVER

5

195-61-34130

BEARING

6

195-43-43190

BEARING

7

20T-43-48720

SHAFT

8

04010-00516

KEY

9

04010-00519

KEY

10

20S-43-31512

LEVER

11

20T-43-48730

LEVER

12

01010-50830

BOLT

13

01602-20825

WASHER,SPRING

14

20T-43-48741

LEVER

15

01010-50820

BOLT

16

01602-20825

WASHER,SPRING

17

20S-43-31570

BRACKET

18

20T-43-31310

BEARING

19

01010-50825

BOLT

20

01602-20825

WASHER,SPRING

21

20S-43-31541

PLATE

22

04205-10625

PIN

23

04050-11612

PIN,COTTER

24

20T-43-48770

SPACER

25

20T-43-48761

LEVER

26

01010-50830

BOLT

27

01602-20825

WASHER,SPRING

28

20S-43-31551

BRACKET

29

20S-43-31560

BUSHING

30

20T-03-11130

SPACER

31

20S-43-31590

PIN

32

01641-21016

WASHER

33

04050-13020

PIN,COTTER

34

20S-43-31191

LEVER

35

20S-43-31220

BOSS

36

04025-00520

PIN,SPRING

37

10E-43-12650

SPRING
