Запчасти Komatsu PC20-6 ГУСЕНИЧНАЯ РАМА ХОДОВАЯ

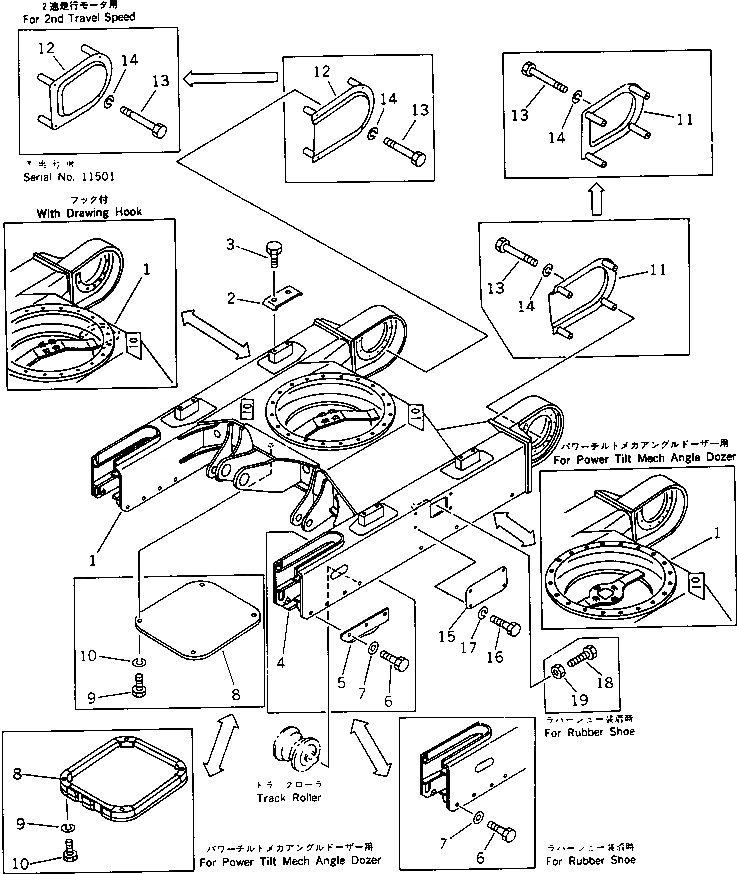

Схема запчастей Komatsu PC20-6 - ГУСЕНИЧНАЯ РАМА ХОДОВАЯ

Артикул

Название

Примечание

Количество

G-1

20S-30-X2100

FRAME GROUP,(WITH DRAWING HOOK)

1

20S-30-32510

FRAME,(WITH DRAWING HOOK)

1

20S-30-31112

FRAME,TRACK

1

20S-30-31111

FRAME,TRACK

1

20S-30-31110

FRAME,TRACK

1

20S-910-3150

FRAME,TRACK (FOR POWER TILT M/ANGLE)

2

20S-30-31190

PLATE

3

01010-51225

BOLT

4

20S-30-31222

GUARD,L.H. INNER AND R.H. OUTER

4

20S-30-31221

GUARD,L.H. INNER AND R.H. OUTER

5

20S-30-31212

GUARD,L.H. OUTER AND R.H. INNER

5

20S-30-31211

GUARD,L.H. OUTER AND R.H. INNER

6

01010-51430

BOLT

6

01010-51425

BOLT,(FOR RUBBER SHOE)

7

01643-31445

WASHER

8

20S-30-21120

COVER

8

20T-910-4140

COVER,(FOR POWER TILT MECH ANGLE)

9

01010-51025

BOLT

9

01010-51045

BOLT,(FOR POWER TILT MECH ANGLE)

10

01602-21030

WASHER,SPRING

11

20S-30-31230

COVER,L.H.

11

20S-30-31330

COVER,L.H. (FOR 2ND TRAVEL SPEED) (OP)

11

20S-30-31230

COVER,L.H. (FOR 2ND TRAVEL SPEED) (OP)

12

20S-30-31240

COVER,R.H.

12

20S-30-31340

COVER,R.H. (FOR 2ND TRAVEL SPEED) (OP)

12

20S-30-31240

COVER,R.H. (FOR 2ND TRAVEL SPEED) (OP)

13

01010-51085

BOLT

13

01010-51095

BOLT,(FOR 2ND TRAVEL SPEED) (OP)

13

01010-51085

BOLT,(FOR 2ND TRAVEL SPEED) (OP)

14

01602-21030

WASHER,SPRING

15

20S-30-31170

COVER

16

01010-51020

BOLT

17

01602-21030

WASHER,SPRING

18

20S-30-31180

BOLT,(FOR RUBBER SHOE)

19

01580-13326

NUT,(FOR RUBBER SHOE)

Выбрано товаров: 35
