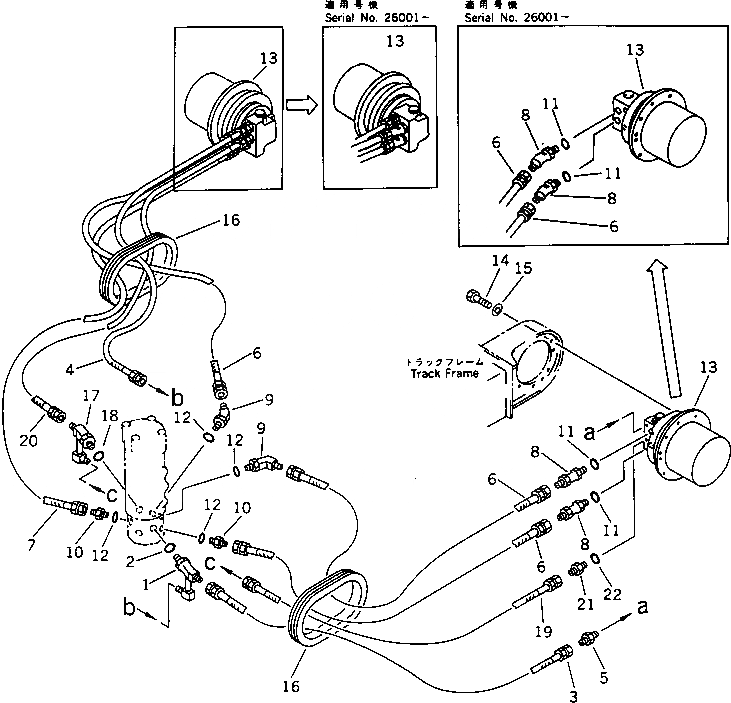

Запчасти Komatsu PC20-6 ГИДРОЛИНИЯ (ПОВОРОТНОЕ СОЕДИНЕНИЕ TO/FROM МОТОР ХОДА) (ДЛЯ 2 СКОРОСТЬ ДВИЖЕНИЯ) (OP) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

1

20S-62-32111

TEE

2

07002-11823

O-RING

3

07182-20310

HOSE

4

07182-20311

HOSE

5

176-62-15490

NIPPLE,(FOR 2ND TRAVEL SPEED) (OP)

6

20S-62-32250

HOSE

6

20S-62-32130

HOSE

7

20S-62-32260

HOSE

7

20S-62-32141

HOSE

8

20S-62-32180

ELBOW,(FOR 2ND TRAVEL SPEED) (OP)

8

20S-62-32190

NIPPLE,(FOR 2ND TRAVEL SPEED) (OP)

9

20R-62-21541

ELBOW

10

20S-62-15591

ELBOW

11

07002-12034

O-RING

12

07002-11823

O-RING

13

20S-60-33101

TRAVEL MOTOR ASS'Y,(FOR 2ND TRAVEL SPEED) (OP)

13

20S-60-33100

TRAVEL MOTOR ASS'Y,(FOR 2ND TRAVEL SPEED) (OP)

13

20S-60-32100

TRAVEL MOTOR ASS'Y,(FOR 2ND TRAVEL SPEED) (OP)

14

01010-51230

BOLT

15

01643-31232

WASHER

16

20S-62-32120

GROMMET

17

20S-62-32210

TEE,(FOR 2ND TRAVEL SPEED) (OP)

18

07002-11823

O-RING,(FOR 2ND TRAVEL SPEED) (OP)

19

07108-20211

HOSE,(FOR 2ND TRAVEL SPEED) (OP)

20

07108-20210

HOSE,(FOR 2ND TRAVEL SPEED) (OP)

21

07230-10210

UNION,(FOR 2ND TRAVEL SPEED) (OP)

22

07002-11423

O-RING,(FOR 2ND TRAVEL SPEED) (OP)
