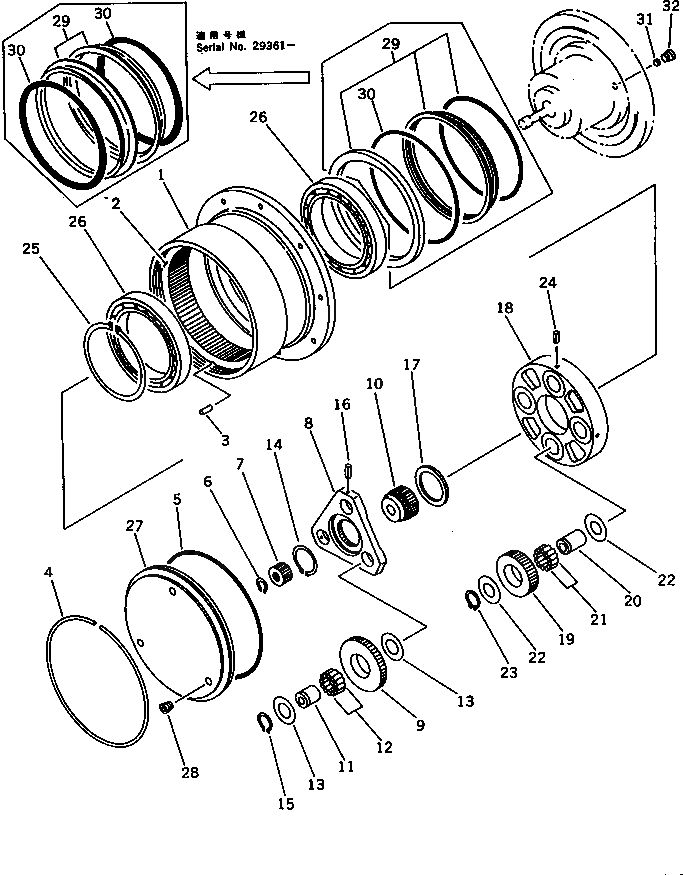

Запчасти Komatsu PC20-6 МОТОР ХОДА (/) (ДЛЯ 2 СКОРОСТЬ ДВИЖЕНИЯ) (OP)(№-) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

20S-60-33101

TRAVEL MOTOR ASS'Y

|$1

20S-60-33100

TRAVEL MOTOR ASS'Y

|$2

FUGHB-3-1191

BODY SUB ASS'Y

|$3

FUGHB-3-1159

BODY SUB ASS'Y

1

BODY

1

BODY

2

FUFRP-1159-05

GEAR

3

FUFRP-825-47

PIN

4

FUFRP-710-13

RING,SNAP

5

FUROA-263

O-RING

5

FUROA-169

O-RING

6

FURA-17

RING,SNAP

7

FUFRP-1159-09

GEAR

|$13

FUGHC-3-2-1159

CARRIER SUB ASS'Y

8

CARRIER

9

GEAR

10

GEAR

11

PIN

12

NEEDLE,NEEDLE

13

FUAS3047

THRUST WASHER,THRUST

14

FURA-35

RING,SNAP

15

FURA-30

RING,SNAP

16

FUPPS-W-4-20

PIN,SPRING

17

FUFRP-710-15

COLLAR,THRUST

|$24

FUGHC-3-1-1109

CARRIER SUB ASS'Y

18

CARRIER

19

GEAR

20

PIN

21

NEEDLE,NEEDLE

22

FUAS3047

THRUST WASHER,THRUST

23

FURA-30

RING,SNAP

24

FUPPS-W-5-20

PIN,SPRING

25

FUFRP-840-23

RING,SNAP

25

FURA-120

RING,SNAP

26

FU120BA16

BEARING

27

FUFRP-1183-02

COVER

27

FUFRP-1109-02

COVER

28

FUTPHA-3-8

PLUG

29

FU175-27-32711

SEAL,FLOATING

29

FUFS-900031

FLOATING SEAL ASS'Y

30

FU100-27-11330

O-RING

30

FUROA-168

O-RING

31

FUFRP-336-2-34

SCREW

32

FUTPH-1-4

PLUG
