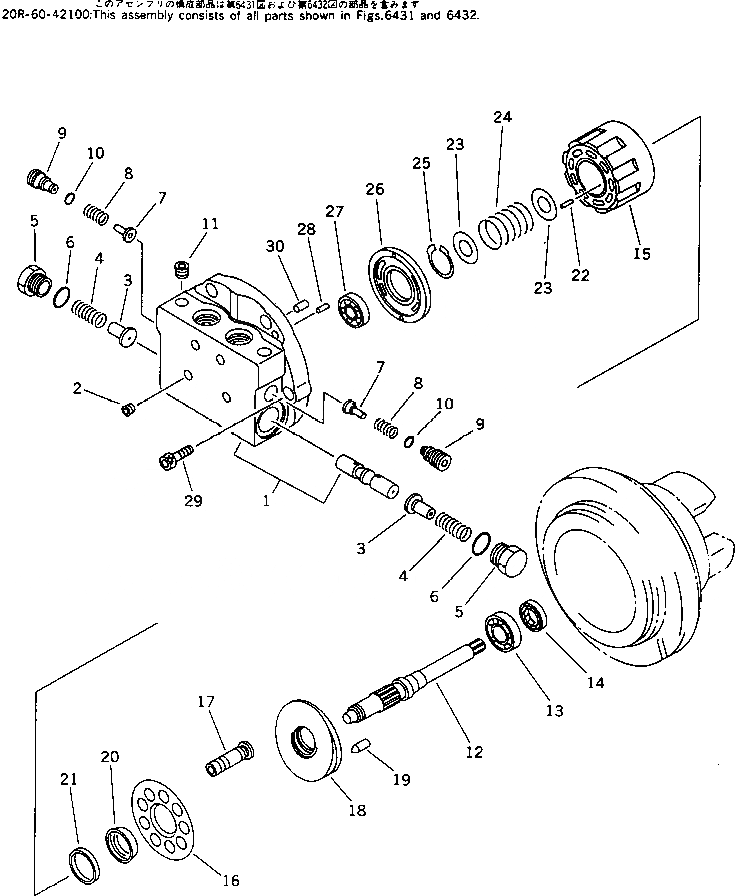

Запчасти Komatsu PC20-6 МОТОР ХОДА (/)(№-) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

20R-60-42100

TRAVEL MOTOR ASS'Y

1

TZ352A210100-C

REAR FLANGE KIT

2

TZGM1-8

PLUG

3

TZ300A2052-00

STOPPER

4

TZ300A2056-00

SPRING

5

TZ300A2051-00

PLUG

6

TZJB2401-P22-9

O-RING (KIT)

7

TZ300A2054-00

VALVE

8

TZ300A2055-00

SPRING

9

TZ300A2053-00

PLUG

10

07000-12012

O-RING (KIT)

11

TZGM1-4

PLUG

12

TZ310B2002-00

SHAFT

13

06000-06203

BEARING,BALL

14

TZ15Z-17-35-8

SEAL,OIL (KIT)

15

TZ550A2004-00

BLOCK,CYLINDER

16

TZ550A2007-00

PLATE,RETAINER

17

TZ550A2105-00

PISTON SHOE ASS'Y,(9PIS)

18

TZ550A200300-A

PLATE,SWASH

19

TZ300A2017-00

PIN

20

TZ300A2008-00

BALL,THRUST

21

TZ550A2011-00

WASHER KIT,(12KINDS)

22

TZJB1354-2-12

PIN

23

TZ300A2010-00

WASHER

24

TZ550A2014-00

SPRING

25

TZ1RTW-32

RING,SNAP

26

TZ550A2009-00

PLATE,TIMING

27

06000-06201

BEARING,BALL

28

TZJB1354-4-10

PIN

29

01252-30620

BOLT

30

TZJB1354-8-20

PIN
